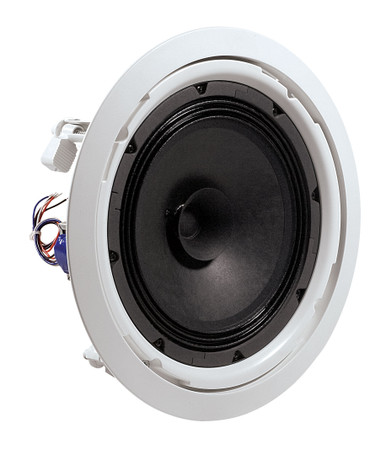

Brand JBL
Model 8128
Type 8″ Ceiling Speaker
Drivers 8 in (200 mm), Full-range Driver
Frequency Range 50 Hz 16 kHz
Sensitivity 97 dB (1 kHz 8 kHz)
Coverage Angle 90 conical
Transformer Taps 6W, 3W, 1.5W (0.75W at 70V only)
Input Connectors Bare wires
Dimensions (Diameter x Depth) 11.3 in (287mm) x 4.1in (105mm)
Weight 3lb (1.4kg)
Included Accessories Sculpted Grille
Optional Accessories MTC-8124C C-ring, MTC-Rail tile rails
Power Rating See transformer taps
Maximum SPL (1m) 105 dB (top 70V/100V tap)
Color White
Backcan No
Baffle/Rim Plastic
Ceiling Cutout Size 260 mm diameter (10.1 in)
Plenum Usage Not intended for use in return air plenums
8 in (200 mm), Full-range Driver
Frequency Range 50 Hz 16 kHz Sensitivity 97 dB (1 kHz 8 kHz) Coverage Angle 90 conical Transformer Taps 6W, 3W, 1.5W (0.75W at 70V only)
Input Connectors Bare wires
Dimensions (Diameter x Depth) 11.3 in (287mm) x 4.1in (105mm) Weight 3lb (1.4kg) Included Accessories Sculpted Grille Optional Accessories
Power Rating See transformer taps Maximum SPL (1m) 105 dB (top 70V/100V tap) Color White Backcan No Baffle/Rim Plastic Ceiling Cutout Size 260 mm diameter (10.1 in) Plenum Usage
