Device Type Video/audio/serial extender
Form Factor In-wall mountable
Color Black, white
Connectivity Technology Wired
Data Link Protocol RS-232, HDMI, HDBaseT
Max Resolution 4096 x 2160 @ 60 Hz
Max Transfer Distance 328 ft
Compliant Standards HDCP 2.2, FCC
Interfaces 2 x HDMI (input) – 19 pin HDMI Type A 1 x HDBaseT 1 x RS-232 – terminal block
Included Accessories Faceplate
Weight 6.35 oz, 0.9 lb (0.4 kg)
Service & Support Limited warranty – parts and labor – 10 years
Min Operating Temperature 32 F
Max Operating Temperature 122 F
Humidity Range Operating 20 – 90% (non-condensing)
Package Weight 0.9 lb, 2.285 lb
Box Dimensions (LxWxH) 8.7 x 7.3 x 2.9″, 11.15 x 7.4 x 3″
Video Resolution 4096 x 2160 @ 24/25/30/50/60 Hz 3840 x 2160 @ 24/25/30/50/60 Hz 2048 x 1080p 1080p @ 23.98/24/25/29.97/30/50/59.94/60 Hz 1080i @ 50/59.94/60Hz 720p @ 50/59.94/60 Hz 576p, 576i, 480p, 480i
VESA 2560 x 2048 / 1600 2048 x 1536 1920 x 1200 1680 x 1050 1600 x 1200 / 900 1440 x 900 1400 x 1050 1366 x 768 1360 x 768 1280 x 1024 / 800 / 768 1152 x 768 1024 x 768 800 x 600 640 x 480
Color Space YCbCr, RGB
Chroma Subsampling 4:4:4, 4:2:2, 4:2:0
Color Depth 8-bit, 10-bit, 12-bit
Analog Audio Input Formats: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Sample Rate 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Bit Rate Up to 24-bit
Distance Cat5e/6 @ 4K: Up to 230′ (70 m) Cat6a/7 @ 4K: Up to 328′ (100 m) Cat5e/6 @ 1080p: Up to 328′ (100 m) HDMI In/Out @ 4K: Up to 15′ (5 m) HDMI In/Out @ 1080p: Up to 30′ (10 m)
Signal Bandwidth: 10.2 Gbps CEC: Pass-through HDCP: Supports up to 2.2
Certification Unit: CE, FCC Power Supply: CE, FCC, RoHS, cULus, RCM, CCC
Temperature Operating: 32 to 122 F (0 to 50 C) Storage: -4 to 140 F (-20 to 60 C) Humidity: 20 to 90%, Non-condensing
Power Consumption: 15.2 W (When paired with TX) Supply Input: 100~240 VAC, 50/60 Hz Supply Output: 48 VDC /0.83 A
Dimensions Without Rack Ears: 0.9 x 4.3 x 5.0″ (25 x 109 x 127 mm) With Rack Ears:1.1 x 4.7 x 5.0″ (27 x 119 x 127 mm)
4K/UHD capability with 4 2:0 chroma subsampling

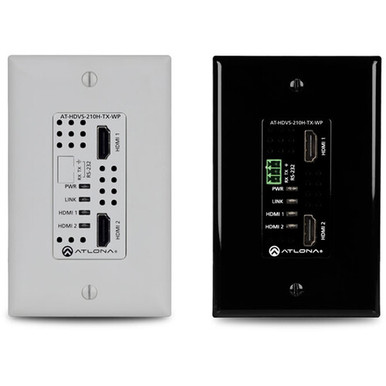

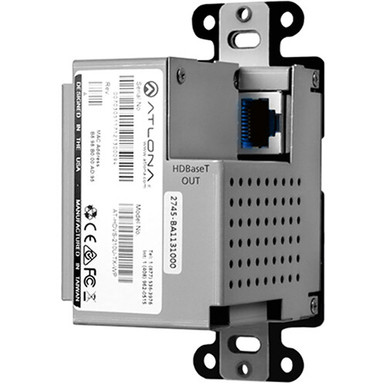

Atlona AT-HDVS-210H Overview Atlona 4K UHD 2×1 HDBaseT Wall Plate Switcher with Dual HDMI Inputs
Atlona AT-HDVS-210H Overview 2×1 HDBaseTTM switcher with HDMI inputs
HDBaseT transmitter for AV, power, and control 4K/UHD capability with 4:2:0 chroma subsampling
Atlona AT-HDVS-210H Overview Remotely powered via PoE
Atlona AT-HDVS-210H Overview Automatic input selection and automatic display control TCP/IP and RS-232 control
All-in-one switcher, controller, and extender
The HDVS-210H-TX-WP combines the benefits of auto-switching, integrated display control, and HDBaseT signal transmission. It also enables input selection, volume, and display on/off control from external RS-232 or TCP/IP commands. The HDVS-210H-TX-WP incorporates many popular integration convenience features while delivering excellent value for classrooms, huddle rooms, and meeting spaces. Automatic display control
The HDVS-210H-TX-WP automatically selects an input source based on detection of the 5 volt hot plug detect (HPD) signal, as well as active video. This ensures reliable auto-switching operation for all video sources, including DVRs, DisplayPort / Mini DisplayPort adapters, and other devices that always maintain the HPD line at the 5 volt “high” state but may not be delivering active video.

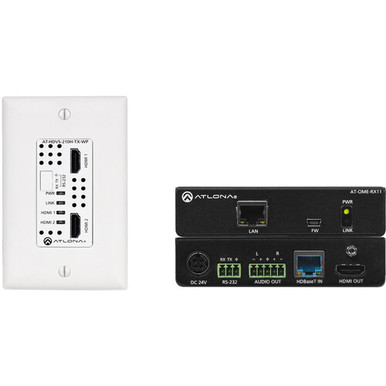

Atlona 4K/UHD HDMI over HDBaseT Receiver with Ethernet, Control, & PoE (328′)
Atlona AT-HDVS-210H Overview Compatible with Ultra High Definition sources and displays
Atlona AT-HDVS-210H Overview Full support of 4K/UHD streaming services and playback devices HDCP 2.2 Compliant
Atlona AT-HDVS-210H Overview Adheres to latest specification for High-bandwidth Digital Content Protection
Atlona AT-HDVS-210H Overview Allows protected content stream to pass between devices
Atlona AT-HDVS-210H Overview PSE Power Sourcing Equipment
Uses external power supply (included) to power remote PoE-compatible HDVS series transmitters over HDBaseT
Atlona AT-HDVS-210H Overview Eliminates the need for the receiver to be powered remotely or by a power-injection device, multiple cable runs between source, control system, router, and display
Atlona AT-HDVS-210H Overview AV, Ethernet, Power, and Control over HDBaseT
Receives 4K/UHD video, audio, 100BaseT Ethernet, power, and control through a single cable
Extended Distance HDMI Extension Receives HDMI signals up to 328′ @ 1080p with Cat5e/6 or 4K/UHD using Cat6a/7 cable
Extended Distance HDMI Extension Uses easy-to-integrate category cable for low-cost, reliable system installation
Extended Distance HDMI Extension Extends RS-232, CEC, and Ethernet Control Signals
Extended Distance HDMI Extension Control signals travel over HDBaseT link to device for maximum control system flexibility
Extended Distance HDMI Extension Simplifies integration of source, control system, and display. Rear Panel I/O Connectors
Extended Distance HDMI Extension Placement of ports on rear panel simplifies wire management
Multi-Channel Audio Compliant Supports PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, DTS-HD Master Audio, DTS:X
Allows any multi-channel audio stream to be used within a professional audio system Field Updatable Firmware
Front panel USB port provides an easy means for kit upgrades
Ensures long term system return on investment
Front Panel Power and Link Status LEDs
LED indicators provide power and HDBaseT link status information
Multi-Channel Audio Compliant Low-Profile 1″ High Quarter-Rack Enclosure Width
Multi-Channel Audio Compliant Easy installation into confined spaces behind displays and above projectors
Multi-Channel Audio Compliant Keeps devices out of sight when placed in public spaces Atlona AT-HDVS-210HSpecs General Device Type
Video/audio/serial extender Form Factor In-wall mountable Color Black, white Networking Connectivity Technology Wired Data Link Protocol
RS-232, HDMI, HDBaseT Max Resolution 4096 x 2160 @ 60 Hz Max Transfer Distance 328 ft Features
Multi-Channel Audio Compliant HDCP compliant, HDBaseT technology Compliant Standards HDCP 2.2 Expansion / Connectivity Interfaces
2 x HDMI (input) 19 pin HDMI Type A 1 x HDBaseT
1 x RS-232 terminal block Miscellaneous Included Accessories Faceplate Compliant Standards FCC
Multi-Channel Audio Compliant Dimensions & Weight Weight 6.35 oz Manufacturer Warranty Service & Support
Multi-Channel Audio Compliant Limited warranty parts and labor – 10 years Environmental Parameters
Min Operating Temperature 32 F Max Operating Temperature 122 F Humidity Range Operating
Min Operating Temperature 32 F 20 90% (non-condensing) Packaging Info Package Weight 0.9 lb
Min Operating Temperature 32 F Box Dimensions (LxWxH) 8.7 x 7.3 x 2.9″ Atlona AT-HDVS-210HSpecs, (LxWxH) 11.15 x 7.4 x 3″
Min Operating Temperature 32 F Color Space YCbCr, RGB, Depth 8-bit, 10-bit, 12-bit
Min Operating Temperature 32 F Chroma Subsampling 4:4:4, 4:2:2, 4:2:0
Analog Audio Input Formats PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X Sample Rate 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz Bit Rate Up to 24-bit Distance
Cat5e/6 @ 4K Up to 230′ (70 m)
Cat6a/7 @ 4K Up to 328′ (100 m)
Cat5e/6 @ 1080p Up to 328′ (100 m)
Min Operating Temperature 32 F HDMI In/Out @ 4K: Up to 15′ (5 m), In/Out @ 1080p: Up to 30′ (10 m) Signal
Min Operating Temperature 32 F Bandwidth 10.2 Gbps
Min Operating Temperature 32 F CEC Pass-through
Min Operating Temperature 32 F HDCP Supports up to 2.2 Certification
Min Operating Temperature 32 F Unit CE, FCC
Min Operating Temperature 32 F Power Supply CE, FCC, RoHS, cULus, RCM, CCC Temperature
Min Operating Temperature 32 F Operating 32 to 122 F (0 to 50 C)
Min Operating Temperature 32 F Storage -4 to 140 F (-20 to 60 C)
Min Operating Temperature 32 F Humidity 20 to 90%, Non-condensing Power
Min Operating Temperature 32 F Consumption 15.2 W (When paired with TX)
Min Operating Temperature 32 F Supply Input 100~240 VAC, 50/60 Hz
Min Operating Temperature 32 F Supply Output 48 VDC /0.83 A Dimensions Without Rack Ears: 0.9 x 4.3 x 5.0″ (25 x 109 x 127 mm) With Rack Ears:1.1 x 4.7 x 5.0″ (27 x 119 x 127 mm) Weight 0.9 lb (0.4 kg) Packaging Info Package Weight 2.285 lb
