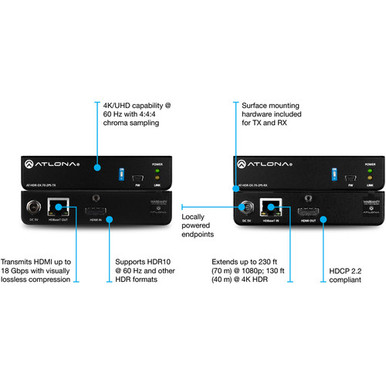

Transmit up to DCI 4K/60 and HDR content with visually lossless compression using the Atlona 4K HDR HDMI Over HDBaseT Transmitter & Receiver Kit. The extender applies minimal compression and carries content at data rates from 10 to 18 Gbps. This allows transmission of DCI 4K video at 60 Hz and 4:4:4 sampling or 4K HDR10 video at 60 Hz over a single Cat 5e – Cat 7 cable, enabling you to connect 4K and HDR sources and displays. At the same time, the extender supports all audio and color space formats supported by the HDMI 2.0b specification. Moreover, it is capable of passing metadata for HDR content.
4K / 4:4:4 Sampling / HDR
- DCI and UHD 4K capability at 60 Hz with 4:4:4 chroma sampling
- Compatible with 4K HDR10 at 60 Hz and Dolby Vision at 30 Hz
- Ideal for DCI/UHD and HDR-capable sources and displays
- Supports video resolutions, audio formats, and color space formats in the HDMI 2.0b specification
HDCP 2.2 Compliant
- Allows protected content streams to pass between devices
Up to 230 ft Extension
- Extend 4K video up to 130 ft and 1080p up to 230 ft
Visually Lossless Compression
- HDBaseT transmission of HDMI signals at up to 18 Gbps using very light video compression with no latency
Multi-Channel Audio Compliant
- Supports PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, DTS-HD Master Audio, and DTS:X
- Allows any multi-channel audio stream to be used within a professional audio system
HDBaseT Link Status Testing
- Free software utility available for download to test the integrity of the HDBaseT cable link between the transmitter and the receiver
- Provides real-time link status, plus detailed HDBaseT and HDMI signal information
- Quick, easy verification or troubleshooting of RJ45 termination or twisted pair cable quality
Rear Panel I/O Connectors
- Rear panel ports allow for simplified cable management and less clutter
Field-Updatable Firmware
- Front panel USB port for device updates
Power and Link Status LEDs
- LED indicators provide power and HDBaseT link status information
Low-Profile
- 1″-high, quarter-rack-width enclosure
- Keeps devices out of sight when placed in public spaces
Atlona AT-HDR-EX-70 Specs
Supported Resolutions 4096 x 2160 at 24/25/30/50/60 Hz, 3840 x 2160 at 24/25/30/50/60 Hz, 2048 x 1080p, 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 Hz, 1920 x 1080i at 50/59.94/60 Hz, 1280 x 720p at 50/59.94/60 Hz, 576p/576i, 480p/480i VESA:
2560 x 2048, 2560 x 1600, 2048 x 1536, 1920 x 1200, 1680 x 1050, 1600 x 1200, 1600 x 900, 1440 x 900, 1400 x 1050, 1366 x 768, 1360 x 768, 1280 x 1024, 1280 x 800, 1280 x 768, 1152 x 768, 1024 x 768, 800 x 600, 640 x 480Color Space YUV, RGB Chroma Subsampling 4:4:4, 4:2:2, 4:2:0 Color Depth 8-bit, 10-bit, 12-bit HDR 4K HDR10 at 60 Hz and Dolby Vision at 30 Hz Audio Formats PCM 2 channel, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X Audio Sample Rate 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz Audio Bit Rate Up to 24-bit Distance 4K over Cat 6a/7: Up to 130 ft (40 m)
4K over Cat 5e/6: Up to 115 ft (35 m)
4K HDMI I/O: Up to 15 ft (5 m)
1080p over Cat 6a/7: Up to 230 ft (70 m)
1080p over Cat 5e/6: Up to 200 ft (60 m)
1080p HDMI I/O: Up to 30 ft (10 m)Bandwidth 18 Gbps CEC Yes HDCP 2.2 Certification CE, FCC Operating Temperature 32 to 122°F (0 to 50°C) Humidity 20 to 90%, non-condensing Storage Temperature -4 to 140°F (-20 to 60°C) Power Consumption Transmitter: 4 W
Receiver: 5.9 WIdle Consumption Transmitter: 1.32 W
Receiver: 3.55 WPower Supply Input: 100 – 240 VAC, 50/60 Hz
Output: 5 VDCDimensions 1 x 4.3 x 3″ (25 x 11 x 7.6 cm) Weight 0.5 lb (0.22 kg) Packaging InfoPackage Weight 3.1 lb Box Dimensions (LxWxH) 11.2 x 7.2 x 3.2″
