Product Type Amplifier
Audio Channels Stereo
Functions Amplifier
Audio Specifications Amplifier – Response Bandwidth – 20 – 20000 Hz – SNR – 90 dB – THD – 0.1%
Amplifier Output Details 60 Watt – 4 Ohm – 2 channels (main) 60 Watt – 8 Ohm – 2 channels (main) 120 Watt – 1 channels (70/100V)
Connectors Balanced/unbalanced audio input (terminal block) – rear Audio line-out (terminal block) – rear Trigger (terminal block) – rear Speakers output (terminal block) – rear Network (RJ-45) – rear USB (mini-USB Type B) – front
ENERGY STAR Certified Yes
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 120 Watt
Power Consumption Stand by 0.5 Watt
Service & Support Limited warranty – 10 years
Width 8.7 in
Depth 13 in
Height 1.7 in
Weight 19.84 lbs
Package Weight 11.8 lb
Box Dimensions (LxWxH) 18.3 x 11.5 x 4.3″

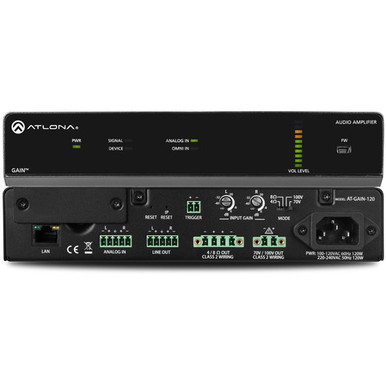

Atlona GAIN-120 Overview The Atlona Gain 120 is a compact power amplifier designed for low or high impedance applications. In addition to the amplified speaker output, a line level audio output allows the incoming audio to be fed into an additional amplifier or audio system. Key Features
Selectable low or high impedance operation Automatic standby
Rear panel input level controls
Atlona GAIN-120 Overview Balanced line level output for pass-through to an additional amplifier or audio system
Atlona GAIN-120 Overview Integrated five-band equalizer
Atlona GAIN-120 Overview TCP/IP control of volume level, muting, and EQ Atlona GAIN-120 Specs Product Type Amplifier
Audio Specifications Amplifier Response Bandwidth – 20 – 20000 Hz – SNR – 90 dB – THD – 0.1%
Amplifier Output Details 60 Watt 4 Ohm – 2 channels (main), 8 Ohm – 2 channels (main)
Amplifier Output Details 120 Watt 1 channels (70/100V) Features
Amplifier Output Details D-CLASS amplifier, independent gain control for each channel, 70V/100V or 4/8 Ohm operation Connections Connectors
Balanced/unbalanced audio input (terminal block) rear
Audio line-out (terminal block) rear
Trigger (terminal block) rear
Speakers output (terminal block) rear
Network (RJ-45) rear
USB (mini-USB Type B) front Environmental Standards ENERGY STAR Certified Yes Power
Amplifier Output Details Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 120 Watt Power Consumption Stand by 0.5 Watt Manufacturer Warranty Service & Support
Power Consumption Operational 120 Watt Limited warranty 10 years
Power Consumption Operational 120 Watt Dimensions & Weight Width 8.7 in Depth 13 in Height 1.7 in Weight 19.84 lbs Packaging Info Package Weight 11.8 lb
Power Consumption Operational 120 Watt Box Dimensions (LxWxH) 18.3 x 11.5 x 4.3″
