Product Type Amplifier
Functions Amplifier
Audio Specifications Amplifier – Response Bandwidth – 20 – 20000 Hz – SNR – 95 dB – THD – 0.1%
Amplifier Output Details 30 Watt – 4-8 Ohm – 2 channels 60 Watt – 1 channels (24/70/100V)
Bass Control Yes
Treble Control Yes
Connectors Balanced audio input (terminal block) – rear Audio line-in (RCA x 2) – rear Network (RJ-45) – rear Serial (terminal block) – rear
ENERGY STAR Certified Yes
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 60 Watt
Power Consumption Stand by 1.2 Watt
Service & Support Limited warranty – 10 years
Width 5 in
Depth 8 in
Height 1.7 in
Weight 3.15 lbs
Package Weight 5.395 lb
Box Dimensions (LxWxH) 12 x 9.3 x 4.3″

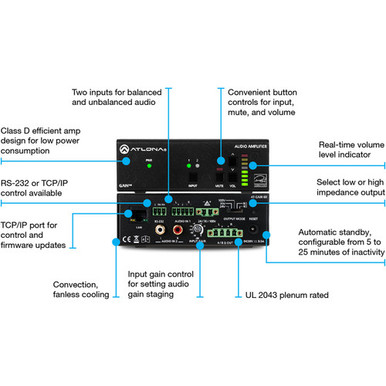

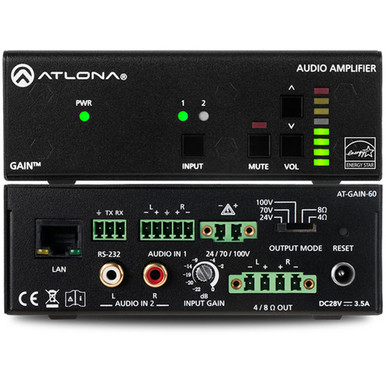

Atlona Gain 60 Overview The Atlona Gain 60 is a compact power amplifier designed for low or high impedance applications. This class D amplifier is energy efficient, and is also convection cooled without the need for fans. Key Features
Front panel button controls for input selection, mute, and volume control
Atlona Gain 60 Overview Front panel signal status LEDs for power, input selection, mute, and real-time volume level
Atlona Gain 60 Overview Compact, rack-mountable enclosure Atlona Gain 60Specs Product Type Amplifier
Audio Specifications Amplifier Response Bandwidth – 20 – 20000 Hz – SNR – 95 dB – THD – 0.1%
Amplifier Output Details 30 Watt 4-8 Ohm – 2 channels
Amplifier Output Details 60 Watt 1 channels (24/70/100V) Bass Control Yes Treble Control Yes Features
Amplifier Output Details Thermal protection, overload protection, short circuit protection, rack mountable, D-CLASS amplifier, 24V/70V/100V or 4/8 Ohm operation Connections Connectors
Balanced audio input (terminal block) rear
Audio line-in (RCA x 2) rear
Network (RJ-45) rear
Serial (terminal block) rear Environmental Standards ENERGY STAR Certified Yes Power
Amplifier Output Details Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 60 Watt Power Consumption Stand by 1.2 Watt Manufacturer Warranty Service & Support
Power Consumption Operational 60 Watt Limited warranty 10 years
Power Consumption Operational 60 Watt Dimensions & Weight Width 5 in Depth 8 in Height 1.7 in Weight 3.15 lbs Packaging Info Package Weight 5.395 lb
Power Consumption Operational 60 Watt Box Dimensions (LxWxH) 12 x 9.3 x 4.3″
