Professional 2×8 HDBaseT Distribution for Long-Distance HDMI

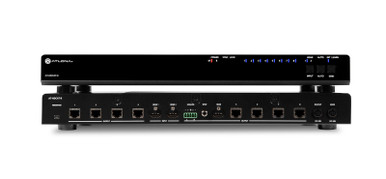

The Atlona AT-HDCAT-8 is a commercial-grade Distribution Amplifier (DA) designed to take two HDMI inputs and send the signal to eight individual displays using HDBaseT technology. This powerful solution allows for video, audio, and control signals to be reliably transmitted up to 70 meters (230 feet) over a single, inexpensive CAT5e/6/7 cable to compatible HDBaseT receivers (receivers sold separately)

This system is perfect for larger commercial environments like retail stores, sports bars, corporate lobbies, and houses of worship that require multiple displays showing synchronized content from a central location

Key Features & Technical Specifications

• Input/Output: 2 HDMI Inputs / 8 HDBaseT Outputs.

• Transmission Standard: HDBaseT (Sends video, audio, and control over a single CAT cable).³





• Distance: Up to 230{ ft} (70{ m}) over CAT6/7.

• Video Support: Supports resolutions up to 1080p, and deep color.

• EDID Management: Features robust EDID management to ensure smooth communication between sources and all connected displays.

• Control: Includes RS-232 and IR control pass-through for managing sources and displays remotely.

• Daisy Chain: Supports cascading multiple units for even larger distribution systems.
