Inputs 1 x HDMI (HDMI 2.0) Female
Embedded Audio HDMI/LAN (RJ45): 8-Channel
Outputs 4x RJ45 (HDBaseT)
Video Format HDMI Input (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV) DCI 4K: 24/25/30/50/60 fps UHD 4K: 24/25/30/50/60 fps 1080p: 23.98/24/25/29.97/30/50/60 fps 1080i: 50/60 fps 720p: 30/50/60 fps 576p: 50 fps 576i: 25/50 fps 480p: 60 fp, HDMI Input (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV) DCI 4K: 24/25/30/50/60 fps UHD 4K: 24/25/30/50/60 fps 1080p: 23.98/24/25/29.97/30/50/60 fps 1080i: 50/60 fps 720p: 30/50/60 fps 576p: 50 fps 576i: 25/50 fps 480p: 60 fps
Other I/O 1x RJ45 (10/100 Mbps Ethernet) 5x Block 5-Pin (RS-232) Input/Output 1x Block 5-Pin Output 1x USB-C (Firmware) Input
HDR Support Yes, HDR10/Dolby Vision/Hybrid Log Gamma
HDCP Support Yes, Version 2.2
EDID Support Yes
Audio Decoding DTS Digital Surround, DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, LPCM, PCM
Max Transmission Distance DCI 4K at 60 Hz: 130′ / 39.6 m (via Cat 6/6a/7) 1080p at 60 Hz: 230′ / 70.1 m (via Cat 6/6a/7)
Audio Channels 7.1-Channel
Bandwidth 20 Hz to 20 kHz at 0.5 dB
Gain 4 to 19 dB
Signal-to-Noise Ratio 105 dB at 0.1 MHz (Video)
Power I/O 1x Block 2-Pin (48 VDC) Input
Power Consumption (70.6 W)
ESD Protection No
Rack Form Factor 1 RU
Certifications CE, RoHS, FCC
Operating Conditions 32 to 122 F / 0 to 50 C at 20 to 90% Humidity
Storage Conditions -4 to 140 F / -20 to 60 C
Dimensions 10.0 x 8.6 x 1.7″ / 254.0 x 219.5 x 44.0 mm
Weight 3.7 lb / 1.7 kg
Package Weight 6.53 lb
Box Dimensions (LxWxH) 16.7 x 12.3 x 5.4″

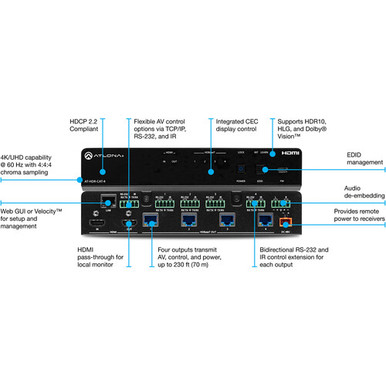

DCI 4K capability at 60 fps with 4 4:4 chroma sampling
High dynamic range format support includes HDR10, HLG, and Dolby Vision, and multichannel audio pass-through is also supported. The unit works with TCP/IP or RS-232 control systems with bidirectional RS-232 and IR, and it is housed in a low-profile enclosure with an external universal power supply. Features at a Glance
Pass-through HDMI output to support local monitor
Atlona HDR-CAT Overview DCI 4K capability at 60 fps with 4:4:4 chroma sampling
Atlona HDR-CAT Overview Supports HDR10, HLG, and Dolby Vision HDR formats
Atlona HDR-CAT Overview Visually lossless compression with no latency to enable HDR and 4K/60 video signal extension over HDBaseT

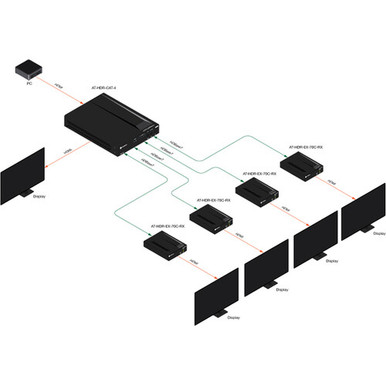

Atlona HDR-CAT Overview HDBaseT outputs extend HDMI, control signals, and power up to 130′ for 4K HDR or 230′ for 1080p with Cat 6/6A/7
Atlona HDR-CAT Overview Bidirectional RS-232 and IR control extension for each output
Atlona HDR-CAT Overview Remotely powers compatible receivers over HDBaseT
CEC display control sends display power on/off commands over HDBaseT using the power button, IP, or RS232
Atlona HDR-CAT Overview Audio de-embedding to balanced analog output with volume control for integration with a separate audio system
Atlona HDR-CAT Overview HDBaseT link test verifies cable, termination, and link quality for more reliable installations
Atlona HDR-CAT Overview Multichannel audio pass-through
Atlona HDR-CAT Overview Cascade up to eight units to expand the system without compromising performance Compliant with HDCP 2.2
Atlona HDR-CAT Overview Manages EDID communications with the source through a display s EDID or internally stored EDID
Intuitive GUI-based configuration using integrated web server
Atlona HDR-CAT Overview Flexible control options via TCP/IP, RS-232, and IR with Atlona Velocity or third-party control systems
Atlona HDR-CAT Overview Easy to configure and manage with AMS (Atlona Management System)

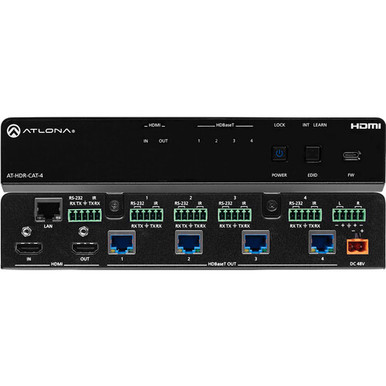

Atlona HDR-CAT Overview The front panel includes LEDs for power, HDBaseT link, and HDMI signal status, as well as power and EDID control buttons
Compatible with AT-UHD-EX receivers for resolutions up to 4K60 4:2:0
Atlona HDR-CAT Overview Low-profile enclosure for easy installation under a table or in furniture Atlona HDR-CATSpecs Inputs
1 x HDMI (HDMI 2.0) Female Embedded Audio
HDMI/LAN (RJ45) 8-Channel Outputs 4x RJ45 (HDBaseT), 8-Channel Outputs 4x RJ45 (HDBaseT) Other I/O 1x RJ45 (10/100 Mbps Ethernet) 5x Block 5-Pin (RS-232) Input/Output 1x Block 5-Pin Output
Video Format HDMI Input (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV)
Video Format DCI 4K 24/25/30/50/60 fps
Video Format UHD 4K 24/25/30/50/60 fps
Video Format 1080p 23.98/24/25/29.97/30/50/60 fps
Video Format 1080i 50/60 fps
Video Format 720p 30/50/60 fps
Video Format 576p 50 fps
Video Format 576i 25/50 fps
Video Format 480p 60 fp Interfaces Inputs, 60 fps PC Resolutions
1x USB-C (Firmware) Input Standards
Yes, HDR10/Dolby Vision/Hybrid Log Gamma HDCP Support Yes, Version 2.2 EDID Support Yes
DTS Digital Surround, DTS-HD Master Audio, DTS X, Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, LPCM, PCM Transmission Max Transmission Distance DCI 4K at 60 Hz: 130′ / 39.6 m (via Cat 6/6a/7) 1080p at 60 Hz: 230′ / 70.1 m (via Cat 6/6a/7)
Video Format Audio Channels 7.1-Channel Bandwidth 20 Hz to 20 kHz at 0.5 dB Gain 4 to 19 dB
Signal-to-Noise Ratio 105 dB at 0.1 MHz (Video) Power
Video Format Power I/O 1x Block 2-Pin (48 VDC) Input
Video Format Power Consumption (70.6 W) ESD Protection No General Rack Form Factor 1 RU Certifications CE, RoHS, FCC
Video Format Operating Conditions 32 to 122 F / 0 to 50 C at 20 to 90% Humidity Storage Conditions -4 to 140 F / -20 to 60 C Dimensions 10.0 x 8.6 x 1.7″ / 254.0 x 219.5 x 44.0 mm Weight 3.7 lb / 1.7 kg Packaging Info Package Weight 6.53 lb
Video Format Box Dimensions (LxWxH) 16.7 x 12.3 x 5.4″
