Color Space YUV, RGB
Chroma Subsampling 4:4:4, 4:2:2, 4:2:0
Color Depth 8-, 10-, 12-bit
HDR 4K HDR10 at 60 Hz and Dolby Vision at 30 Hz
Audio Formats PCM 2 channel LPCM 5.1 LPCM 7.1 Dolby Digital DTS 5.1 Dolby Digital Plus Dolby TrueHD DTS-HD Master Audio Dolby Atmos DTS:X
Audio Sample Rate 32 kHz 44.1 kHz 48 kHz 88.2 kHz 96 kHz 176.4 kHz 192 kHz
Audio Bit Rate Up to 24-bit
Distance 4K/HD over Cat 6a/7: Up to 330′ / 100.58 m 4K/HD over Cat 5e/6: Up to 295.00′ / 89.92 m
Bandwidth 18 Gb/s
HDMI 2.0b
CEC Yes
HDCP 2.2
TMDS Clock Frequency Max: 600 MHz
Connectors Transmitter HDMI In: 1 x Type A USB: 1 x Mini -A RS-232 / IR: 1 x 5-pin captive screw HDBaseT: 1 x RJ45 LAN: 1 x RJ45 Optical Out: 1 x TOSLINK Power: 1 x 2-pin captive screw Receiver HDMI Out: 1 x Type A USB: 1 x Mini -A RS-232 / IR: 1 x 6-pin captive screw HDBaseT: 1 x RJ45 LAN: 1 x RJ45 Optical In: 1 x TOSLINK
Indicators & Controls Test Button: 1 x Momentary, Tact-type Test LED: 1 x Tri-color LED (green, amber, red) Power LED: 1 x Green Link LED: 1 x Amber
Certification CE, FCC
Operating Temperature 32 to 122 F (0 to 50 C)
Humidity 20 to 90%, non-condensing
Storage Temperature -4 to 140 F (-20 to 60 C)
Power Consumption Transmitter: 5.25 W Receiver: 7.55 W
Power Supply Input: 100 – 240 VAC, 50/60 Hz Output: 48 VDC, 0.83 A Certification: CE, FCC, cULus, RoHS, CCC, RCM
Dimensions Transmitter: 1.02 x 5.74 x 3.74″ / 2.59 x 14.58 x 9.5 cm Receiver: 1.02 x 5.74 x 3.81″ / 2.59 x 14.58 x 9.68 cm
Weight Transmitter: 0.89 lb / 0.4 kg Receiver: 0.87 lb / 0.4 kg
Package Weight 3.45 lb
Box Dimensions (LxWxH) 13.7 x 8.1 x 2.6″

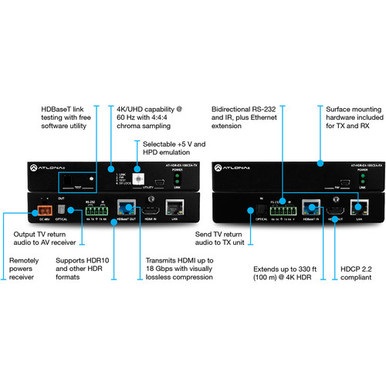

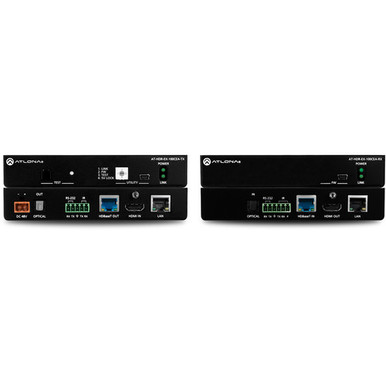

The transmitter/receiver kit passes IR and RS-232 control, as well as passing Metadata for your HDR content. It can transmit up to 330′ when using Cat 6 or better cable, distance is lessened when using Cat 5e cable. An optical audio return (TOSLINK) from television to an AV receiver is supported. The system requires only a single 48-volt power supply connected to the transmitter. 4K / 4:4:4 Sampling / HDR
Atlona AT-HDR-EX Overview DCI and UHD 4K capability at 60 Hz with 4:4:4 chroma sampling
Atlona AT-HDR-EX Overview Compatible with 4K HDR10 at 60 Hz and Dolby Vision at 30 Hz
Atlona AT-HDR-EX Overview Ideal for DCI/UHD and HDR-capable sources and displays
Atlona AT-HDR-EX Overview Supports video resolutions, audio formats, and color space formats in the HDMI 2.0b specification HDCP 2.2 Compliant
Atlona AT-HDR-EX Overview Allows protected content streams to pass between devices Up to 330 ft Extension
Extends 4K and 1080p video and audio up to 330′
HDBaseT transmission of HDMI signals at up to 18 Gb/s using very light video compression with no latency
Multi-Channel Audio Compliant Supports PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, DTS-HD Master Audio, and DTS:X
Allows any multi-channel audio stream to be used within a professional audio system HDBaseT Link Status Testing
Multi-Channel Audio Compliant Free software utility available for download to test the integrity of the HDBaseT cable link between the transmitter and the receiver
Multi-Channel Audio Compliant Provides real-time link status, plus detailed HDBaseT and HDMI signal information
Multi-Channel Audio Compliant Quick, easy verification or troubleshooting of RJ45 termination or twisted pair cable quality Rear Panel I/O Connectors
Multi-Channel Audio Compliant Rear panel ports allow for simplified cable management and less clutter Field-Updatable Firmware
Front panel USB port for device updates
LED indicators provide power and HDBaseT link status information Low-Profile 1″-high, quarter-rack-width enclosure
Power and Link Status LEDs Keeps devices out of sight when placed in public spaces 5 Volt and Hot Plug Detect emulation for HDMI source and sink communications
Power and Link Status LEDs Restores +5 volt and HPD signals lost due to issues at the source or display, as well as faulty or long cables. Enables the essential signal handshaking necessary for the source to deliver video content EDID Support
Supports EDID emulation over the Ethernet cable Atlona AT-HDR-EXSpecs Supported Resolutions Video 4096 x 2160: 60/50/30/25/24 3840 x 2160: 60/50/30/25/24 2048 x 1080p
1920 x 1080p 60/59.94/50/30/29.97/35/24/23.98 1920 x 1080i 60/59.94/50 1280 x 720p at 60/59.94/50 576p/576i 480p/480i VESA 2560 x 2048 2560 x 1600 2048 x 1536 1920 x 1200 1680 x 1050 1600 x 1200 1600 x 900 1440 x 900 1400 x 1050 1366 x 768 1360 x 768 1280 x 1024 1280 x 800 1280 x 768 1152 x 768 1024 x 768 800 x 600 640 x 480
Power and Link Status LEDs Color Space YUV, RGB, Depth 8-, 10-, 12-bit HDR
Power and Link Status LEDs Chroma Subsampling 4:4:4, 4:2:2, 4:2:0
Power and Link Status LEDs 4K HDR10 at 60 Hz and Dolby Vision at 30 Hz
Power and Link Status LEDs Audio Formats PCM 2 channel LPCM 5.1 LPCM 7.1 Dolby Digital DTS 5.1 Dolby Digital Plus Dolby TrueHD DTS-HD Master Audio Dolby Atmos, Sample Rate 32 kHz 44.1 kHz 48 kHz 88.2 kHz 96 kHz 176.4 kHz 192 kHz, Bit Rate Up to 24-bit Distance 4K/HD over Cat 6a/7: Up to 330′ / 100.58 m 4K/HD over Cat 5e/6: Up to 295.00′ / 89.92 m Bandwidth 18 Gb/s HDMI 2.0b CEC Yes HDCP 2.2 TMDS Clock Frequency
Power and Link Status LEDs DTS X
Power and Link Status LEDs Max 600 MHz Connectors Transmitter
Power and Link Status LEDs HDMI In: 1 x Type A, Out: 1 x Type A
Power and Link Status LEDs USB 1 x Mini -A
RS-232 / IR 1 x 5-pin captive screw, 1 x 6-pin captive screw
Power and Link Status LEDs HDBaseT 1 x RJ45
Power and Link Status LEDs LAN 1 x RJ45
Power and Link Status LEDs Optical Out 1 x TOSLINK
Power and Link Status LEDs Power 1 x 2-pin captive screw Receiver
Power and Link Status LEDs Optical In 1 x TOSLINK Indicators & Controls
Power and Link Status LEDs Test Button 1 x Momentary, Tact-type
Power and Link Status LEDs Test LED 1 x Tri-color LED (green, amber, red)
Power and Link Status LEDs Power LED 1 x Green
Power and Link Status LEDs Link LED 1 x Amber Certification CE, FCC
Power and Link Status LEDs Operating Temperature 32 to 122 F (0 to 50 C) Humidity 20 to 90%, non-condensing Storage Temperature -4 to 140 F (-20 to 60 C)
Power Consumption Transmitter 5.25 W
Power Consumption Receiver 7.55 W
Power Supply Input 100 – 240 VAC, 50/60 Hz
Power Supply Output 48 VDC, 0.83 A
Power Supply Certification CE, FCC, cULus, RoHS, CCC, RCM Dimensions
Power Supply Transmitter 1.02 x 5.74 x 3.74″ / 2.59 x 14.58 x 9.5 cm, 0.89 lb / 0.4 kg
Power Supply Receiver 1.02 x 5.74 x 3.81″ / 2.59 x 14.58 x 9.68 cm Weight, 0.87 lb / 0.4 kg Packaging Info Package Weight 3.45 lb
Power Supply Box Dimensions (LxWxH) 13.7 x 8.1 x 2.6″
