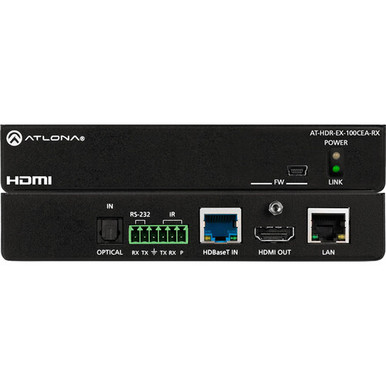

This 4K HDR HDMI Over HDBaseT Receiver from Atlona extends DCI 4K60 video with 4:4:4 chroma sampling and high dynamic range (HDR) data, Ethernet, multi-channel audio, control signals, and power up to 330′ over Cat 6/6A/7 cable. With support for HDR10, HLG, and Dolby Vision, the unit receives RS-232, IR and CEC over HDBaseT and is fully compliant with HDCP 2.2. Encased in a compact enclosure, the receiver features front panel power and link status LEDs and can be powered by the separately available AT-HDR-CAT-4ED distribution amplifier. The unit can be easily mounted behind a monitor or display, above a projector, or on furniture.
Features at a Glance

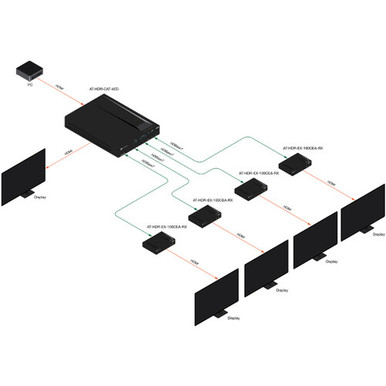

- HDBaseT receiver for use with the AT-HDR-CAT-4ED distribution amplifier
- DCI 4K capability at 60 fps with 4:4:4 chroma sampling
- Supports HDR10, HLG, and Dolby Vision HDR formats
- Features visually lossless compression with no latency to enable HDR and 4K/60 4:4:4 video signal extension over HDBaseT
- HDBaseT input receives HDMI, Ethernet, control signals, and power up to 330′ for 4K HDR and 1080p with Cat 6/6A/7
- Extends bidirectional RS-232 and IR control signals over HDBaseT
- Remotely powered by the AT-HDR-CAT distribution amplifier over HDBaseT
- Compliant with HDCP 2.2, the latest specification for passing protected content between devices
- Multi-channel audio pass-through

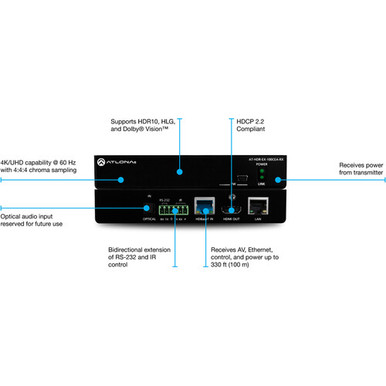

- Front-panel power and link status LEDs
- Front-panel USB port for firmware updates
- Rear-panel connections simplify wire management and save installation time
Atlona HDR-EX-100CEASpecs
| Inputs | |
| Outputs | |
| Other I/O |
Standards
| HDR Support | |
| HDCP Support | |
| EDID Support |
Transmission
| Max Transmission Distance | |
| DTS Compatibility | |
| Dolby Compatibility | |
| Supported Cable Types |
Power
| PoE Support |
General
| Certifications | |
| Operating Conditions | |
| Storage Conditions | |
| Dimensions | |
| Weight |
Packaging Info
| Package Weight | |
| Box Dimensions (LxWxH) |
