Atlona HDR-EX-70C Overview

The 4K HDR HDMI over HDBaseT Receiver from Atlona extends DCI 4K60 video with 4:4:4 chroma sampling and high dynamic range (HDR) data, multi-channel audio, control signals, and power up to 130′ or 1080p60 up to 230′ over Cat 6/6A/7 cable. With support for HDR10, HLG, and Dolby Vision, the unit receives RS-232, IR & CEC over HDBaseT and is fully compliant with HDCP 2.2. Encased in a compact enclosure, the receiver features front-panel power and link status LEDs and is powered by separately available transmitters or distribution amplifiers. The unit can be easily mounted behind a monitor or display, above a projector, or on furniture.

Features at a Glance

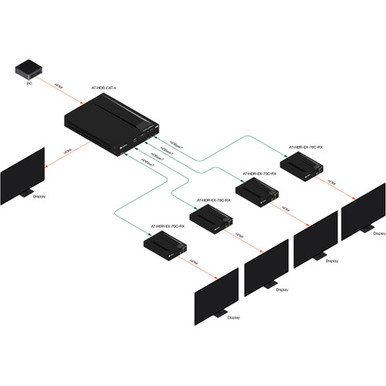

HDBaseT receiver for use with the AT-HDR-CAT-2, AT-HDR-CAT-4, and AT-HDR-CAT-8 distribution amplifiers
DCI 4K capability at 60 fps with 4:4:4 chroma sampling
Supports HDR10, HLG, and Dolby Vision HDR formats
Features visually lossless compression with no latency to enable HDR and 4K/60 4:4:4 video signal extension over HDBaseT
HDBaseT input receives HDMI, control signals, and power up to 130′ for 4K HDR or 230′ for 1080p with Cat 6/6A/7
Extends bidirectional RS-232 and IR control signals over HDBaseT
Remotely powered by the AT-HDR-CAT distribution amplifier over HDBaseT
Compliant with HDCP 2.2, the latest specification for passing protected content between devices
Multi-channel audio pass-through

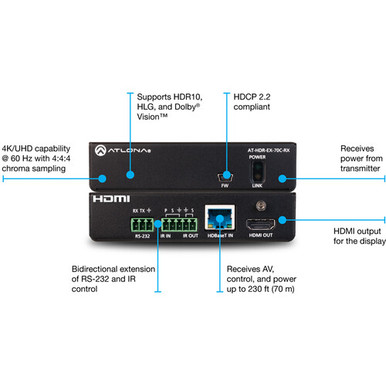

Front-panel power and link status LEDs
Front-panel USB port for firmware updates
Rear-panel connections simplify wire management and save installation time

Atlona HDR-EX-70C Specs

Interfaces

Inputs	1x RJ45 (HDBaseT) Female
Outputs	1x HDMI Female
Embedded Audio Output	HDMI: 8-Channel (per Output) RJ45: 8-Channel (per Output)
Other I/O	1x Block 3-Pin RS-232 Input/Output 1x Block 5-Pin IR Input/Output 1x Mini-USB 2.0 Input

Standards

HDR Support	Yes, HDR10/Dolby Vision/Hybrid Log Gamma
HDCP Support	Yes, Version 2.2

Transmission

Max Transmission Distance	DCI 4K, UHD 4K: 130′ / 39.6 m (via Cat 6/6a/7) 1080p: 115′ / 35.1 m (via Cat 5e)
Video Format	RJ45 Input (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV) DCI 4K: 24/25/30/50/60 fps UHD 4K: 24/25/30/50/60 fps 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 25/29.97/30 fps 720p: 50/59.94/60 fps 576p: 50 fps 576i: 25 fps 480p: 59.94/60 fps 480i: 30 fps HDMI Output (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV) DCI 4K: 24/25/30/50/60 fps UHD 4K: 24/25/30/50/60 fps 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 25/29.97/30 fps 720p: 50/59.94/60 fps 576p: 50 fps 576i: 25 fps 480p: 59.94/60 fps 480i: 30 fps
PC Resolutions	HDMI: 2560 x 1600 at 60 Hz 2048 x 1536 at 60 Hz 1920 x 1200 at 60 Hz 1680 x 1050 at 60 Hz 1600 x 1200 at 60 Hz 1440 x 900 at 60 Hz 1400 x 1050 at 60 Hz 1280 x 1024 at 60 Hz 1280 x 800 at 60 Hz 1366 x 768 at 60 Hz 1360 x 768 at 60 Hz 1152 x 864 at 60 Hz 1024 x 768 at 60 Hz 800 x 600 at 60 Hz 640 x 480 at 60 Hz
DTS Compatibility	DTS, DTS-HD Master Audio, DTS:X
Dolby Compatibility	Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD

Power

Power I/O	1x RJ45 (48 VDC) Input
PoE Support	Yes
Power Consumption	Device: (7.95 W)

General

Certifications	CE, FCC, UKCA
Operating Conditions	32 to 122°F / 0 to 50°C at 20 to 90% Humidity
Storage Conditions	-4 to 140°F / -20 to 60°C
Dimensions	5 x 4.3 x 1″ / 127 x 109 x 26 mm
Weight	13.6 oz / 386 g
