Device Type Audio converter
Form Factor External
Connectivity Technology Wired
Max Range Indoors 49 ft
Max Resolution 4096 x 2160 @ 60 Hz
Status Indicators Power, status
Compliant Standards HDCP 2.2, CCC, FCC, RoHS, cULus, CEC, RCM
Interfaces 1 x HDMI – 19 pin HDMI Type A female 1 x management – RJ-45 female 1 x micro-USB (management) 1 x audio (output) – terminal block 1 x TOSLINK (output) – TOSLINK female 1 x HDMI (output) – 19 pin HDMI Type A female 1 x HDMI (input) – 19 pin HDMI Type A female
Included Accessories Mounting brackets
Power Device External power adapter
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 6.6 Watt
Width 5 in
Depth 4.3 in
Height 1 in
Weight 12.7 oz
Service & Support Limited warranty – 10 years
Min Operating Temperature 32 F
Max Operating Temperature 122 F
Humidity Range Operating 20 – 90% (non-condensing)
Package Weight 2.2 lb
Box Dimensions (LxWxH) 11.1 x 7.2 x 2.9″
4K/UHD capability @ 60 Hz with 4 4:4 chroma sampling, plus support for HDR formats

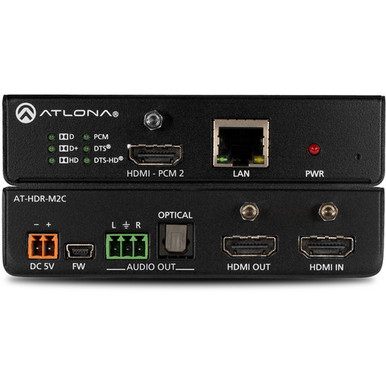

The HDR-M2C is ideal for residential and commercial applications with the latest as well as emerging 4K/UHD and HDR sources and displays. It is compatible with all video resolutions, audio formats, and color space formats supported in the HDMI 2.0a specification, plus the ability to pass metadata for HDR content. Key Features
Atlona AT-HDR Overview HDMI audio de-embedding and multi-channel audio downmixing
Downmixes multi-channel audio to stereo audio 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats HDCP 2.2 compliant
Delivers downmixed audio to HDMI, TOSLINK digital audio, and analog audio outputs
Atlona AT-HDR Specs Device Type Audio converter Form Factor External Networking Connectivity Technology Wired Max Range Indoors 49 ft Max Resolution 4096 x 2160 @ 60 Hz Status Indicators
Atlona AT-HDR Specs Device Type Power, status Features
Firmware upgradable, 4K resolution support, 12-bit Deep Color support, Dolby TrueHD support, Dolby Digital Plus support, EDID Management, built-in audio de-embedder, DTS Digital Surround 5.1 support, multi-channel audio downmixing Compliant Standards HDCP 2.2 Expansion / Connectivity Interfaces
1 x HDMI 19 pin HDMI Type A female
1 x management RJ-45 female
1 x micro-USB (management)
1 x audio (output) terminal block
1 x TOSLINK (output) TOSLINK female
1 x HDMI (output) 19 pin HDMI Type A female
1 x HDMI (input) 19 pin HDMI Type A female Miscellaneous Included Accessories Mounting brackets Compliant Standards
Atlona AT-HDR Specs Device Type CCC, FCC, RoHS, cULus, CEC, RCM Power
Power Device External power adapter
Power Device Voltage Required AC 120/230 V (50/60 Hz)
Power Device Power Consumption Operational 6.6 Watt
Power Device Dimensions & Weight Width 5 in Depth 4.3 in Height 1 in Weight 12.7 oz Manufacturer Warranty Service & Support
Power Device Limited warranty 10 years Environmental Parameters
Min Operating Temperature 32 F Max Operating Temperature 122 F Humidity Range Operating
Min Operating Temperature 32 F 20 90% (non-condensing) Packaging Info Package Weight 2.2 lb
Min Operating Temperature 32 F Box Dimensions (LxWxH) 11.1 x 7.2 x 2.9″
