Switching Type IR Remote, Pushbutton, Software

Processing Resolution DCI 4K at 60

Color Processing 8-Bit 4:4:4 YUV 8-Bit 4:2:2 YUV 8-Bit 4:2:0 YUV 8-Bit 4:4:4 RGB 8-Bit 4:2:2 RGB 8-Bit 4:2:0 RGB 10-Bit 4:4:4 YUV 10-Bit 4:2:2 YUV 10-Bit 4:2:0 YUV 10-Bit 4:4:4 RGB 10-Bit 4:2:2 RGB 10-Bit 4:2:0 RGB 12-Bit 4:4:4 YUV 12-Bit 4:2:2 YUV 12-Bit 4:2:0 YUV 12-Bit 4:4:4 RGB 12-Bit 4:2:2 RGB 12-Bit 4:2:0 RGB

Audio Processing 192 kHz / 24-Bit 176.4 kHz / 24-Bit 96 kHz / 24-Bit 88.2 kHz / 24-Bit 48 kHz / 24-Bit 44.1 kHz / 24-Bit

Video Inputs 5x HDMI Female

Embedded Audio Input HDMI

Video Outputs 2x HDMI Female

Audio Outputs 1x Block 5-Pin Stereo Analog Female 1x RCA Stereo S/PDIF Female

Output Audio Format LPCM (Linear Pulse-Code Modulation)

Embedded Audio Output HDMI

Other I/O 1x Mini-USB 1x Block 3-Pin RS-232 Input/Output 1x RJ45 LAN

HDCP Support Yes, Version 2.2

HDR Support Yes

Wi-Fi No

Bluetooth No

Power I/O 1x Block 2-Pin (5 VDC ) Input

Power Consumption Device: 100 to 240 VAC (18.06 W)

Operating Conditions 32 to 122 F / 0 to 50 C at 20 to 60% Humidity

Storage Conditions -40 to 140 F / -40 to 60 C

Certifications CE, FCC, UL, RoHS

Rack Form Factor 1 RU

Dimensions 8.19 x 4.41 x 1.34″ / 20.8 x 11.2 x 3.4 cm

Weight 1.44 lb / 0.65 kg

Package Weight 5.33 lb

Box Dimensions (LxWxH) 17.3 x 12 x 4″

Conference rooms and meeting rooms the HDR-SW-51 is compact and ideal for under-table mounting. It conveniently provides automatic switching for simplified user operation, especially when laptops are brought into the system.

Presentation spaces where two displays are needed this matrix switcher can feed separate content into dual, side-by-side presentation displays.

Localized video source switching this switcher can be used to feed into a larger, multi-zone AV distribution platform, such as the Atlona OmniStream AV over IP system.

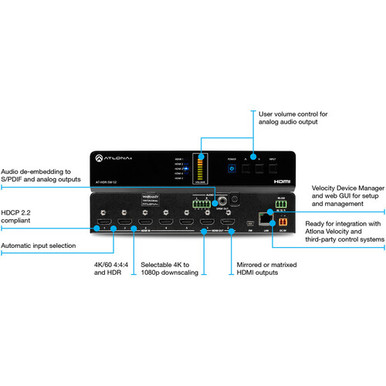

Atlona HDR-SW-52 Overview 5 x 2 HDMI Matrix

Atlona HDR-SW-52 Overview Five HDMI inputs and two HDMI outputs

Atlona HDR-SW-52 Overview Delivers flexible matrix switching capability for meeting and presentation spaces

Atlona HDR-SW-52 Overview Selectable switching modes available with mirrored or matrixed outputs

Enables simple configuration and effortless user operation, tailored to the specific AV application DCI / UHD 4K60 Capability

Atlona HDR-SW-52 Overview Compatible with DCI 4K/UHD 4K and HDR-capable sources and displays, with 4K HDR10, Dolby Vision, and HLG (Hybrid Log-Gamma)

Atlona HDR-SW-52 Overview Adheres to HDCP 2.2 content protection specification

Selectable 4K to 1080p Downscaling Integrated video processing available for down-converting 4K/UHD at 60, 30, or 24 Hz to 1080p

Selectable 4K to 1080p Downscaling Downscaling can be bypassed to allow pass-through up to 4K/60 4:4:4 and 4K HDR

Selectable 4K to 1080p Downscaling Ideal for applications with 1080p displays, video conferencing codecs, and other HD sink devices

Selects active input when sources are connected or if there is a change in source power status

Enables simplified, automatic system operation without user intervention

Audio De-Embedding De-embeds two-channel PCM audio from the selected HDMI source to S/PDIF and balanced, analog audio outputs, 5.1 channel bitstream audio from the selected HDMI source to S/PDIF audio output

Audio De-Embedding Manages EDID communications with the source through a display s EDID or internally stored EDID

Ensures desired audio formats and video resolutions are provided to the AV system HDCP 2.2 Management

Audio De-Embedding Automatically reports HDCP compliance status to the source based on the sink device

Audio De-Embedding HDCP compliance can also be disengaged through Velocity Device Manager or a control system

Audio De-Embedding Allows non-protected material from computers to pass to non-compliant displays, streaming devices, and teleconference systems; protected content is not transmitted

Audio De-Embedding Displays a green splash screen as visual confirmation that protected content is being blocked from transmission to a non-compliant display

Offers menu-based configuration of device settings, including network access, input switching, I/O routing for video and audio, signal processing, display control, HDCP and EDID management, and more

Allows fast configuration of internal product settings and troubleshooting from a mobile device or computer in the field

Intuitive GUI-Based Configuration TCP/IP, RS-232, and IR Control

Flexible control options for compatibility with the Atlona Velocity control system as well as other third-party control systems

Intuitive GUI-Based Configuration Reduces integration time and costs Velocity Device Manager

Centralized, network-based configuration and management of Atlona IP-controllable products and systems

Intuitive GUI-Based Configuration Manage configuration and firmware updates for AV devices spanning a facility, building, enterprise, or residence

Intuitive GUI-Based Configuration Available as a part of Velocity control systems or as a free virtual machine software download Field-Updatable Firmware

Intuitive GUI-Based Configuration Device can be updated in the field via the web GUI or Velocity Device Manager Front-Panel Volume Controls

Intuitive GUI-Based Configuration Volume button controls for adjusting analog audio output level

Intuitive GUI-Based Configuration Buttons can also be configured to control volume over IP, RS-232, or CEC 1 RU Rack Mountable

Intuitive GUI-Based Configuration Includes surface mounting hardware for easy installation into confined spaces below tables and in furniture

Intuitive GUI-Based Configuration Installs easily in equipment racks with included rack-mounting hardware

Atlona HDR-SW-52 Specs Processing Switching Type

IR Remote, Pushbutton, Software Processing Resolution DCI 4K at 60

Intuitive GUI-Based Configuration Color Processing 8-Bit 4:4:4 YUV 8-Bit 4:2:2 YUV 8-Bit 4:2:0 YUV 8-Bit 4:4:4 RGB 8-Bit 4:2:2 RGB 8-Bit 4:2:0 RGB 10-Bit 4:4:4 YUV 10-Bit 4:2:2 YUV 10-Bit 4:2:0 YUV 10-Bit 4:4:4 RGB 10-Bit 4:2:2 RGB 10-Bit 4:2:0 RGB 12-Bit 4:4:4 YUV 12-Bit 4:2:2 YUV 12-Bit 4:2:0 YUV 12-Bit 4:4:4 RGB 12-Bit 4:2:2 RGB 12-Bit 4:2:0 RGB

Intuitive GUI-Based Configuration Audio Processing 192 kHz / 24-Bit 176.4 kHz / 24-Bit 96 kHz / 24-Bit 88.2 kHz / 24-Bit 48 kHz / 24-Bit 44.1 kHz / 24-Bit Input

Input Video Format HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV) DCI 4K at 24/25/30/50/60 fps UHD 4K at 24/25/30/50/60 fps 1080p at 23.98/24/25/29.97/30/50/60 fps 1080i at 50/60 fps 720p at 30/50/60 fps 576p at 50 fps 480p at 60 fps 576i / 625 lines at 25/50 fps 480i / 525 lines at 60 fps UXGA (1600 x 1200) at 60 fps HD+ (1600 x 900) at 60 fps

Input Video Format WUXGA+ (1680 x 1050) at 60 fps WXGA+ (1440 x 900) at 60 fps

Input Video Format SXGA+ (1400 x 1050) at 60 fps FWXGA (1366 x 768) at 60 fps 1360 x 768 at 60 fps

Input Video Format SXVGA (1280 x 1024) at 60 fps WXGA (1280 x 800) at 60 fps 1280 x 768 at 60 fps XGA (1024 x 768) at 60 fps SVGA (800 x 600) at 60 fps VGA (640 x 480) at 60 fps

Output Video Format Audio Outputs 1x Block 5-Pin Stereo Analog Female 1x RCA Stereo S/PDIF Female

Output Audio Format Embedded Audio Output HDMI Connectivity Other I/O 1x Mini-USB 1x Block 3-Pin RS-232 Input/Output 1x RJ45 LAN HDCP Support Yes, Version 2.2

Output Audio Format HDR Support Yes Display Wi-Fi No Bluetooth No Power

Output Audio Format Power I/O 1x Block 2-Pin (5 VDC ) Input

Power Consumption Device 100 to 240 VAC (18.06 W) General

Power Consumption Operating Conditions 32 to 122 F / 0 to 50 C at 20 to 60% Humidity Storage Conditions -40 to 140 F / -40 to 60 C Certifications CE, FCC, UL, RoHS Rack Form Factor 1 RU Dimensions 8.19 x 4.41 x 1.34″ / 20.8 x 11.2 x 3.4 cm Weight 1.44 lb / 0.65 kg Packaging Info Package Weight 5.33 lb

Power Consumption Box Dimensions (LxWxH) 17.3 x 12 x 4″

Switching Type	IR Remote, Pushbutton, Software
Processing Resolution	DCI 4K at 60
Color Processing	8-Bit 4:4:4 YUV 8-Bit 4:2:2 YUV 8-Bit 4:2:0 YUV 8-Bit 4:4:4 RGB 8-Bit 4:2:2 RGB 8-Bit 4:2:0 RGB 10-Bit 4:4:4 YUV 10-Bit 4:2:2 YUV 10-Bit 4:2:0 YUV 10-Bit 4:4:4 RGB 10-Bit 4:2:2 RGB 10-Bit 4:2:0 RGB 12-Bit 4:4:4 YUV 12-Bit 4:2:2 YUV 12-Bit 4:2:0 YUV 12-Bit 4:4:4 RGB 12-Bit 4:2:2 RGB 12-Bit 4:2:0 RGB
Audio Processing	192 kHz / 24-Bit 176.4 kHz / 24-Bit 96 kHz / 24-Bit 88.2 kHz / 24-Bit 48 kHz / 24-Bit 44.1 kHz / 24-Bit

Video Inputs	5x HDMI Female
Input Video Format	HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV) DCI 4K at 24/25/30/50/60 fps UHD 4K at 24/25/30/50/60 fps 1080p at 23.98/24/25/29.97/30/50/60 fps 1080i at 50/60 fps 720p at 30/50/60 fps 576p at 50 fps 480p at 60 fps 576i / 625 lines at 25/50 fps 480i / 525 lines at 60 fps UXGA (1600 x 1200) at 60 fps HD+ (1600 x 900) at 60 fps WUXGA+ (1680 x 1050) at 60 fps WXGA+ (1440 x 900) at 60 fps SXGA+ (1400 x 1050) at 60 fps FWXGA (1366 x 768) at 60 fps 1360 x 768 at 60 fps SXVGA (1280 x 1024) at 60 fps WXGA (1280 x 800) at 60 fps 1280 x 768 at 60 fps XGA (1024 x 768) at 60 fps SVGA (800 x 600) at 60 fps VGA (640 x 480) at 60 fps
Embedded Audio Input	HDMI

Video Outputs	2x HDMI Female
Output Video Format	HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV) DCI 4K at 24/25/30/50/60 fps UHD 4K at 24/25/30/50/60 fps 1080p at 23.98/24/25/29.97/30/50/60 fps 1080i at 50/60 fps 720p at 30/50/60 fps 576p at 50 fps 576i / 625 lines at 25/50 fps 480p at 60 fps 480i / 525 lines at 60 fps WUXGA (1920 x 1200) WUXGA+ (1680 x 1050) UXGA (1600 x 1200) HD+ (1600 x 900) 1440 x 900 SXGA+ (1400 x 1050) FWXGA (1366 x 768) SXGA (1280 x 1024) WXGA (1280 x 800) 1280 x 768
Audio Outputs	1x Block 5-Pin Stereo Analog Female 1x RCA Stereo S/PDIF Female
Output Audio Format	LPCM (Linear Pulse-Code Modulation)
Embedded Audio Output	HDMI

Other I/O	1x Mini-USB 1x Block 3-Pin RS-232 Input/Output 1x RJ45 LAN
HDCP Support	Yes, Version 2.2
HDR Support	Yes

Power I/O	1x Block 2-Pin (5 VDC ) Input
Power Consumption	Device: 100 to 240 VAC (18.06 W)

Operating Conditions	32 to 122°F / 0 to 50°C at 20 to 60% Humidity
Storage Conditions	-40 to 140°F / -40 to 60°C
Certifications	CE, FCC, UL, RoHS
Rack Form Factor	1 RU
Dimensions	8.19 x 4.41 x 1.34″ / 20.8 x 11.2 x 3.4 cm
Weight	1.44 lb / 0.65 kg
