HDBaseT Receiver with Integrated Control and Ethernet Extension

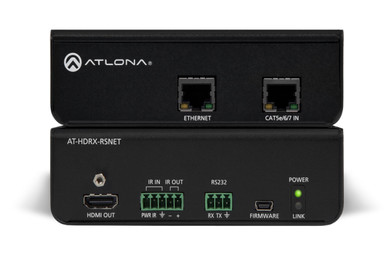

The Atlona AT-HDRX-RSNET is a versatile HDBaseT Receiver (RX) unit designed to be paired with Atlona HDBaseT Distribution Amplifiers or Transmitters. Its primary function is to receive HDMI video, audio, and control signals sent over a single CAT5e/6/7 cable and output them to a display device.

Crucially, the AT-HDRX-RSNET supports Ethernet and RS-232 control signal pass-through. This allows A/V integrators to control the distant source device (via RS-232) or provide a network drop (via Ethernet) to the display location, simplifying complex installations. It can extend signals up to 100 meters (330 feet).

Key Features & Technical Specifications

• Function: HDBaseT Receiver (RX).

• Signal Extension: HDMI, Audio, RS-232 Control, and Ethernet (LAN).

• Distance: Up to $330text{ ft}$ ($100text{ m}$) over CAT6/7.

• Video Support: Supports resolutions up to 1080p/60Hz and 3D.

• Bi-directional Control: RS-232 and IR (Infrared) control signals are extended over the same CAT cable, enabling control of the display from the source location or vice-versa.

• Power over HDBaseT (PoH): Often powered by the HDBaseT Transmitter (PoH) for simpler installation (less need for a power outlet near the display)

Commercial Applications

• Digital Signage: Provides reliable, long-distance video and network connectivity to remote displays.

• Control Rooms: Centralized control over remote monitors and sources using the RS-232 extension.

• Corporate: Clean, single-cable solution for video and control in large meeting rooms.
