HDMI HDBaseT Transmitter with Bi-directional IR Control

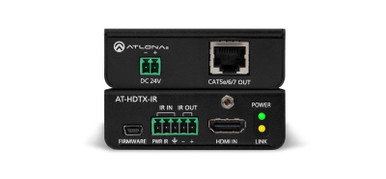

The Atlona AT-HDTX-IR is the transmitting (TX) unit in an HDBaseT extension system. It takes an HDMI source signal and converts it for reliable, long-distance transmission—up to 70 meters (230 feet)—over a single, convenient CAT cable (CAT5e/6/7) to a compatible HDBaseT receiver (such as an AT-HDRX model).

A key feature of the AT-HDTX-IR is its integrated Bi-directional IR (Infrared) control. This allows the user at the distant display location to use their existing remote control to operate the source device (e.g., Blu-ray player, cable box) located near the transmitter, providing a completely seamless user experience.

Key Features & Technical Specifications

• Function: HDBaseT Transmitter (TX).

• Signal Extension: HDMI, Audio, and Bi-directional IR Control.

• Distance: Up to $230text{ ft}$ ($70text{ m}$) over CAT6/7.

• Video Support: Supports resolutions up to 1080p, and deep color.

• Bi-directional IR: Allows remote control of the source from the display location and vice-versa.

• Minimal Cabling: Utilizes the HDBaseT standard to simplify installations and reduce cable clutte

Commercial Applications

• Residential AV: Extending signals from a central equipment closet to displays in various rooms.

• Meeting Rooms: Placing the source PC/device neatly out of sight while maintaining full remote control functionality.

• Retail/Hospitality: Centralizing media players while running displays throughout a large facility.
