4K/UHD HDBaseT Transmitter with Ethernet and RS-232 Control Extension

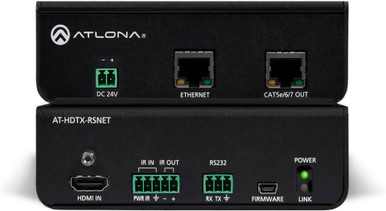

The Atlona AT-HDTX-RSNET is the professional-grade transmitting (TX) component of an HDBaseT extension system. It is engineered for use in demanding commercial environments like large boardrooms, control centers, and educational facilities, allowing for the maximum extension distance specified by the HDBaseT standard.

This unit combines four essential signals for A/V integration onto a single Category cable run (CAT5e/6/7):

High-Resolution Video: Transmits HDMI signals up to 4K/UHD (⁴$4096 times 2160$) up to ⁵$328text{ ft}$ (⁶$100text{ m}$) using CAT6a/7 cable.

Ethernet: Provides 100BaseT pass-through, allowing network connectivity at the display location

Advanced Control: Bi-directional extension of RS-232 and IR signals for complete system management.

Power over Cable (PoCc): The transmitter often provides power to a compatible HDBaseT receiver (e.g., AT-HDRX-RSNET) over the same CAT cable, eliminating the need for a power supply at the display.

Key Features & Specifications

Function: HDBaseT Transmitter (TX)

• Signal Extension: HDMI, Audio, Bi-directional IR, RS-232 Control, and 100BaseT Ethernet.

• Distance: Up to $328text{ ft}$ ($100text{ m}$) at 1080p, or $230text{ ft}$ ($70text{ m}$) at 4K/UHD

• Power: Features PoCc to power the receiver unit.

• HDCP: Compliant with HDCP 2.2 for secure content transmission.



• Audio Support: Supports all embedded audio signals, including Dolby TrueHD and DTS-HD Master Audio.

•
