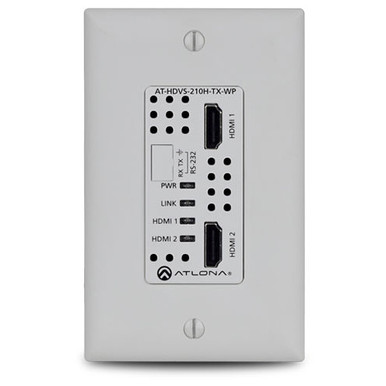

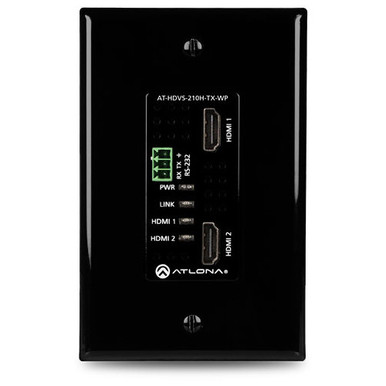

The Atlona AT-HDVS-210H-TX-WP is a 2×1 switcher and HDBaseT transmitter with two HDMI inputs. It features a US one-gang, Decora-style wallplate form factor, and includes interchangeable black and white wallplates and faceplates. Video signals up to 4K/UHD with 4:2:0 chroma subsampling, plus embedded audio and control can be transmitted. The HDVS-210H-TX-WP is HDCP 2.2 compliant. It is designed for use with select HDVS Series receivers and scalers, as well as the AT-UHD-EX-100CE-RX-PSE receiver, and Atlona switchers and matrix switchers with HDBaseT inputs. This transmitter can serve as an integral component of a fully automated AV system, with the convenience of automatic input selection and display control.
Key Features
- 2×1 HDBaseTTM switcher with HDMI inputs
- HDBaseT transmitter for AV, power, and control
- 4K/UHD capability with 4:2:0 chroma subsampling
- Remotely powered via PoE
- Automatic input selection and automatic display control
- TCP/IP and RS-232 control

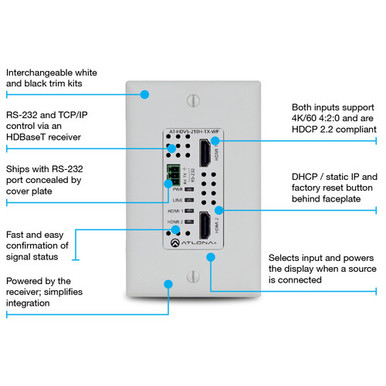

All-in-one switcher, controller, and extender
The HDVS-210H-TX-WP combines the benefits of auto-switching, integrated display control, and HDBaseT signal transmission. It also enables input selection, volume, and display on/off control from external RS-232 or TCP/IP commands. The HDVS-210H-TX-WP incorporates many popular integration convenience features while delivering excellent value for classrooms, huddle rooms, and meeting spaces.
Automatic display control
The HDVS-210H-TX-WP provides control to a display through RS-232 or CEC, without the need for a separate control system. This simplifies system design and integration while reducing costs. With automatic display control, the HDVS-210H-TX-WP can trigger a display to power on automatically whenever a laptop or other device is connected. At the end of the presentation, when the presenter disconnects the laptop, the HDVS-210H-TX-WP forces the display to power off. Ease of presenter interaction with the system, and the savings incurred by automatic display shutdown provide a significant return on investment. The HDVS-210H-TX-WP display control capability can also be triggered by an external control system.
Reliable auto-switching
The HDVS-210H-TX-WP automatically selects an input source based on detection of the 5 volt hot plug detect (HPD) signal, as well as active video. This ensures reliable auto-switching operation for all video sources, including DVRs, DisplayPort / Mini DisplayPort adapters, and other devices that always maintain the HPD line at the 5 volt “high” state but may not be delivering active video.
Atlona AT-HDVS Specs
| Device Type | |
| Form Factor | |
| Color |
Networking
| Connectivity Technology | |
| Data Link Protocol | |
| Max Resolution | |
| Max Transfer Distance | |
| Features | |
| Compliant Standards |
Expansion / Connectivity
| Interfaces |
Miscellaneous
| Included Accessories | |
| Compliant Standards |
Dimensions & Weight
| Weight |
Manufacturer Warranty
| Service & Support |
Environmental Parameters
| Min Operating Temperature | |
| Max Operating Temperature | |
| Humidity Range Operating |
Packaging Info
| Package Weight | |
| Box Dimensions (LxWxH) |
