Inputs 1x HDMI (HDMI 2.0) Female 2x USB-A Female, 1x RJ45 (HDBaseT) Female
Embedded Audio Input HDMI
Outputs 1x RJ45 (HDBaseT) Female 1x USB-B Female, 1x HDMI (HDMI 2.0) Female 2x USB-A Female
Transmitter Other I/O 1x Micro-USB Input 1x Block 4-Pin RS-232, IR Input/Output
Embedded Audio Output HDMI
Receiver Other I/O 1x Micro-USB Input 1x Block 4-Pin RS-232, IR Input/Output
HDCP Support Yes, Version 2.2
EDID Support No
Max Transmission Distance DCI 4K, UHD 4K at 60 Hz: 130′ / 39.6 m (via Cat 6/6a/7) 1080p at 60 Hz: 230′ / 70.1 m (via Cat 6/6a/7)
Video Format HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV) DCI 4K: 24/30/60 fps UHD 4K: 24/25/30/50/60 fps 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 25/29.97/30 fps 720p: 30/50/59.94/60 fps HDMI (8/10/12-Bit 4:2:0) DCI 4K: 60 fps UHD 4K: 60 fps
PC Resolutions HDMI: 2560 x 2048 HDMI: 2560 x 1600 HDMI: 2048 x 1536 HDMI: 1920 x 1200 HDMI: 1680 x 1050 HDMI: 1600 x 1200 HDMI: 1600 x 900 HDMI: 1440 x 900 HDMI: 1440 x 900 HDMI: 1400 x 1050 HDMI: 1366 x 768 HDMI: 1360 x 768 HDMI: 1280 x 1024 HDMI: 1280 x 800 HDMI: 1280 x 768 HDMI: 1152 x 768 HDMI: 1024 x 768 HDMI: 800 x 600 HDMI: 640 x 480
DTS Compatibility DTS, DTS-HD Master Audio, DTS:X
Dolby Compatibility Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD
Supported Cable Types Cat 6/6a/7
Receiver Power I/O 1x Block 2-Pin (48 VDC) Input
PoE Support PoE 802.3af
Transmitter Power Consumption Device: (13.5 W)
Receiver Power Consumption Device: 48 VDC at 0.83 A (17 W) Power Supply: 100 to 240 VAC
Certifications CE, FCC, RoHS, cUL
Operating Conditions 32 to 82 F / 0 to 50 C at 20 to 90% Humidity
Storage Conditions -4 to 140 F / -20 to 60 C
Transmitter Dimensions 5 x 4.3 x 1″ / 127 x 109 x 26 mm
Receiver Dimensions 5 x 4.3 x 1″ / 127 x 109 x 26 mm
Transmitter Weight 14.1 oz / 400 g
Receiver Weight 14.1 oz / 400 g
Package Weight 3.42 lb
Box Dimensions (LxWxH) 13.8 x 8.2 x 2.7″

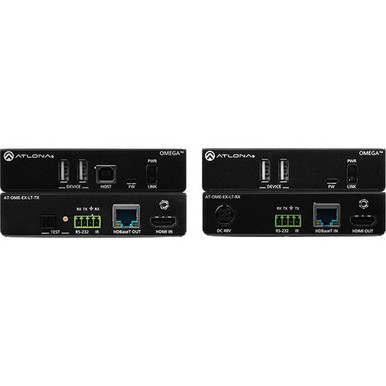

Extend your transmission of HDMI DCI/UHD 4K60 video signals including your USB device communication up to 130′ using the Omega 4K/UHD HDMI/USB-over-HDBaseT Lite Extender Kit from Atlona . The kit includes a transmitter, receiver, one power supply for the receiver, and surface mounting hardware to fit the two compact units easily into your A/V environment in a classroom, conference room, or event space.
The extender system is HDCP 2.2 compliant, and it features IR extension, RS-232 pass-through, and CEC pass-through. The receiver is powered using the included power adapter, and it supplies power to the transmitter over the HDBaseT connection via PoE. Power can also be supplied to USB devices that require it, such as a mouse or microphone. A USB port on each unit allows you to update the firmware with future updates. Applications
Atlona AT-OME-EX-LT Overview Soft codec and web-based conferencing applications, with the ability to integrate with a PC and speakerphone or microphone at a meeting table, and a camera or soundbar at the wall-mounted display
AV and USB extension for a touch-enabled display, allowing remote PC control at a meeting table or other location
Atlona AT-OME-EX-LT Overview Video conferencing and UC (unified communications) platforms such as Zoom, Skype for Business, Microsoft Teams, Cisco Webex, BlueJeans, and GoToMeeting, Audio, Power, and Data over HDBaseT
Atlona AT-OME-EX-LT Overview Extends up to 230′ at 1080p, or up to 130′ at DCI/UHD 4K using Cat 6a/7 cable
Atlona AT-OME-EX-LT Overview Uses easy-to-integrate category cable for low-cost, reliable system installation
Atlona AT-OME-EX-LT Overview USB 2.0 Interface and Extension up to 230′

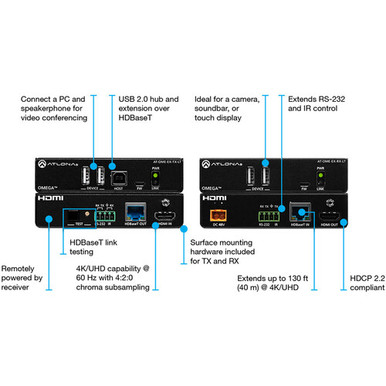

Transmitter features USB Type-B interface for connection to a host PC, plus two USB type A ports for peripheral devices such as a microphone or speakerphone
Receiver features two USB Type-A outputs for peripheral devices such as a camera, microphone, or conferencing display
Atlona AT-OME-EX-LT Overview Supports USB 2.0 devices, and USB 3.0 devices are compatible with USB 2.0 and legacy USB 1.x peripherals
Provides an ideal USB integration solution for software video conferencing and other applications
Atlona AT-OME-EX-LT Overview A maximum 120 Mb/s data rate is supported due to specific USB bandwidth limitations over HDBaseT
Atlona AT-OME-EX-LT Overview UHD 4K60 with 4:2:0 Chroma Subsampling
Atlona AT-OME-EX-LT Overview Compatible with sources up to 4K60 4:2:0 and 4K30 4:4:4
Atlona AT-OME-EX-LT Overview Supports HDMI data rates up to 10 Gb/s from PCs, media players, and UHD Blu-ray players HDCP 2.2 Compliant
Atlona AT-OME-EX-LT Overview Adheres to latest specification for High-Bandwidth Digital Content Protection (HDCP)
Atlona AT-OME-EX-LT Overview Allows protected content stream to pass between authenticated devices, convenient transmitter installation at a table or other remote location, without the need for local AC power
Atlona AT-OME-EX-LT Overview Transmitter Powered by Receiver over HDBaseT
Atlona AT-OME-EX-LT Overview Industry standard IEEE 802.3af PoE for transmitter is supplied by receiver over HDBaseT
Passes through multi-channel audio formats
Multi-Channel Audio Compliant Supports PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, DTS-HD Master Audio, and DTS:X HDBaseT Link Status Testing
Multi-Channel Audio Compliant Free software utility available for testing integrity of the HDBaseT cable link between the transmitter and the receiver
Multi-Channel Audio Compliant Provides real-time link status, plus detailed HDBaseT and HDMI signal information, convenient setup and troubleshooting Low-Profile Enclosure
Multi-Channel Audio Compliant Quick, easy verification or troubleshooting of RJ45 termination or twisted pair cable quality
Multi-Channel Audio Compliant Test button and LED also available on the transmitter for checking HDBaseT link integrity Field-Updatable Firmware
Multi-Channel Audio Compliant Device can be updated in the field via the micro-USB port Front-Panel Status LEDs
LED indicators provide power and HDBaseT link status information
Multi-Channel Audio Compliant Compact enclosure is only 1.02″ high for easy installation into confined spaces below tables, in furniture, and behind or above displays Atlona AT-OME-EX-LTSpecs Transmitter Interfaces Inputs
Multi-Channel Audio Compliant 1x HDMI (HDMI 2.0) Female
2x USB-A Female Embedded Audio Input HDMI Outputs 1x RJ45 (HDBaseT) Female, Output HDMI Receiver Other I/O
1x USB-B Female Transmitter Other I/O
1x Micro-USB Input 1x Block 4-Pin RS-232, IR Input/Output Receiver Interfaces Inputs 1x RJ45 (HDBaseT) Female Outputs, Input 1x Block 4-Pin RS-232, IR Input/Output Standards HDCP Support Yes, Version 2.2 EDID Support No Transmission Max Transmission Distance DCI 4K, UHD 4K at 60 Hz: 130′ / 39.6 m (via Cat 6/6a/7) 1080p at 60 Hz: 230′ / 70.1 m (via Cat 6/6a/7)
2x USB-A Female 1x HDMI (HDMI 2.0) Female
Video Format HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV), (8/10/12-Bit 4:2:0), 2560 x 2048, 2560 x 1600, 2048 x 1536, 1920 x 1200, 1680 x 1050, 1600 x 1200, 1600 x 900, 1440 x 900, 1400 x 1050, 1366 x 768, 1360 x 768, 1280 x 1024, 1280 x 800, 1280 x 768, 1152 x 768, 1024 x 768, 800 x 600, 640 x 480 DTS Compatibility
Video Format DCI 4K 24/30/60 fps, 60 fps
Video Format UHD 4K 24/25/30/50/60 fps, 60 fps PC Resolutions
Video Format 1080p 23.98/24/25/29.97/30/50/59.94/60 fps
Video Format 1080i 25/29.97/30 fps
Video Format 720p 30/50/59.94/60 fps
DTS, DTS-HD Master Audio, DTS X Dolby Compatibility
Video Format Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD Supported Cable Types Cat 6/6a/7 Power
Video Format Receiver Power I/O 1x Block 2-Pin (48 VDC) Input PoE Support PoE 802.3af
Transmitter Power Consumption Device (13.5 W)
Receiver Power Consumption Device 48 VDC at 0.83 A (17 W)
Receiver Power Consumption Power Supply 100 to 240 VAC General Certifications CE, FCC, RoHS, cUL
Receiver Power Consumption Operating Conditions 32 to 82 F / 0 to 50 C at 20 to 90% Humidity Storage Conditions -4 to 140 F / -20 to 60 C Transmitter Dimensions 5 x 4.3 x 1″ / 127 x 109 x 26 mm Receiver Dimensions 5 x 4.3 x 1″ / 127 x 109 x 26 mm Transmitter Weight 14.1 oz / 400 g Receiver Weight 14.1 oz / 400 g Packaging Info Package Weight 3.42 lb
Receiver Power Consumption Box Dimensions (LxWxH) 13.8 x 8.2 x 2.7″
