Inputs 1x RJ45 (HDBaseT) Female
Outputs 1x HDMI (HDMI 2.0) Female 2x USB-A Female 1x Block 4-Pin (RS-232) Female
Embedded Audio Output HDMI: 2-Channel RJ45: 2-Channel
Other I/O 1x RJ45 10/100 Ethernet Input/Output 1x Mini-USB Input
HDCP Support Yes, Version 2.2
Max Transmission Distance DCI 4K, UHD 4K: 295.3′ / 90 m (via Cat 5e) 1080p, DCI 4K, UHD 4K: 328.1′ / 100 m (via Cat 6/6a/7) 1080p: 328.1′ / 100 m (via Cat 5e)
Video Format HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV) DCI 4K: 24/25/30/50/60 fps UHD 4K: 24/25/30/50/60 fps 1080p: 23.98/24/25/29.97/30/59.94/60 fps 1080i: 25/29.97/30 fps 720p: 50/59.94/60 fps 576p: 50 fps PAL: 25 fps 480p: 59.94/60 fps NTSC: 30 fps
PC Resolutions HDMI: 2560 x 1600 HDMI: 2048 x 1536 HDMI: 1920 x 1200 HDMI: 1680 x 1050 HDMI: 1600 x 1200 HDMI: 1440 x 900 HDMI: 1400 x 1050 HDMI: 1280 x 1024 HDMI: 1200 x 800 HDMI: 1366 x 768 HDMI: 1360 x 768 HDMI: 1152 x 864 HDMI: 1024 x 768 HDMI: 800 x 600 HDMI: 640 x 480
Audio Format Analog: 192 kHz
DTS Compatibility DTS, DTS-HD Master Audio, DTS:X
Dolby Compatibility Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD
Supported Cable Types Cat 5e/6/6a/7
Power I/O 1x Mini-DIN 4-Pin (48 VDC at 0.8 A) Input
PoE Support PoE 802.3af
Power Consumption Power Supply: 100 to 240 VAC (18.67 W)
Certifications CE, FCC, UL
Operating Conditions 32 to 82 F / 0 to 50 C at 20 to 90% Humidity
Storage Conditions -4 to 140 F / -20 to 60 C
Dimensions 5 x 4.3 x 1″ / 127 x 109 x 26 mm
Weight 14.5 oz / 410 g
Package Weight 2.5 lb
Box Dimensions (LxWxH) 13.8 x 8.1 x 2.9″

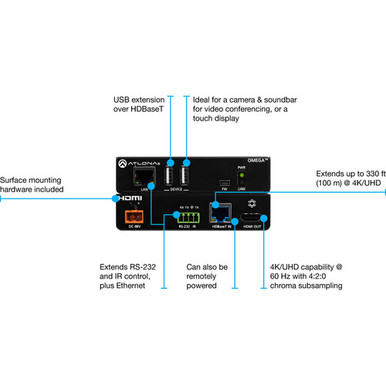

Atlona AT-OME-EX Overview Resolutions are supported up to DCI/UHD 4K, and HDCP 2.2 is supported in order to play protected high-resolution content. A power supply is included and the receiver sends downstream power via the HDBaseT connection, so no separate power supply is required for a compatible transmitter that supports PoE via HDBaseT. It can also be powered using an Omega Matrix switch with PoE.
The OME-EX-RX and an Omega Series switcher together provide a comprehensive and cost-effective integration solution for meeting rooms and other AV presentation spaces., and a compatible Omega Series transmitter or switcher are ideal for soft codec and web-based conferencing applications, with the ability to integrate with computers, cameras, speakerphones, and microphones. They can also provide AV and USB extension for a touch-enabled display, allowing remote PC control at a meeting table or other location. Compatibility, is not compatible with the Atlona HDVS-300 system for USB extension.
Key Features Video, Audio, and Data over HDBaseT
Larger System Applications Receives from up to 330′ at 1080p with Cat 5e/6 or UHD 4K using Cat 6a/7 cable.
Larger System Applications USB 2.0 Interface and Extension up to 330′
Larger System Applications Two USB type A ports for peripheral devices such as a camera or display, each supporting USB 2.0 devices, USB 3.0 devices compatible with USB 2.0, and legacy USB 1.x peripherals, providing an ideal USB integration solution for software video conferencing and other applications.
Larger System Applications UHD 4K Capability with 4:2:0 Chroma Subsampling
Larger System Applications Compatible with sources up to DCI/UHD 4K60 4:2:0 and DCI/UHD 4K30 4:4:4 and supports HDMI data rates up to 10 Gb/s from computers, media players, and UHD Blu-ray players. HDCP 2.2 Compliant
Larger System Applications Adheres to the latest specification for High-Bandwidth Digital Content Protection and allows protected content stream to pass between authenticated devices.
Local AC Power and PoE Industry standard IEEE 802.3af PoE is supplied by an Omega Series switcher over HDBaseT, or it can be locally powered and supply IEEE 802.3af PoE over HDBaseT to an Omega Series transmitter.
Passes through multi-channel audio formats such as PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, DTS-HD Master Audio, and DTS:X. Field-Updatable Firmware
Multi-Channel Audio Compliant Device can be updated in the field via the mini-USB port.
Front-Panel Power and Signal Status LEDs
LED indicators provide power and HDBaseT link status information. Low-Profile Enclosure
Multi-Channel Audio Compliant Easy installation into confined spaces below tables, in furniture, and behind or above displays and includes mounting hardware for installation onto surfaces. Atlona AT-OME-EXSpecs Inputs 1x RJ45 (HDBaseT) Female Outputs
Multi-Channel Audio Compliant 1x HDMI (HDMI 2.0) Female
2x USB-A Female 1x Block 4-Pin (RS-232) Female
Embedded Audio Output HDMI 2-Channel RJ45: 2-Channel Other I/O
1x Mini-USB Input Standards HDCP Support Yes, Version 2.2 Transmission Max Transmission Distance DCI 4K, UHD 4K: 295.3′ / 90 m (via Cat 5e) 1080p, DCI 4K, UHD 4K: 328.1′ / 100 m (via Cat 6/6a/7) 1080p: 328.1′ / 100 m (via Cat 5e)
Video Format HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV), 2560 x 1600, 2048 x 1536, 1920 x 1200, 1680 x 1050, 1600 x 1200, 1440 x 900, 1400 x 1050, 1280 x 1024, 1200 x 800, 1366 x 768, 1360 x 768, 1152 x 864, 1024 x 768, 800 x 600, 640 x 480
Video Format DCI 4K 24/25/30/50/60 fps
Video Format UHD 4K 24/25/30/50/60 fps
Video Format 1080p 23.98/24/25/29.97/30/59.94/60 fps
Video Format 1080i 25/29.97/30 fps
Video Format 720p 50/59.94/60 fps
Video Format 576p 50 fps
Video Format PAL 25 fps
Video Format 480p 59.94/60 fps
Video Format NTSC 30 fps PC Resolutions
Audio Format Analog 192 kHz DTS Compatibility
DTS, DTS-HD Master Audio, DTS X Dolby Compatibility
Audio Format Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD Supported Cable Types Cat 5e/6/6a/7 Power
Audio Format Power I/O 1x Mini-DIN 4-Pin (48 VDC at 0.8 A) Input PoE Support PoE 802.3af
Power Consumption Power Supply 100 to 240 VAC (18.67 W) General Certifications CE, FCC, UL
Power Consumption Operating Conditions 32 to 82 F / 0 to 50 C at 20 to 90% Humidity Storage Conditions -4 to 140 F / -20 to 60 C Dimensions 5 x 4.3 x 1″ / 127 x 109 x 26 mm Weight 14.5 oz / 410 g Packaging Info Package Weight 2.5 lb
Power Consumption Box Dimensions (LxWxH) 13.8 x 8.1 x 2.9″
