HDMI Specification HDMI 2.0, HDCP 2.2
TMDS Clock 300 MHz
UHD/HD 4096 2160(DCI)@60*/30/24 Hz, 3840 2160(UHD)@60*/50/24/25/30 Hz, 1080p@23.98/24/25/29.97/30/50/59.94/60 Hz, 1080i@25/29.97/30 Hz, 720p@30/50/59.94/60 Hz
VESA 2560 2048, 2560 1600, 2048 1536, 1920 1200, 1680 1050, 1600 1200, 1600 900, 1440 900, 1400 1050, 1366 768, 1360 768, 1280 1024, 1280 800 1280 768, 1152 768, 1024 768, 800 600, 640 480
VESA 21:9 2560 1080 @ 30 Hz 4:4:4 2560 1080 @ 60 Hz 4:4:4 3440 1440 @ 30 Hz 4:4:4 3440 1440 @ 50 Hz 4:4:4 3840 1600 @ 30 Hz 4:4:4
Color Space YUV, RGB
Chroma Subsampling 4:4:4, 4:2:2, 4:2:0
Color Depth 8-bit, 10-bit, 12-bit
Pass-through PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos , DTS , DTS-HD Master Audio , DTS:X
Sample Rate 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Bit Depth Up to 24-bit
Signal 2.0
Maximum Data Rate 120 Mbps

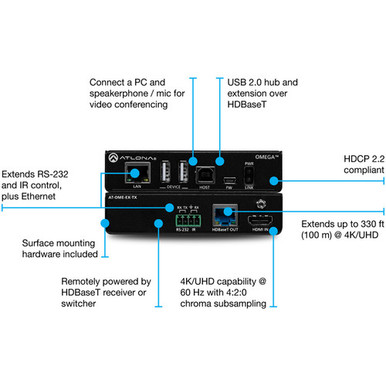

Internal Hubs 1 USB hub
CEC Pass-through
RS-232 Pass-through from control system to sink device; supports baud rates from 2400 to 115200
IR Pass-through from control system to sink device
IP Pass-through from control system to sink device up to 100 Mbps over HDBaseT

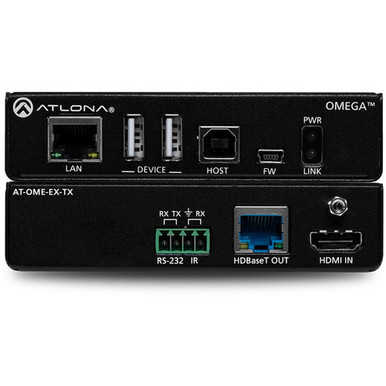

HDMI IN 1 Type A, 19-pin female
FW 1 mini-USB
HDBaseT OUT 1 RJ45
HOST 1 USB Type-B
DEVICE 2 USB Type-A
LAN 1 RJ45, 10/100 Mbps
RS-232 / IR 1 captive screw, 4-pin
PWR LED indicator 1 LED, green
LINK LED indicator 1 LED, yellow
Resolution / Distance 4K/UHD Feet / Meters
HDMI IN/OUT 15
CAT5e 295
CAT6/6a/7 330
Consumption 13.68 W
USB Power 2.5 W per USB device interface
Safety CE, FCC, cULus, CE, RoHS, FCC
Operating Temperature 0 to 122 F 0 50 C
Storage Temperature -4 to +140 F -20 to +60 C
Operating Humidity (RH) +20 to +90%, non-condensing
Dimensions (H x W x D) 1.02 in x 4.29 in x 5.00 in 26 mm x 109 mm x 127 mm
Weight 0.89lb, 406g
* 4K/UHD @ 60 Hz only supports 4 2:0.
HDMI Specification Color Space YUV, RGB, Depth 8-bit, 10-bit, 12-bit
HDMI Specification Chroma Subsampling 4:4:4, 4:2:2, 4:2:0
HDMI Specification PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos , DTS , DTS-HD Master Audio , DTS:X Sample Rate 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz Bit Depth Up to 24-bit USB Signal 2.0 Maximum Data Rate 120 Mbps Internal Hubs
HDMI Specification 1 USB hub Control CEC Pass-through RS-232
Pass-through from control system to sink device; supports baud rates from 2400 to 115200 IR, to sink device IP, to sink device up to 100 Mbps over HDBaseT Connectors
HDMI IN 1 Type A, 19-pin female FW 1 mini-USB HDBaseT OUT 1 RJ45 HOST
1 USB Type-B DEVICE 2 USB Type-A LAN 1 RJ45, 10/100 Mbps RS-232 / IR 1 captive screw, 4-pin Indicators and Controls PWR LED indicator 1 LED, green LINK LED indicator 1 LED, yellow
1 USB Type-B DEVICE Resolution / Distance 4K/UHD Feet / Meters 1080p Feet / Meters
1 USB Type-B DEVICE HDMI IN/OUT 15 5 30 10 CAT5e 295 90 330 100 CAT6/6a/7 330 100 330 100 Power Consumption 13.68 W
USB Power Operating Temperature 0 to 122 F 0 50 C Storage Temperature -4 to +140 F -20 to +60 C
USB Power Operating Humidity (RH) +20 to +90%, non-condensing Chassis
USB Power Dimensions (H x W x D) 1.02 in x 4.29 in x 5.00 in 26 mm x 109 mm x 127 mm Weight 0.89lb, 406g Safety CE, RoHS, FCC
