HDMI Specification HDMI 2.0, HDCP 2.2
TMDS Clock 300 MHz
UHD/HD 4096 2160(DCI)@60 (1) /30/24 Hz, 3840 2160(UHD)@60 (1) /50 (1) /24/25/30 Hz, 1080p@23.98/24/25/29.97/30/50/59.94/60 Hz, 1080i@25/29.97/30 Hz, 720p@30/50/59.94/60 Hz
VESA 2560 2048, 2560 1600, 2048 1536, 1920 1200, 1680 1050, 1600 1200, 1600 900, 1440 900, 1400 1050, 1366 768, 1360 768, 1280 1024, 1280 800 1280 768, 1152 768, 1024 768, 800 600, 640 480
VESA 21:9 2560 1080 @ 30 Hz 4:4:4 2560 1080 @ 60 Hz 4:4:4 3440 1440 @ 30 Hz 4:4:4 3440 1440 @ 50 Hz 4:4:4 3840 1600 @ 30 Hz 4:4:4
Color Space YUV, RGB
Chroma Subsampling 4:4:4, 4:2:2, 4:2:0
Color Depth 8-bit, 10-bit, 12-bit
Pass-through PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos , DTS , DTS-HD Master Audio , DTS:X
Sample Rate 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Bit Depth Up to 24-bit
Signal 2.0
Maximum Data Rate 120 Mbps
Internal Hubs 1 USB hub
CEC Pass-through
RS-232 Pass-through from control system to sink device; supports baud rates from 2400 to 115200, 1 captive screw, 3-pin
HDMI IN 1 Type A, 19-pin female

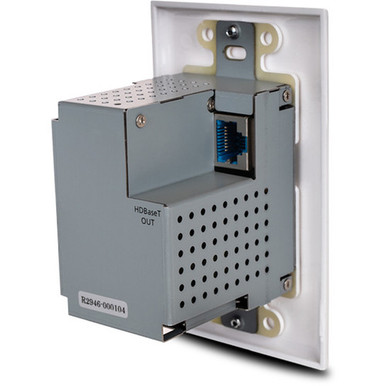

HDBaseT OUT 1 RJ45
HOST 1 USB Type-B
DEVICE 1 USB Type-A
PWR LED indicator 1 LED, green
LINK LED indicator 1 LED, yellow
Resolution / Distance 4K/UHD Feet / Meters
HDMI IN/OUT 15
CAT5e 295
CAT6/6a/7 330
Consumption 11.18 W (includes 2.5 W for USB, powered by RX)
USB Power 2.5 W per USB device interface
BTU/h 38.1
Operating Temperature 32 to 104 F 0 40 C
Storage Temperature -4 to +140 F -20 to +60 C
Operating Humidity (RH) +20 to +90%, non-condensing
Dimensions (H x W x D) 4.07 in x 1.80 in x 2.63 in 103.50 mm x 45.80 mm x 67.00 mm
Weight 0.40 lb, 180 g
Safety CE, RoHS, FCC

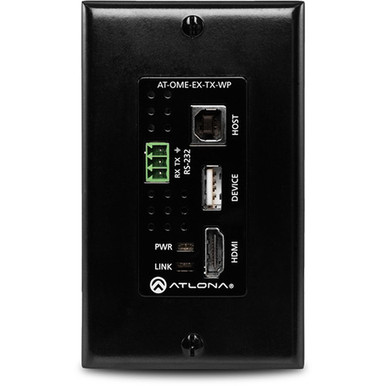

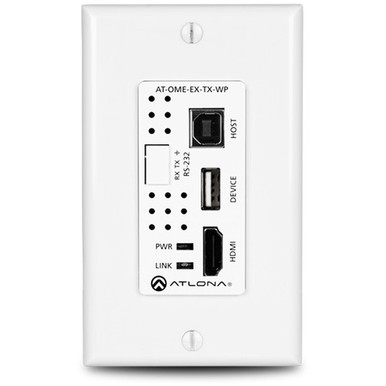

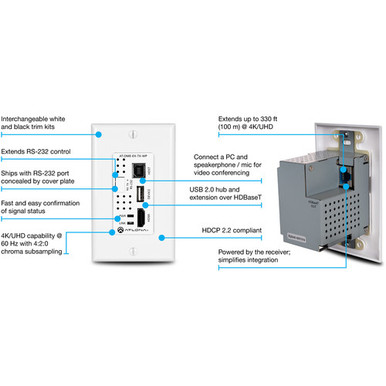

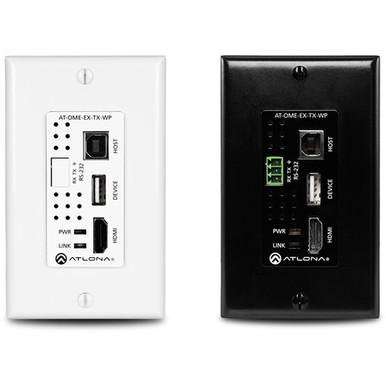

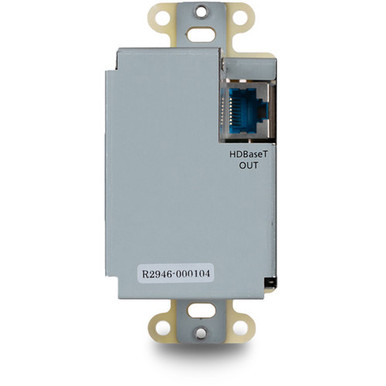

The AT-OME-EX-TX-WP Omega 4K HDMI/USB Wall Plate Transmitter from Atlona is an HDBaseT transmitter for video up to 4K60 4:2:0, plus embedded audio, control, and USB over distances up to 330′. It features a US one-gang wall plate form factor, and includes interchangeable black and white wall plates and faceplates.
HDMI Specification Color Space YUV, RGB, Depth 8-bit, 10-bit, 12-bit Audio Pass-through
HDMI Specification Chroma Subsampling 4:4:4, 4:2:2, 4:2:0
HDMI Specification PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos , DTS , DTS-HD Master Audio , DTS:X Sample Rate 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz Bit Depth Up to 24-bit USB Signal 2.0 Maximum Data Rate 120 Mbps Internal Hubs
HDMI Specification 1 USB hub Control CEC Pass-through RS-232
Pass-through from control system to sink device; supports baud rates from 2400 to 115200 Connectors
HDMI IN 1 Type A, 19-pin female HDBaseT OUT 1 RJ45 HOST
1 USB Type-B DEVICE 1 USB Type-A RS-232 1 captive screw, 3-pin Indicators and Controls PWR LED indicator 1 LED, green LINK LED indicator 1 LED, yellow
1 USB Type-B DEVICE Resolution / Distance 4K/UHD Feet / Meters 1080p Feet / Meters
1 USB Type-B DEVICE HDMI IN/OUT 15 5 30 10 CAT5e 295 90 330 100 CAT6/6a/7 330 100 330 100 Power Consumption 11.18 W (includes 2.5 W for USB, powered by RX)
USB Power Operating Temperature 32 to 104 F 0 40 C Storage Temperature -4 to +140 F -20 to +60 C
USB Power Operating Humidity (RH) +20 to +90%, non-condensing Chassis
USB Power Dimensions (H x W x D) 4.07 in x 1.80 in x 2.63 in 103.50 mm x 45.80 mm x 67.00 mm Weight 0.40 lb, 180 g Safety CE, RoHS, FCC
