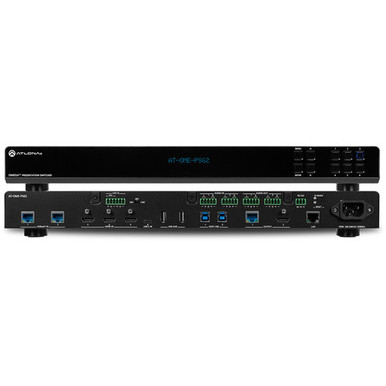

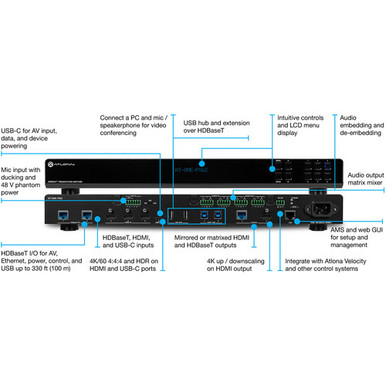

Part of the Omega series of AV integration products, the Atlona Omega 6×2 Matrix Presentation Switcher features HDMI, USB Type-C, and HDBaseT inputs, and HDMI and HDBaseT outputs. Over HDBaseT, it carries 4K/60 4:2:0 video up to 330′. Its HDMI and USB Type-C inputs support up to UHD 4K/60 4:4:4 video. This switcher also supports 4K/60 4:4:4 upscaling and downscaling for the HDMI output.
The Omega products are designed for AV communications and collaboration. The 6×2 offers a USB extension that provides an efficient solution for connecting between USB devices at remote locations, allowing for software video conferencing and use of touch/interactive displays in meeting rooms. It has USB interfaces for three host PCs and two peripheral devices, such as a camera and keyboard.
Applications
- Meeting/conference rooms: The Omega 6×2 can serve as an AV integration centerpiece in a credenza interfacing into sources in the rack plus remote AV and USB data connectivity from wall, table, and display locations.
- Video conferencing: With compatible Omega Series endpoints, this presentation switcher provides interfacing for local and remote USB devices for soft codec conferencing with video and USB switched together between host PCs; as a matrix switcher with scaling, the Omega 6×2 is also ideal for hardware-based video conferencing with the ability to route and optimize any source content to the codec far-end.
- Auditoriums and lecture halls: The HDBaseT output of the Omega 6×2 can be used to extend 4K video to a projector, while the HDMI output serves to optimize for a 1080p or 4K confidence monitor; also available is a mic input and mixing with program audio.
- Active learning classrooms: In education applications, the Omega 6×2 can be installed below each student table, with the HDMI output feeding a local display, and the HDBaseT output used to send content to the main classroom AV switcher and display.
- Lecture capture: The secondary HDMI output can also be used to feed into a lecture capture or streaming video system, with video scaled as appropriate for the application.
HDBaseT, HDMI, and USB Type-C Inputs
- 2 x HDBaseT inputs
- 3 x HDMI inputs
- USB Type-C input
- Provides flexible BYOD capability and integration versatility for local and remote AV sources
USB Type-C Input for AV, Data, and Device Charging
- Provides immediate compatibility with laptops and tablets with USB Type-C ports supporting AV output
- Allows clutter-free, single-cable connectivity to a PC for video conferencing and collaboration
HDBaseT and HDMI Outputs with Selectable AV Switching Modes
- Selectable switching modes available with mirrored or matrixed outputs
- Enables simple configuration and effortless user operation tailored to the specific AV application
Video, Audio, Power, and Data over Twisted Pair HDBaseT
- Transmits and receives 1080p video over 330′ via Cat 5e/6 or DCI/UHD 4K video using Cat 6a/7
USB 2.0 Interfacing and Extension up to 330′
- Maximum 120 Mb/s data rate supported over HDBaseT
- Local USB 3.0 hub with two USB Type-B interfaces for connection to a host PC, plus two USB Type-A ports for a peripheral device such as a microphone, speakerphone, or a keyboard and mouse (most USB 3.0 devices, such as cameras, are backward-compatible with USB 2.0 for HDBaseT extension)
- USB Type-C input is also available for data connection to a host PC or USB peripheral
- Provides an ideal USB integration solution for software video conferencing and other applications
DCI/UHD 4K Capability at 60 Hz
- HDBaseT output supports DCI/UHD 4K at 60 Hz with 4:2:0 chroma subsampling
- HDMI and USB Type-C inputs, and HDMI output, are compatible with 4K HDR10 at 60 Hz and Dolby Vision at 60 Hz as well as HLG (Hybrid Log-Gamma) for 60p HDR broadcast services
DCI/UHD 4K Downscaling and Upscaling for HDMI Output
- Preserves color and spatial detail when downconverting 4K content to 1080p or vice versa
- Ideal for presentation applications where content is to be viewed on 4K and HD displays
- Also ideal for downscaling to 1080p for hardware video conferencing codecs and lecture capture systems
Resolution, Color Space, Subsampling, Color Depth, HDR
- 4096×2160 at 60/50/30/25/24 Hz, 3840 x 2160 at 60/50/30/25/24 Hz, 1080p60/59.9/50/30/29.97/25/24/23.98, 1080i30/29.97/25, 720p60/59.94/50, 576p50, 576i50, 480p60/59.96 Hz, 480i60 Hz (DCI/UHD 4K at 60 Hz only supports 4:2:0)
- VESA: 2560 x 1600, 2048 x 1536, 1920 x 1200, 1680 x 1050, 1600 x 1200, 1440 x 900, 1400 x 1050, 1280 x 1024, 1280 x 800, 1366 x 768, 1360 x 768, 1152 x 864, 1024 x 768, 800 x 600, 640 x 480
- USB Type-C up to DCI/UHD 4K at 60 Hz
- YUV, RGB color space
- 4:4:4, 4:2:2, 4:2:0 chroma subsampling
- 8-bit, 10-bit, 12-bit color depth
- HDR10, Hybrid-Log Gamma (HLG), and Dolby Vision at up to 60 Hz (HDMI and USB Type-C ports only)
Audio
- HDMI / HDBaseT pass-through formats: PCM 2.0, LPCM 5.1, LPCM 7.1, Dolby Digital, Dolby Digital Plus, Dolby
- TrueHD, Dolby Atmos, DTS Digital Surround, DTS-HD Master Audio, and DTS:X
- 2-channel analog audio
- Balanced output: +4 dBu nominal gain, +20 dB headroom
- Frequency response: 20 to 20 kHz, ±0.5 dB
- Impedance: 150 Ohms
- Stereo channel separation: >90 dB
- THD+N: <0.004% at 20 to 20 kHz
- SNR: >103.7 dB at 1 kHz, zero clipping at 0 dBFS, unweighted
- EQ: 5 band, 63/85/250 Hz, 1/4 kHz
- 48V phantom power mic support, enabled/disabled through web GUI. 3-pin mic connection via shared 6-pin Euroblock
- Ducking: Selectable on/off
- Trigger level: Selectable, -60 to -10 dB
- Attack time: Selectable, 1 to 5000 ms
- Release time: Selectable, 1 to 5000 ms
- Sample rate: 32/44.1/48/88.2/96/176.4/192 kHz
Control
- RS-232 device control and configuration
- Bidirectional pass-through from control system over HDBaseT
- Supported Baud Rates: 2400, 4800, 9600, 19200, 38400, 57600, 115200
- IP Protocols: https, Telnet, mDNS
- Modes: DHCP, Static—selectable through front panel and webGUI
Aspect Ratio Control (HDMI Output)
- The aspect ratio of the video can be adjusted to a desired presentation viewing format
- Aspect ratio options include Fill (content fills the display), and Follow (keep original aspect ratio)
Internal Video Test Patterns
- Internal video test patterns for setup, calibration, and troubleshooting (HDMI output)
- Includes color bars, crosshatch, and grayscale
- Test patterns facilitate setting up displays, validating system performance, and diagnosing image display or signal connectivity issues
Power-over-Ethernet (PoE) for Transmitters and Receivers
- Supplies industry standard IEEE 802.3af PoE over HDBaseT to Omega Series and other compatible transmitters and receivers
- Allows convenient endpoint installation at remote locations without the need for local AC power
Automatic Display Control
- Automatically changes display power state based on active or standby mode of the switcher
- Control signals to the display are transmitted via IP, RS-232, or CEC
- Enables display and volume control; CEC enables control of consumer displays (as supported by the display manufacturer)
- Includes an adjustable lamp cooldown mode to avoid prematurely powering up a projector after shutdown
- Enables effortless, automated system operation without the need for an external control system
Automatic Input Selection
- Automatic input selection (available when the switching mode is set to mirrored HDMI and HDBaseT outputs) * using hot plug detect and video detection technology
- Selects active input when sources are connected or if there is a change in source power status
- Enables simplified, automatic system operation without user intervention
Comprehensive Audio Integration Features
- Audio embedding and de-embedding
- Microphone/line-level input with 48V phantom power and automatic ducking
- Volume, mute, and five-band EQ for each output
- Integrated audio processing and optimization features without the need for additional equipment
Audio Output Matrix Mixer
- Mix de-embedded audio along with analog mic/line-level inputs, and route to analog outputs or embedded video outputs
- Eliminates the need for an external audio routing system
Multi-Channel Audio Compliant
- Passes through multichannel audio formats from the HDMI or HDBaseT inputs
- Supports PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, DTS-HD Master Audio, and DTS:X
EDID Management
- Manages EDID communications with the source through a display’s EDID or internally stored EDID
- Ensures desired audio formats and video resolutions are provided to the AV system
HDCP 2.2 Management
- Automatically reports HDCP compliance status to the source based on the sink device
- HDCP compliance can also be disengaged through AMS or a control system
- Allows non-protected material from PCs to pass to non-compliant displays, streaming devices, and teleconference systems; protected content is not transmitted
- Displays a green splash screen as visual confirmation that protected content is being blocked from transmission to a non-compliant display
Integrated HDBaseT Link Testing and Status Monitoring
- Tests integrity of the HDBaseT cable link between each input or output and the corresponding transmitter or receiver
- Web GUI provides real-time link status
- Quick, easy verification or troubleshooting of RJ-45 termination or twisted pair cable quality
Intuitive GUI-Based Configuration
- Offers menu-based configuration of device settings, including network access, input switching, I/O routing for video and audio, signal processing, display control, HDCP and EDID management, and more
- Allows fast configuration of internal product settings and troubleshooting from a mobile device or PC in the field
TCP/IP and RS-232 Control
- Flexible control options for compatibility with the Atlona Velocity control system as well as other third-party control systems
- Reduces integration time and costs
IP to RS-232 Translation
- Converts TCP/IP commands to RS-232 commands for output to external devices over HDBaseT
- Enables single IP connection to control processor to control both IP and RS-232 connected devices at remote endpoints
AMS (Atlona Management System)
- Centralized, network-based configuration and management of Atlona IP-controllable products and systems
- Manage configuration and firmware updates for AV devices spanning a facility, building, enterprise, or residence
- Available as a cost-effective server appliance, or a free software download
Field-Updatable Firmware
- Device can be updated in the field via AMS or the Web GUI
Front-Panel Controls and LCD Menu Display
- Matrix switcher can conveniently be controlled, configured, and monitored from the front panel
- Provides easy setup, user operation, and troubleshooting
Rack-Mountable 1 RU, Full-Rack Width Enclosure
- Installs easily in rackmounted systems with included 19″ rackmount brackets
- Reduces installation time and cost
Compatible Transmitters and Receivers & More
- AT-OME-EX-TX Omega 4K HDMI over HDBaseT Transmitter with USB, Control, and PoE
- AT-OME-EX-TX-WP Omega 4K Wallplate Transmitter for HDMI with HDBaseT Output and USB
- AT-OME-EX-TX-WP-E Omega 4K EU/UK Wallplate Transmitter for HDMI with HDBaseT Output and USB
- AT-OME-TX21-WP-E Omega 4K Two-Input EU/UK Wallplate Switcher for HDMI and USB Type-C with HDBaseT Output
- AT-OME-ST31A Omega 4K Three-Input Switcher for HDMI and USB Type-C with HDBaseT and HDMI Outputs
- AT-HDVS-210U-TX-WP Wallplate Switcher for HDMI and USB Type-C
- AT-HDVS-210H-TX-WP Wallplate Switcher for HDMI
- AT-HDVS-200-TX Three-Input Switcher for HDMI and VGA with Ethernet-Enabled HDBaseT Output
- AT-HDVS-200-TX-WP Two-Input Wallplate Switcher for HDMI and VGA with Ethernet-Enabled HDBaseT Output
- AT-UHD-EX-100CE-TX-PD 4K Remote Powered HDMI Over 328′ HDBaseT Transmitter with Ethernet, Control, and PoE
- AT-OME-EX-RX Omega 4K HDMI Over HDBaseT Receiver with USB, Control, and PoE
- AT-OME-SR21Omega 4K Scaler for HDBaseT and HDMI with USB
- AT-OME-RX21Omega 4K Scaler for HDBaseT and HDMI
- AT-HDVS-SC-RX 4K Scaler for HDBaseT and HDMI
- PKT-3H Architectural Cable Access Enclosure for Three Cables
- AT-LC-UC2UC-2M LinkConnect USB Type-C to USB Type-C Cable
- LC-H2H LinkConnect HDMI to HDMI Cable
- LC-MDP2H LinkConnect Mini DisplayPort to HDMI Cable
- AT-HDVS-CAMPTZ Camera
- AT-GAIN-60 Gain 60 Stereo / Mono Power Amplifier – 60W
- AT-GAIN-120 Gain 120 Stereo / Mono Power Amplifier – 120W
- The Omega 6×2 supports additional Atlona HDBaseT transmitters and switchers for extending AV and control as well as remote device powering
- The Omega 6×2 is not compatible with the Atlona HDVS-300 system for USB extension
