Video Resolutions 4096 x 2160 @ 24/25/30/50/60 Hz, 3840 x 2160 @ 24/25/30/50/60 Hz, 2048 x 1080p, 1080p @ 23.98/24/25/29.97/30/50/59.94/60 Hz, 1080i @ 50/59.94/60 Hz, 720p @ 50/59.94/60 Hz, 576p, 576i, 480p, 480i

VESA Configuration 2560 x 2048, 2560 x 1600, 2048 x 1536, 1920 x 1200, 1680 x 1050, 1600 x 1200, 1600 x 900, 1440 x 900, 1400 x 1050, 1366 x 768, 1360 x 768, 1280 x 1024, 1280 x 800 1280 x 768, 1152 x 768, 1024 x 768, 800 x 600, 640 x 480

Colorspace Standards YCbCr, RGB

Chroma Subsampling 4:4:4, 4:2:2, 4:2:0

Color Depth 8-bit, 10-bit, 12-bit

Audio Formats: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos Sample Rate: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz Bit Rate: Up to 24-bit

Distance Cat 5e/6 @ 4K up to 115′ / 35 m Cat 6a/7 @ 4K up to 130′ / 40 m Cat 5e/6 @ 1080p up to 197′ / 60 m Cat 6a/7 @ 1080p up to 230′ / 70 m HDMI IN/OUT @ 4K up to 15′ / 5 m HDMI IN/OUT @ 1080p up to 30′ / 10 m

Signal Bandwidth: 10.2 Gbps CEC: Pass through HDCP: Supports up to 2.2

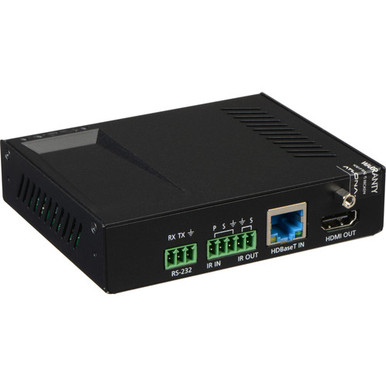

Connectors 1 x Mini-USB type B, firmware 1 x RJ45, HDBaseT 1 x HDMI type A, HDMI output 1 x 5-pin captive screw, IR 1 x 3-pin captive screw, RS-232 1 x PoE from TX

Temperature Operating: 32 to 104 F / 0 to 40 C Storage: -4 to 140 F / -20 to 60 C Humidity: 20 to 90%, non-condensing

Power Consumption 10.89 W

Power Supply Input: 100 – 240 VAC, 50/60 Hz Output: 48 VDC, 0.83 A, CE, FCC, RoHS, cULus, RCM, CCC

Certifications Power Supply: CE, FCC, RoHS, cULus, RCM, CCC Receiver: CE, FCC

Dimensions With Ears: 1.1 x 4.7 x 3.5″ / 27 x 119 x 89 mm Without Ears: 1 x 4.3 x 3.5″ / 25 x 109 x 89 mm

Weight 0.7 lb / 330 g

Package Weight 1.14 lb

Box Dimensions (LxWxH) 8.65 x 7.45 x 2.9″

Atlona AT-UHD-EX Overview Compatible with Ultra High Definition sources and displays

Prepares AV systems for technological improvements, 4K/UHD streaming services, and playback devices HDCP 2.2 Compliant

Atlona AT-UHD-EX Overview Adheres to latest specification for High-bandwidth Content Protection

Atlona AT-UHD-EX Overview Allows protected content stream to pass between devices

Remote-Powered Receiver Industry standard IEEE 802.3af PoE for receiver is supplied by transmitter over HDBaseT

Remote-Powered Receiver Bidirectional Extension of RS-232 and IR Control Commands

Remote-Powered Receiver Control signals travel over HDBaseT link for maximum control system flexibility

Extended Distance HDMI Extension Receives HDMI signals up to 230′ @ 1080p and 130′ @ 4K/UHD using Cat 6a/7 cable

Flexible Bidirectional IR Control Capabilities IR input designed to work with 12V IR receivers for source control Rear Panel I/O Connectors

Flexible Bidirectional IR Control Capabilities Placement of ports on rear panel simplifies wire management

Multi-Channel Audio Compliant Supports PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, and DTS-HD Master Audio

Allows any multi-channel audio stream to be used within a professional audio system Field Updatable Firmware

Front panel USB port provides an easy means for kit upgrades

Ensures long term system return on investment

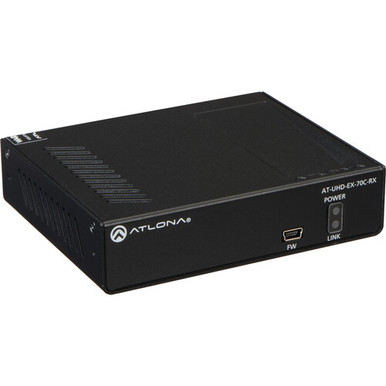

Front Panel Power and Link Status LEDs

LED indicators provide power and HDBaseT link status information

Multi-Channel Audio Compliant Low-profile, 1″ high quarter-rack width enclosure

Multi-Channel Audio Compliant Easy installation in confined spaces behind displays and above projectors Atlona AT-UHD-EXSpecs

Multi-Channel Audio Compliant Colorspace Standards YCbCr, RGB

Multi-Channel Audio Compliant Chroma Subsampling 4:4:4, 4:2:2, 4:2:0

Multi-Channel Audio Compliant Color Depth 8-bit, 10-bit, 12-bit Audio

Multi-Channel Audio Compliant Formats PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos

Multi-Channel Audio Compliant Sample Rate 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

Multi-Channel Audio Compliant Bit Rate Up to 24-bit Distance

Multi-Channel Audio Compliant Cat 5e/6 @ 4K up to 115′ / 35 m, 6a/7 @ 4K up to 130′ / 40 m, 5e/6 @ 1080p up to 197′ / 60 m, 6a/7 @ 1080p up to 230′ / 70 m

Multi-Channel Audio Compliant HDMI IN/OUT @ 4K up to 15′ / 5 m, IN/OUT @ 1080p up to 30′ / 10 m Signal

Multi-Channel Audio Compliant Bandwidth 10.2 Gbps

Multi-Channel Audio Compliant CEC Pass through

Multi-Channel Audio Compliant HDCP Supports up to 2.2 Connectors

1 x Mini-USB type B, firmware 1 x RJ45, HDBaseT

1 x HDMI type A, HDMI output 1 x 5-pin captive screw, IR 1 x 3-pin captive screw, RS-232 1 x PoE from TX Temperature

Multi-Channel Audio Compliant Operating 32 to 104 F / 0 to 40 C

Multi-Channel Audio Compliant Storage -4 to 140 F / -20 to 60 C

Multi-Channel Audio Compliant Humidity 20 to 90%, non-condensing

Multi-Channel Audio Compliant Power Consumption 10.89 W

Power Supply Input 100 – 240 VAC, 50/60 Hz

Power Supply Output 48 VDC, 0.83 A Certifications

Power Supply Receiver CE, FCC Dimensions With Ears: 1.1 x 4.7 x 3.5″ / 27 x 119 x 89 mm Without Ears: 1 x 4.3 x 3.5″ / 25 x 109 x 89 mm Weight 0.7 lb / 330 g Packaging Info Package Weight 1.14 lb

Power Supply Box Dimensions (LxWxH) 8.65 x 7.45 x 2.9″

Video Resolutions	4096 x 2160 @ 24/25/30/50/60 Hz, 3840 x 2160 @ 24/25/30/50/60 Hz, 2048 x 1080p, 1080p @ 23.98/24/25/29.97/30/50/59.94/60 Hz, 1080i @ 50/59.94/60 Hz, 720p @ 50/59.94/60 Hz, 576p, 576i, 480p, 480i
VESA Configuration	2560 x 2048, 2560 x 1600, 2048 x 1536, 1920 x 1200, 1680 x 1050, 1600 x 1200, 1600 x 900, 1440 x 900, 1400 x 1050, 1366 x 768, 1360 x 768, 1280 x 1024, 1280 x 800 1280 x 768, 1152 x 768, 1024 x 768, 800 x 600, 640 x 480
Colorspace Standards	YCbCr, RGB
Chroma Subsampling	4:4:4, 4:2:2, 4:2:0
Color Depth	8-bit, 10-bit, 12-bit
Audio	Formats: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos Sample Rate: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz Bit Rate: Up to 24-bit
Distance	Cat 5e/6 @ 4K up to 115′ / 35 m Cat 6a/7 @ 4K up to 130′ / 40 m Cat 5e/6 @ 1080p up to 197′ / 60 m Cat 6a/7 @ 1080p up to 230′ / 70 m HDMI IN/OUT @ 4K up to 15′ / 5 m HDMI IN/OUT @ 1080p up to 30′ / 10 m
Signal	Bandwidth: 10.2 Gbps CEC: Pass through HDCP: Supports up to 2.2
Connectors	1 x Mini-USB type B, firmware 1 x RJ45, HDBaseT 1 x HDMI type A, HDMI output 1 x 5-pin captive screw, IR 1 x 3-pin captive screw, RS-232 1 x PoE from TX
Temperature	Operating: 32 to 104°F / 0 to 40°C Storage: -4 to 140°F / -20 to 60°C Humidity: 20 to 90%, non-condensing
Power Consumption	10.89 W
Power Supply	Input: 100 – 240 VAC, 50/60 Hz Output: 48 VDC, 0.83 A
Certifications	Power Supply: CE, FCC, RoHS, cULus, RCM, CCC Receiver: CE, FCC
Dimensions	With Ears: 1.1 x 4.7 x 3.5″ / 27 x 119 x 89 mm Without Ears: 1 x 4.3 x 3.5″ / 25 x 109 x 89 mm
Weight	0.7 lb / 330 g

Package Weight	1.14 lb
Box Dimensions (LxWxH)	8.65 x 7.45 x 2.9″
