Key Features

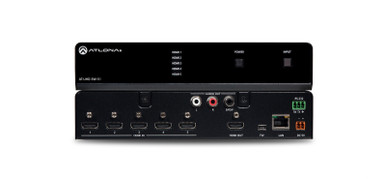

Quickly switch from one of five HDMI inputs to a single display with the Atlona AT-UHD-SW-51 4K/UHD 5-Input HDMI Switcher. Having display switching plus digital and analog audio de-embedding available makes the AT-UHD-SW-51 usable in A/V integration as well as presentation situations. Resolutions up to DCI 4K are supported, and multichannel audio can be passed through or sent out via S/PDIF. Stereo audio can additionally be de-embedded and output through the stereo analog connection. The HDMI output has switchable HDCP 1.4 compliance and EDID management for compatibility with a variety of content sources and displays. This unit can be configured via the OSD using the included remote control or RS-232 connection. The LAN connection offers web-based GUI configuration if you have Atlona’s AMS software installed.
| Resolution Support | Video: 4096 x 2160 24/25/30/50/60 3840 x 2160 24/25/30/50/60 2048 x 1080p 23.98/24/25/29.97/30/50/59.94/60 1080p 23.98/24/25/29.97/30/50/59.94/60 1080i 50/59.94/60 720p 50/59.94/60 576p 480p NTSC / PAL VESA: |
| Colorspace Standards | YUV, RGB |
| Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 |
| Color Depth | 8-bit, 10-bit, 12-bit |
| Format Support | HDMI In/Out: LPCM stereo, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio S/PDIF: |
| Sample Rates | 32/44.1/48/88.2/96/176.4/192 kHz |
| Analog Audio Output | Maximum Output: Balanced +5 dBu @ 0 dBfs; stereo LPCM only |
| Transmission Distance | HDMI In/Out @ 4K: 15′ / 5 m HDMI In/Out @ 1080p: 30′ / 10 m |
| Signal | Bandwidth: 10.2 Gbps CEC: Pass-through HDCP: Switchable (compliant/non-compliant) |
| Connectors | 1 x Mini USB type B, firmware 5 x HDMI type A, HDMI input 1 x HDMI type A, HDMI output 1 x S/PDIF, digital audio output 1 x RCA L/R, analog audio output 1 x RJ45, LAN TCP/IP control 1 x 3-Pin captive screw, RS-232 1 x 2-Pin captive screw, 5 V power input |
| Environmental | Operating: 32 to 122°F / 0 to 50°C Storage: -4 to 140°F / -20 to 60°C Humidity: 20 to 90% Non-condensing |
| Certifications | Power Supply: CE, FCC, cULus, RCM Unit: CE, FCC |
| Power Consumption | 5.9 W |
| Idle Consumption | 1.6 W |
| Power Supply | Input: 100 – 240 VAC, 50/60 Hz Output: 5 VDC, 3.6 A |
| Dimensions | 1.7 x 8.8 x 10.3″ / 44 x 222 x 261 mm 1 RU, 1/2 rack |
| Weight | 3.1 lb / 1.4 kg |
| Package Weight | 5.3 lb |
| Box Dimensions (LxWxH) | 16.9 x 12 x 4″ |
No approved reviews yet for this product.
No approved reviews are available yet for this product.
Checking whether your account is eligible to review this product...
Product Overview
Quickly switch from one of five HDMI inputs to a single display with the Atlona AT-UHD-SW-51 4K/UHD 5-Input HDMI Switcher. Having display switching plus digital and analog audio de-embedding available makes the AT-UHD-SW-51 usable in A/V integration as well as presentation situations.
