Name: Barco R9861612USB1 CX-20 Gen 2 Wireless Collaboration System with 1 Button
SKU: R9861612USB1
Price: $1,999.99 USD
Availability: InStock

Barco CX-20 Overview

With an intuitive plug-and-play interface and improved meeting workflows with the desktop and mobile app, the ClickShare CX-20 Gen 2 Wireless Collaboration System with 1 Button from Barco offers an all-in-one conferencing solution for your office. The Gen 2 model provides fast USB-C 3.1 Gen 1 connectivity with DisplayPort 1.2 and power support. Included in the system is a base unit and button for bring-your-own device compatibility using Windows or Mac operating systems and even iOS and Android phones or tablets. Facilitate both in-person and remote participant sharing with this system.

Connectivity and Integration

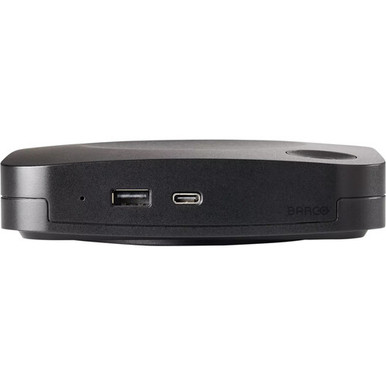

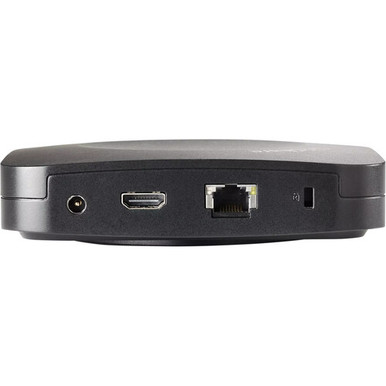

The system itself has a maximum reach of 100′ between the base and button. USB-C 3.1 Gen 1 and USB-A 3.1 Gen 1 connections integrate the CX-20 into your preexisting setup while an HDMI port outputs UHD 4K video to a display of your choice.
Screen sharing and control can be achieved via the button or software application thanks to the base unit’s LAN port.
The USB-C port can also be used with DisplayPort 1.2 output as well as power.

System Compatibility

The system is compatible with both macOS and Windows systems and facilitates screen mirroring via Airplay, Google cast, and Miracast.
Control over the system’s functions can be achieved with the ClickShare desktop or mobile app, which is compatible with Android and iOS devices. Enhanced security keeps the system connected to the cloud while the XMS cloud management platform remotely manages all units.

Upgraded Meeting Workflows

Automatically connect to the meeting room via PresentSense proximity detection or via ClickShare button
ClickShare guides you as a host or participant with HostFlow and can start the meeting from your personal calendar with One-Click-Join
ConferenceView shares your presentation and keeps track of remote participant’s video side by side
Share full screen or application window while keeping your laptop screen private for note taking
When the call ends the meeting room becomes a digital signage display

Barco CX-20 Specs

Inputs / Outputs

USB I/O	1 x USB-C 3.0 / 3.1/3.2 Gen 1 Female Output 1 x USB-A 3.0 / 3.1/3.2 Gen 1 Integrated Male Input
Video I/O	1x HDMI 1.4b Output 1x RJ45 Output

Wireless

Wi-Fi	Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
Mobile App Compatible	Yes: Android & iOS App Name: ClickShare App

Power

Power Source	AC Input, USB
AC Input Power	110 to 220 VAC, 50 / 60 Hz
Power Consumption	5 W 10 W 24 W (Maximum)

Environmental

Certifications	CE, FCC
Operating Temperature	32 to 104°F / 0 to 40°C
Operating Humidity	0 to 85% ()
Storage Temperature	-4 to 140°F / -20 to 60°C
Storage Humidity	0 to 90% (Non-Condensing)

Physical

Color	Black
Dimensions	5.3 x 5.3 x 1.3″ / 135 x 135 x 34 mm (Base Unit)
Weight	31.7 oz / 900 g (Base Unit)

Packaging Info

Package Weight	2.735 lb
Box Dimensions (LxWxH)	10.4 x 6.8 x 3.2″
