Display System 3-Chip Polysilicon TFT LCD
Native Resolution 1280 x 800
Maximum Brightness 3500 Lumens
Throw Ratio 0.28 to 0.37:1
Projection Size 60 to 100″ / 152.40 to 254.00 cm
HDR Support No

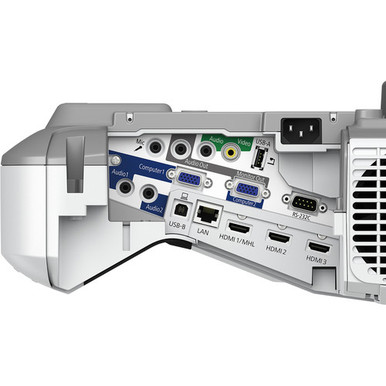

Inputs/Outputs 2x HDMI Audio, Video Input 1x HDMI with MHL Support Audio, Video Input 1x USB-B 2.0 Data Input 1x RCA (Composite) Video Input 3x 1/8″ / 3.5 mm Mini Microphone Input 1x 1/8″ / 3.5 mm Mini Control Input 1x DE-9/DB-9 (RS-232) Control Input 1x DE-15/DB-15 (VGA) Video Output 1x 1/8″ / 3.5 mm Mini Audio Output 1x USB-A 2.0 Power Output 1x RJ45 (Ethernet) LAN Input
Light Source Lamp (1 x UHE)
Supported Resolutions Maximum: 1600 x 1200
Aspect Ratio 16:10
Contrast Ratio 14,000:1
Color Depth 10-Bit (1.07 Billion Colors)
Includes Lens Yes
Focus Manual
Aperture f/1.6
Focal Length 3.7mm
Throw Distance 13.386 to 23.622″ / 34 to 60 cm
Keystone Correction Manual to Vertical: 3 Manual to Horizontal: 3
Digital Zoom 1.35x
Ceiling Mountable No
Rear Screen Projection Yes
Built-In Speaker Yes (Mono)
Speaker Power 16 W
Wireless LAN / Wi-Fi No
Bluetooth No
Lamp Power 250 W
Expected Lamp Life Medium Brightness: 5000 Hours Low Brightness: 10,000 Hours
Fan Noise Medium Brightness: 35 dB Low Brightness: 29 dB
Security Cable Lock Slot Padlock Password Protection
Input Power 120 to 240 VAC, 50 / 60 Hz
Power Consumption Medium Brightness: 373 W Low Brightness: 324 W Standby Mode (Lamp Off): 2.2 W Standby Mode (Lamp Off): 0.23 W
Dimensions (W x H x D) 14.5 x 7.4 x 15.8″ / 36.8 x 18.8 x 40.1 cm (Including feet) 14.5 x 5.9 x 15.8″ / 36.8 x 15.0 x 40.1 cm (Excluding feet)
Weight 12.6 lb / 5.7 kg
Package Weight 19.5 lb
Box Dimensions (LxWxH) 21.4 x 19.3 x 10.2″

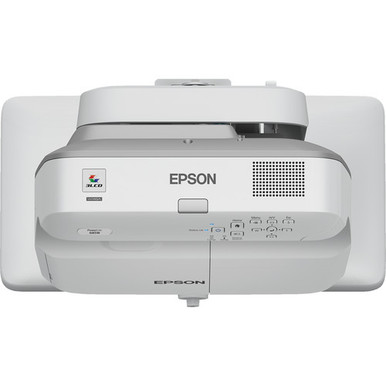

Epson 685W Overview High Color and White Brightness Levels
Epson 685W Overview Both color and white brightness of 3500 lumens.

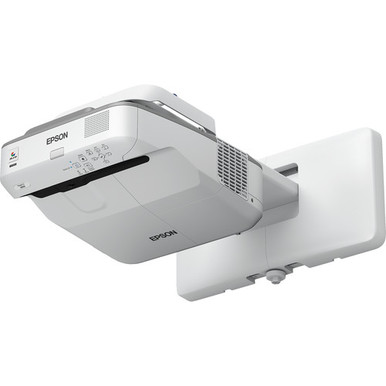

Ultra-Short Throw Projector Can be mounted only 11″ from the board or screen for a projected image as large as 100″ diagonal, with virtually no shadow interference. Split Screen
Simultaneously project two images (video or still) side-by-side from two different sources. Built-In Speaker
Ultra-Short Throw Projector The PowerLite 685W features a microphone input and built-in 16W speaker to amplify the audio of the presentation. You can also pass the signal through to external speakers, even in standby mode.
Ultra-Short Throw Projector USB Plug & Play
Ultra-Short Throw Projector Instantly project images from a Windows or Mac computer using a USB connection.
Ultra-Short Throw Projector 3LCD Color Accuracy 3LCD, 3-chip technology is designed to provide enhanced color brightness and a wider color gamut.
Ultra-Short Throw Projector Simultaneously Display and Control Multiple Device Screens
Ultra-Short Throw Projector Wirelessly share content from up to four devices including Chromebooks, iOS, Android, Mac, and Windows devices, with Moderator software.
Ultra-Short Throw Projector Designed for easy network connectivity with included software. Versatile Connectivity With three HDMI inputs, the PowerLite 685W supports multiple HD A/V devices; one HDMI input supports MHL for connecting compatible mobile devices. Epson 685WSpecs Display System 3-Chip Polysilicon TFT LCD
Ultra-Short Throw Projector Native Resolution 1280 x 800 Maximum Brightness 3500 Lumens
Ultra-Short Throw Projector Throw Ratio 0.28 to 0.37:1
Ultra-Short Throw Projector Projection Size 60 to 100″ / 152.40 to 254.00 cm
HDR Support No Inputs/Outputs 2x HDMI Audio, Video Input
HDR Support No Inputs/Outputs 1x HDMI with MHL Support Audio, Video Input
1x USB-B 2.0 Data Input
1x RCA (Composite) Video Input 3x 1/8″ / 3.5 mm Mini Microphone Input 1x 1/8″ / 3.5 mm Mini Control Input 1x DE-9/DB-9 (RS-232) Control Input
1x DE-15/DB-15 (VGA) Video Output 1x 1/8″ / 3.5 mm Mini Audio Output
1x USB-A 2.0 Power Output
1x RJ45 (Ethernet) LAN Input Light Source Lamp (1 x UHE) Image Display Display System 3-Chip Polysilicon TFT LCD, LAN Input
HDR Support No Inputs/Outputs Native Resolution 1280 x 800 Supported Resolutions
HDR Support No Inputs/Outputs Maximum 1600 x 1200 Maximum Brightness 3500 Lumens
HDR Support No Inputs/Outputs Aspect Ratio 16:10
HDR Support No Inputs/Outputs Contrast Ratio 14,000:1
HDR Support No Inputs/Outputs Color Depth 10-Bit (1.07 Billion Colors) Lens Includes Lens Yes Focus Manual Aperture f/1.6
HDR Support No Inputs/Outputs Focal Length 3.7mm
HDR Support No Inputs/Outputs Throw Distance 13.386 to 23.622″ / 34 to 60 cm, Ratio 0.28 to 0.37:1
HDR Support No Inputs/Outputs Projection Size 60 to 100″ / 152.40 to 254.00 cm Features Keystone Correction
Manual to Vertical 3
Manual to Horizontal 3
HDR Support No Inputs/Outputs HDR Support No Digital Zoom 1.35x Ceiling Mountable No Rear Screen Projection Yes Built-In Speaker Yes (Mono) Speaker Power 16 W
Input/Output Connectors Inputs/Outputs 2x HDMI Audio, Video Input
Input/Output Connectors Inputs/Outputs 1x HDMI with MHL Support Audio, Video Input
Input/Output Connectors Inputs/Outputs Wireless LAN / Wi-Fi No Bluetooth No General Light Source Lamp (1 x UHE) Lamp Power 250 W Expected Lamp Life
Input/Output Connectors Inputs/Outputs Medium Brightness 5000 Hours
Input/Output Connectors Inputs/Outputs Low Brightness 10,000 Hours
Fan Noise Medium Brightness 35 dB
Fan Noise Low Brightness 29 dB Security Cable Lock Slot Padlock Password Protection
Fan Noise Input Power 120 to 240 VAC, 50 / 60 Hz
Power Consumption Medium Brightness 373 W
Power Consumption Low Brightness 324 W
Standby Mode (Lamp Off) 2.2 W, 0.23 W
Power Consumption Dimensions (W x H x D) 14.5 x 7.4 x 15.8″ / 36.8 x 18.8 x 40.1 cm (Including feet) 14.5 x 5.9 x 15.8″ / 36.8 x 15.0 x 40.1 cm (Excluding feet) Weight 12.6 lb / 5.7 kg Packaging Info Package Weight 19.5 lb
Power Consumption Box Dimensions (LxWxH) 21.4 x 19.3 x 10.2″
