Display System 3-Chip LCD
Native Resolution 1280 x 800
Maximum Brightness White: 4100 Lumens Color: 4100 Lumens
Throw Ratio 0.27 to 0.37:1
Projection Size 53 to 150″ / 1.3 to 3.8 m
HDR Support No
Inputs/Outputs 3x HDMI Audio, Video Input 1x DE-15/DB-15 (VGA) Video Input 2x 1/8″ / 3.5 mm Mini Audio Input 1x DE-15/DB-15 (VGA) Video Output 2x 1/8″ / 3.5 mm Mini Audio Output 1x RCA (Composite) Video Input 1x 1/8″ / 3.5 mm Mini Microphone Input 1x USB-B Data Input/Output 2x USB-A Data, Power Input/Output 1x RJ45 (Ethernet) LAN Input/Output 1x DE-9/DB-9 (RS-232) Service Input/Output
Light Source Laser Phosphor
Dynamic Contrast Ratio 2,500,000:1
Color Depth 10-Bit (1.07 Billion Colors)
Includes Lens Yes
Focus Manual
Aperture f/1.6
Focal Length 3.7mm
Throw Distance 13.3 – 36.5″ / 33.8 – 92.7 cm
Keystone Correction Manual to Vertical: 3 Manual to Horizontal: 3
Digital Zoom 1.35x
Multi-Input Support (PIP/PBP) Not Specified by Manufacturer
Built-In Speaker Yes (Mono)
Speaker Power 16 W
HDCP Support Not Specified by Manufacturer
Mobile App Compatible Yes
Wireless LAN / Wi-Fi Yes, Built-in
Bluetooth No
Expected Lamp Life Full Brightness: 20,000 Hours Low Brightness: 30,000 Hours
Fan Noise Full Brightness: 37 dB Low Brightness: 27 dB
Security Cable Lock Slot Password Protection Security Bar
Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Full Brightness: 277 W Low Brightness: 214 W Standby Mode (Lamp Off): 0.5 W
Certifications RoHS
Operating Temperature 32 to 104 F / 0 to 40 C
Dimensions (W x H x D) 14.1 x 5.3 x 15.6″ / 35.8 x 13.5 x 39.6 cm (Excluding Feet)
Weight 13.2 lb / 6 kg
Package Weight 17.805 lb
Box Dimensions (LxWxH) 18.9 x 17.5 x 12.4″

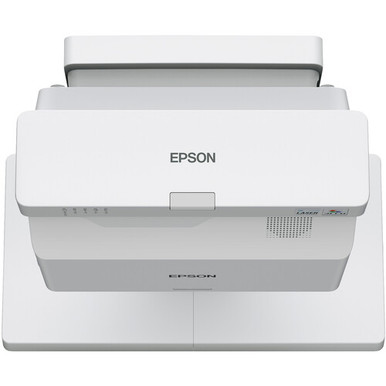

Getting material projected through the PowerLite 760W is easy with support for multiple wired connections and the ability to wirelessly connect via Wi-Fi 5 (802.11ac). If going the wired route, you get three HDMI, one VGA, and an RCA input. Epson Ecosystem

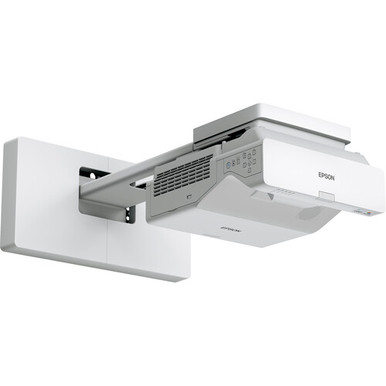

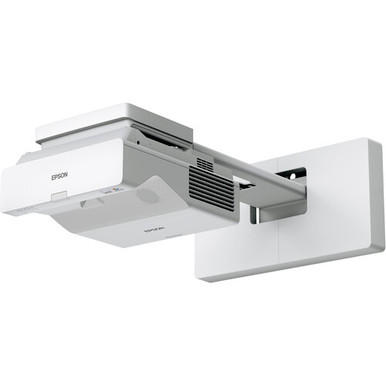

Epson 760W Overview If your institution is already a part of the Epson projector ecosystem, you might be able to easily upgrade to the PowerLite 760W. It is compatible with existing mounts for the 585W, 685W, and 725W projector models. Versatile Installation
Epson 760W Overview The PowerLite 760W can meet your specific needs and location restrictions, with support for 360 placement from landscape to portrait orientations. Split Screen
Epson 760W Overview Say goodbye to waiting for a lamp to warm up. The laser light source within the 760W instantly powers, allowing you to maximize the time you have for lessons or presentations. Epson 760WSpecs Display System 3-Chip LCD
Epson 760W Overview Native Resolution 1280 x 800 Maximum Brightness
Epson 760W Overview White 4100 Lumens
Epson 760W Overview Color 4100 Lumens
Epson 760W Overview Throw Ratio 0.27 to 0.37:1
Epson 760W Overview Projection Size 53 to 150″ / 1.3 to 3.8 m
HDR Support No Inputs/Outputs 3x HDMI Audio, Video Input
1x DE-15/DB-15 (VGA) Video Input 2x 1/8″ / 3.5 mm Mini Audio Input, Output 2x 1/8″ / 3.5 mm Mini Audio Output
1x RCA (Composite) Video Input 1x 1/8″ / 3.5 mm Mini Microphone Input
2x USB-A Data, Power Input/Output
1x RJ45 (Ethernet) LAN Input/Output 1x DE-9/DB-9 (RS-232) Service Input/Output Light Source Laser Phosphor Image Display Display System 3-Chip LCD, LAN Input/Output 1x DE-9/DB-9 (RS-232) Service Input/Output HDCP Support
1x USB-B Data Input/Output Native Resolution 1280 x 800 Maximum Brightness
1x USB-B Data Input/Output White 4100 Lumens
1x USB-B Data Input/Output Color 4100 Lumens, Depth 10-Bit (1.07 Billion Colors) Lens Includes Lens Yes Focus Manual Aperture f/1.6
1x USB-B Data Input/Output Focal Length 3.7mm
Throw Distance Throw Ratio 0.27 to 0.37:1
Throw Distance Projection Size 53 to 150″ / 1.3 to 3.8 m Features Keystone Correction
Manual to Vertical 3
Manual to Horizontal 3
Throw Distance HDR Support No Digital Zoom 1.35x
Throw Distance Multi-Input Support (PIP/PBP)
Throw Distance Not Specified by Manufacturer Built-In Speaker Yes (Mono) Speaker Power 16 W
Input/Output Connectors Inputs/Outputs 3x HDMI Audio, Video Input
1x USB-B Data Input/Output Not Specified by Manufacturer Hardware Mobile App Compatible Yes
1x USB-B Data Input/Output Wireless LAN / Wi-Fi Yes, Built-in Bluetooth No General Light Source Laser Phosphor Expected Lamp Life
1x USB-B Data Input/Output Full Brightness 20,000 Hours
1x USB-B Data Input/Output Low Brightness 30,000 Hours
Fan Noise Full Brightness 37 dB
Fan Noise Low Brightness 27 dB Security Cable Lock Slot Password Protection Security Bar
Fan Noise Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Full Brightness 277 W
Power Consumption Low Brightness 214 W
Standby Mode (Lamp Off) 0.5 W Certifications RoHS
Power Consumption Operating Temperature 32 to 104 F / 0 to 40 C
Power Consumption Dimensions (W x H x D) 14.1 x 5.3 x 15.6″ / 35.8 x 13.5 x 39.6 cm (Excluding Feet) Weight 13.2 lb / 6 kg Packaging Info Package Weight 17.805 lb
Power Consumption Box Dimensions (LxWxH) 18.9 x 17.5 x 12.4″
