Display System 3-Chip 0.67″ Polysilicon TFT LCD
Native Resolution 1920 x 1200
Maximum Brightness White: 5200 Lumens (ISO) Color: 5200 Lumens
Throw Ratio 1.35 to 2.2:1 (80″ Screen Size @ 7.64′ / 2.33 m)
Projection Size 50 to 500″ / 127.0 to 1270.0 cm
HDR Support No

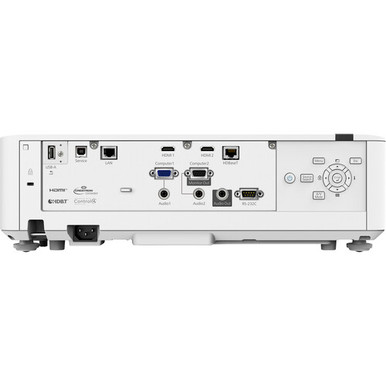

Inputs/Outputs 1x RJ45 (HDBaseT) Audio, Control, Data, Power, Service, Video 2x HDMI Audio, Video Input 2x DE-15/DB-15 (VGA) Video Input 1x DE-15/DB-15 (VGA) Video Output 2x 1/8″ / 3.5 mm Mini Audio Input 1x 1/8″ / 3.5 mm Mini Audio Output 1x USB-A 2.0 Data 1x USB-B 2.0 Service Input 1x RJ45 (Ethernet) LAN 1x DE-9/DB-9 (RS-232) Control
Light Source Laser Phosphor
Supported Resolutions Minimum: 640 x 480 Maximum: 3840 x 2160
Uniformity 86%
Aspect Ratio Native: 16:10 Supported: 16:6
Dynamic Contrast Ratio 2,500,000:1
Color Depth 10-Bit (1.07 Billion Colors)
Scan Horizontal: 15 to 135kHz Vertical: 23.98 to 85Hz
Includes Lens Yes
Focus Manual
Aperture f/1.5 to 1.7
Focal Length 20 to 31.8mm
Optical Zoom Manual: 1.6x
Keystone Correction Horizontal: 30 Vertical: 30
Multi-Input Support (PIP/PBP) Not Specified by Manufacturer
Ceiling Mountable Yes
Rear Screen Projection Yes
Built-In Speaker Yes (Mono)
Speaker Power 10 W
Projection Tilt Option Yes
HDCP Support Not Specified by Manufacturer
Wireless LAN / Wi-Fi No, Optional Adapter Available
Bluetooth No
Expected Lamp Life Full Brightness: 20,000 Hours Low Brightness: 30,000 Hours
Fan Noise Full Brightness: 31 dB Low Brightness: 23 dB
Security Cable Lock Slot Security Bar
Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Full Brightness: 301 W Full Brightness: 232 W Standby Mode (Lamp Off): 2 W
Operating Conditions 32 to 113 F / 0 to 45 C
Dimensions (W x H x D) 17.3 x 4.8 x 12.0″ / 43.9 x 12.2 x 30.5 cm (Excluding Feet) 17.3 x 5.4 x 12.6″ / 43.9 x 13.7 x 32.0 cm (Including Feet)
Weight 17 lb / 7.7 kg
Package Weight 22.365 lb
Box Dimensions (LxWxH) 20.9 x 19.8 x 8.3″
Remarkable sharpness and detail with up to 2,500,000 1 dynamic contrast ratio
Epson L520U Overview The L520U features HDBaseT, two VGA, and two HDMI inputs for connecting various source devices. The onboard 10W speaker enables audio to accompany your presentations without using external speakers. An HDMI cable and an IR remote control are included for added convenience. 3-chip LCD image quality with up to 5200 lumens of color and white brightness for vibrant, rich color
Epson L520U Overview Native WUXGA 1920 x 1200 resolution for true-to-life images
Epson L520U Overview Virtually maintenance-free laser light source that lasts up to 20,000 hours
Epson L520U Overview Flexible projection for images large enough to cover a wall
Epson L520U Overview Variety of connection options, including HDBaseT, HDMI, and VGA, plus RJ45 and RS-232 for remote control
Epson L520U Overview Remarkable sharpness and detail with up to 2,500,000:1 dynamic contrast ratio
Epson L520U Overview Custom brightness and constant brightness modes to maximize light source live and provide a consistent brightness level
Epson L520U Overview Wireless networking with an optional adapter lets you display from your Windows, Mac, or Chromebook computer, iPhone, iPad, or Android mobile device, or via Miracast C2fine LCD A/V mute
25′ remote control operating distance RoHS compliant Recyclable design Epson L520USpecs Display System 3-Chip 0.67″ Polysilicon TFT LCD
Epson L520U Overview Native Resolution 1920 x 1200 Maximum Brightness
Epson L520U Overview White 5200 Lumens (ISO)
Epson L520U Overview Color 5200 Lumens
Throw Ratio Projection Size 50 to 500″ / 127.0 to 1270.0 cm, Size 50 to 500″ / 127.0 to 1270.0 cm Features Keystone Correction
1x RJ45 (HDBaseT) Audio, Control, Data, Power, Service, Video
HDR Support No Inputs/Outputs 2x HDMI Audio, Video Input
HDR Support No Inputs/Outputs 2x DE-15/DB-15 (VGA) Video Input
1x DE-15/DB-15 (VGA) Video Output 2x 1/8″ / 3.5 mm Mini Audio Input 1x 1/8″ / 3.5 mm Mini Audio Output
1x USB-A 2.0 Data
1x USB-B 2.0 Service Input
1x RJ45 (Ethernet) LAN 1x DE-9/DB-9 (RS-232) Control Light Source Laser Phosphor Image Display Display System 3-Chip 0.67″ Polysilicon TFT LCD, LAN 1x DE-9/DB-9 (RS-232) Control HDCP Support
HDR Support No Inputs/Outputs Native Resolution 1920 x 1200 Supported Resolutions
HDR Support No Inputs/Outputs Minimum 640 x 480
HDR Support No Inputs/Outputs Maximum 3840 x 2160 Maximum Brightness
HDR Support No Inputs/Outputs White 5200 Lumens (ISO)
HDR Support No Inputs/Outputs Color 5200 Lumens Uniformity 86%
Aspect Ratio Native 16:10
Aspect Ratio Supported 16:6
Aspect Ratio Color Depth 10-Bit (1.07 Billion Colors) Scan
Aspect Ratio Horizontal 15 to 135kHz
Aspect Ratio Vertical 23.98 to 85Hz Lens Includes Lens Yes Focus Manual Aperture f/1.5 to 1.7
Aspect Ratio Focal Length 20 to 31.8mm Optical Zoom
Aspect Ratio Manual 1.6x
Throw Ratio Horizontal 30
Throw Ratio Vertical 30
HDR Support No Multi-Input Support (PIP/PBP)
HDR Support No Not Specified by Manufacturer Ceiling Mountable Yes Rear Screen Projection Yes Built-In Speaker Yes (Mono) Speaker Power 10 W
Input/Output Connectors Inputs/Outputs 2x HDMI Audio, Video Input
Input/Output Connectors Inputs/Outputs 2x DE-15/DB-15 (VGA) Video Input
Input/Output Connectors Inputs/Outputs Not Specified by Manufacturer Hardware
Input/Output Connectors Inputs/Outputs Wireless LAN / Wi-Fi No, Optional Adapter Available Bluetooth No General Light Source Laser Phosphor Expected Lamp Life
Input/Output Connectors Inputs/Outputs Full Brightness 20,000 Hours
Input/Output Connectors Inputs/Outputs Low Brightness 30,000 Hours
Fan Noise Full Brightness 31 dB
Fan Noise Low Brightness 23 dB Security Cable Lock Slot Security Bar
Fan Noise Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Full Brightness 301 W, 232 W
Standby Mode (Lamp Off) 2 W
Power Consumption Operating Conditions 32 to 113 F / 0 to 45 C
Power Consumption Dimensions (W x H x D) 17.3 x 4.8 x 12.0″ / 43.9 x 12.2 x 30.5 cm (Excluding Feet) 17.3 x 5.4 x 12.6″ / 43.9 x 13.7 x 32.0 cm (Including Feet) Weight 17 lb / 7.7 kg Packaging Info Package Weight 22.365 lb
Power Consumption Box Dimensions (LxWxH) 20.9 x 19.8 x 8.3″
