Display System 3-Chip Polysilicon TFT LCD
Native Chip Resolution 1024 x 768 (XGA)
Supported Resolutions Full HD 1080p – 1920 x 1080
Maximum Brightness 5500 Lumens
Uniformity 87%
Aspect Ratio Native: 4:3 Supported: 16:9 Supported: 16:10
Color Depth 10-Bit (1.07 Billion Colors)
Scan Horizontal: 15 to 92 kHz Vertical: 50 to 85 Hz
Focus Manual
Lens f/1.5 – 2.15 (f = 21.34 – 37.99 mm)
Lens Shift Horizontal: 38% Vertical: 58%
Optical Zoom Manual: 2x
Throw Ratio 1.27 to 2.59:1
Projection Size 30 – 300″ / 76.20 – 762.00 cm
Keystone Correction Horizontal: 30 Vertical: 30
Ceiling Mountable Yes
Rear Screen Projection Yes
Built-In Speaker Yes (Mono)
Speaker Power 10W
Wireless LAN / Wi-Fi None
Light Source Lamp (1 x UHE)
Lamp Power 300 W
Expected Lamp Life Medium Brightness: 10,000 Hours Low Brightness: 5000 Hours
Fan Noise Medium Brightness: 38 dB Low Brightness: 28 dB
Security Cable Lock Slot
Power Consumption Medium Brightness: 462 W Low Brightness: 324 W Standby Mode (Lamp Off): 3 W Standby Mode (Lamp Off): 0.5 W
Dimensions (W x H x D) 8.5 x 6.2 x 13.9″ / 21.6 x 15.7 x 35.3 cm Including feet 14.8 x 4.3 x 11.4″ / 37.6 x 10.9 x 29.0 cm Excluding feet and lens
Weight lb 15.2
Package Weight 23 lb
Box Dimensions (LxWxH) 24.5 x 21.8 x 9.4″

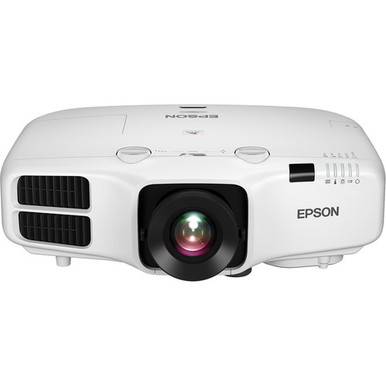

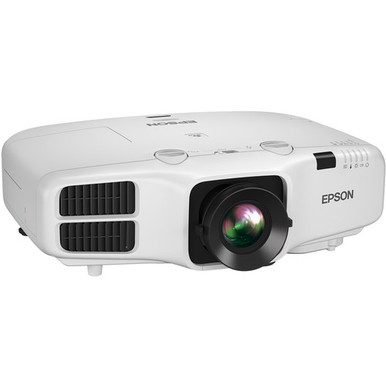

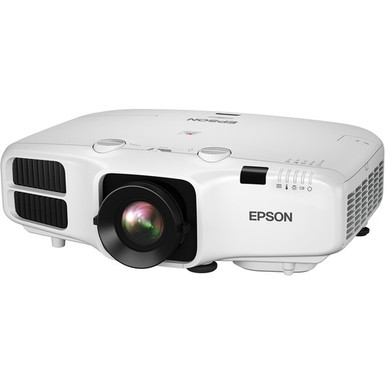

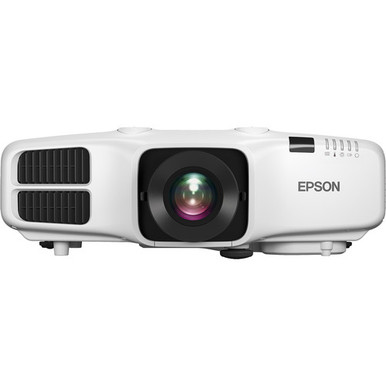

Epson 5510 Overview Enjoy bright, vibrant images with the Epson PowerLite 5510 5500-Lumen XGA 3LCD Projector . Its 5500 lumens of brightness, combined with its 15,000:1 dynamic contrast ratio, will help it overcome ambient light in many situations and help retain detail in dark areas of the image without compromising overall brightness. Its 1024 x 768 native resolution will help ensure that text is clear at most viewing distances.

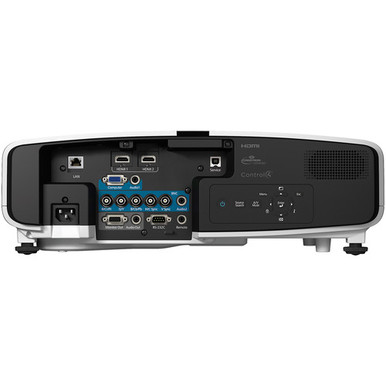

Epson 5510 Overview The PowerLite 5510 features VGA, BNC component, and two HDMI inputs to support various source types. You can output the video to another projector or display with the VGA output. Its 3.5mm audio inputs and output allow for audio transmission to provide a more immersive experience. A VGA cable is included for instant connectivity, and an IR remote is included for convenient control.
Epson 5510 Overview High Color and White Brightness Levels
Epson 5510 Overview Both color and white brightness of 5500 lumens.
Epson 5510 Overview Lens Shift Up to 58% vertical and 38% horizontal lens shift, plus lens shift lock.
View HD content via HDMI for single-cable connectivity. Split Screen
HDMI Connectivity Simultaneously project two images side-by-side from two different sources. Enhanced Detail Up to 15,000:1 contrast ratio for enhanced detail in dark areas of the image.
Versatile Connectivity Options The PowerLite 5510 features multiple connectivity options, making it suitable for integration with nearly any system.
Remote Management and Control Tools The included software allows for remote monitoring and control of networked Epson projectors. The PowerLite 5510 is also compatible with the Crestron RoomView software.
Integration Compatibility The PowerLite 5510 is compatible with Crestron RoomView and Extron systems.
Optional Wireless Networking Present wirelessly with the optional wireless module. Epson 5510 Specs Image Display Display System 3-Chip Polysilicon TFT LCD
Optional Wireless Networking Native Chip Resolution 1024 x 768 (XGA) Supported Resolutions
Full HD 1080p 1920 x 1080 Maximum Brightness 5500 Lumens Uniformity 87%
Aspect Ratio Native 4:3
Aspect Ratio Supported 16:9, 16:10
Aspect Ratio Color Depth 10-Bit (1.07 Billion Colors) Scan
Aspect Ratio Horizontal 15 to 92 kHz
Aspect Ratio Vertical 50 to 85 Hz Lens Focus Manual Lens
Lens Shift Horizontal 38%
Lens Shift Vertical 58% Optical Zoom
Lens Shift Manual 2x
Lens Shift Throw Ratio 1.27 to 2.59:1
Projection Size 30 300″ / 76.20 – 762.00 cm Features Keystone Correction
Projection Size Horizontal 30
Projection Size Vertical 30 Ceiling Mountable Yes Rear Screen Projection Yes Built-In Speaker Yes (Mono) Speaker Power 10W
Input/Output Connectors Wireless LAN / Wi-Fi None General Light Source Lamp (1 x UHE) Lamp Power 300 W Expected Lamp Life
Input/Output Connectors Medium Brightness 10,000 Hours
Input/Output Connectors Low Brightness 5000 Hours
Fan Noise Medium Brightness 38 dB
Fan Noise Low Brightness 28 dB Security Cable Lock Slot
Power Consumption Medium Brightness 462 W
Power Consumption Low Brightness 324 W
Standby Mode (Lamp Off) 3 W, 0.5 W
Power Consumption Dimensions (W x H x D) 8.5 x 6.2 x 13.9″ / 21.6 x 15.7 x 35.3 cm Including feet 14.8 x 4.3 x 11.4″ / 37.6 x 10.9 x 29.0 cm Excluding feet and lens
Power Consumption Weight lb 15.2 Packaging Info Package Weight 23 lb
Power Consumption Box Dimensions (LxWxH) 24.5 x 21.8 x 9.4″
