Display System 3-Chip Polysilicon TFT LCD
Native Chip Resolution 1280 x 800 (WXGA), 1280 x 800 (WXGA) Maximum Brightness
Maximum Brightness White: 3800 Lumens (ISO) Color: 3800 Lumens
Aspect Ratio Native: 16:10
Dynamic Contrast Ratio 2,500,000:1
Color Depth 10-Bit (1.07 Billion Colors)
Focus Manual
Lens f/1.6 (f = 6.4 mm)
Optical Zoom None
Throw Ratio 0.48 to 0.65:1
Projection Size 53 – 120″ / 134.6 – 304.8 cm
Keystone Correction Manual-Horizontal: 15 Manual-Vertical: 15
Supported HDR Input Formats None
Digital Zoom 1.35x
Multi-Input Support (PIP/PBP) Not Specified by Manufacturer
Ceiling Mountable Yes
Built-In Speaker Yes (Mono)
Speaker Power 16W
Remote Yes
Wireless LAN / Wi-Fi Yes, Built-in
Light Source Laser Phosphor
Expected Lamp Life Full Brightness: 20,000 Hours Low Brightness: 30,000 Hours
Fan Noise Full Brightness: 36 dB Low Brightness: 26 dB
Security Security Bar
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Full Brightness: 265 W Low Brightness: 201 W Standby Mode (Lamp Off): 2 W
Dimensions (W x H x D) 12.8 x 3.6 x 13.3″ / 32.5 x 9.1 x 33.8 cm Including Feet
Weight 9.9 lb / 4.5 kg
Package Weight 14.345 lb
Box Dimensions (LxWxH) 20.8 x 16.2 x 9.2″
Convenient short-throw design greatly reduces shadowing
Built-in 5 GHz wireless connectivity supports Miracast and wireless displays via Epson iProjection software; display and share content simultaneously to/from up to 50 connected devices
White 3800 Lumens (ISO)
Color 3800 Lumens
Aspect Ratio Native 16:10
Aspect Ratio Color Depth 10-Bit (1.07 Billion Colors) Lens Focus Manual Lens f/1.6 (f = 6.4 mm) Optical Zoom None
Aspect Ratio Throw Ratio 0.48 to 0.65:1
Projection Size 53 120″ / 134.6 – 304.8 cm Features Keystone Correction
Projection Size Manual-Horizontal 15
Projection Size Manual-Vertical 15
Projection Size Supported HDR Input Formats None Digital Zoom 1.35x
Projection Size Multi-Input Support (PIP/PBP)
Projection Size Not Specified by Manufacturer Ceiling Mountable Yes Built-In Speaker Yes (Mono) Speaker Power 16W Remote Yes

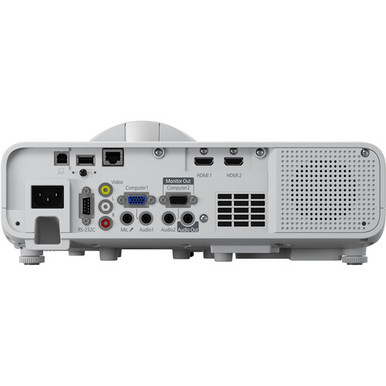

2 x HDMI (HDMI Type-A) Audio, Video Input
Input/Output Connectors Inputs/Outputs 1 x VGA (DE-15/DB-15) Video Input, x VGA (DE-15/DB-15) Video Input/Output, x Composite (RCA) Video Input
1 x 2RCA Audio Input 2 x 1/8″ / 3.5 mm Mini Audio Input 1 x 1/8″ / 3.5 mm Mini Audio Output 1 x 1/8″ / 3.5 mm Mini Microphone Input 1 x RS-232 (DE-9/DB-9) Control Input
1 x USB 2.0 (USB Type-A) Data Input, 2.0 (USB Type-B) Data
1 x Ethernet (RJ45) LAN Hardware
Input/Output Connectors Inputs/Outputs Wireless LAN / Wi-Fi Yes, Built-in General Light Source Laser Phosphor Expected Lamp Life
Input/Output Connectors Inputs/Outputs Full Brightness 20,000 Hours
Input/Output Connectors Inputs/Outputs Low Brightness 30,000 Hours
Fan Noise Full Brightness 36 dB
Fan Noise Low Brightness 26 dB Security Security Bar
Fan Noise AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Full Brightness 265 W
Power Consumption Low Brightness 201 W
Standby Mode (Lamp Off) 2 W
Power Consumption Dimensions (W x H x D) 12.8 x 3.6 x 13.3″ / 32.5 x 9.1 x 33.8 cm Including Feet Weight 9.9 lb / 4.5 kg Packaging Info Package Weight 14.345 lb
Power Consumption Box Dimensions (LxWxH) 20.8 x 16.2 x 9.2″
