For schools and offices that require high-quality, cost-effective, low-maintenance projection with flexible installation, then the InFocus Quantum Laser Core II 4100-Lumen XGA Laser DLP Projector can be an ideal solution. The Core II requires no lamp as it uses InFocus’s Quantum Laser light source. This is a low-cost solution that uses less energy than conventional projectors, and does not require lamp replacement. The housing offers IP6X-rated dust resistance, allowing the Core II to run 24/7 in nearly any environment and removes the need for filter replacement. Add InFocus’s SuperSmartProject suite of features, along with 360° horizontal installation, and the Core II can easily be adapted to work in most any space.

SuperSmartProject

InFocus’s SuperSmartProject is the name given to a suite of power-saving and optimization features that include the following:

Instant Power On/Off: The projector powers on and off when the power to the projector is turned on and off
Signal Power On: The projector is powered on when an HDMI signal is detected
Auto Power Off: The projector automatically powers off during a period of inactivity
10-step illumination reduction
Dynamic Black optimization

Key Features

Brightness of 4100 Lumens
XGA 1024 x 768 Native Resolution
Quantum Laser Light Source
IP6X-Rated Dust Resistance
No Lamp or Filter Replacement Needed
Designed for 24/7 Operation
SuperSmartProject Power-Saving Features
360° Horizontal Installation
Landscape or Portrait Projection
Ceiling Mountable

Additional Features

Two HDMI 1.4 inputs
USB-A port for powering an optional streaming dongle
Support for 4K source material
30,000-hour laser lifespan
Keystone image correction
Packaging made from 99% recyclable material

Specifications

Key Specs
Display System 0.55″ DLP
Native Resolution 1024 x 768
Maximum Brightness 4100 Lumens
Throw Ratio 1.94 to 2.16:1
HDR Support No,

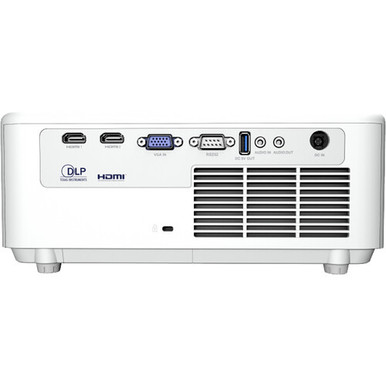

Inputs/Outputs
2x HDMI 1.4 Audio, Video Input
1x DE-15/DB-15 (VGA) Video Input
1x RCA (Composite) Video Input
1x 1/8″ / 3.5 mm Mini Audio Input
1x DE-15/DB-15 (VGA) Video Output
1x USB-A Power Output
1x 1/8″ / 3.5 mm Mini Audio Output
1x DE-9/DB-9 (RS-232) Control Input/Output
1x USB-A Service Input/Output
Light Source Laser Phosphor

Image Display
Display System 0.55″ DLP
Native Resolution 1024 x 768
Supported Resolutions Maximum: 3840 x 2160
Maximum Brightness 4100 Lumens
Uniformity 85%
Offset 115%
Aspect Ratio Native: 4:3
Dynamic Contrast Ratio 3,500,000:1
Scan
Horizontal: 15 to 100 kHz
Vertical: 24 to 120 Hz

Lens
Includes Lens Yes
Focus Manual
Aperture f/2.41 to 2.53
Focal Length 21.85 to 24mm
Optical Zoom 1.1x
Throw Distance 3.3 – 32.8′ / 1 – 10 m
Throw Ratio 1.94 to 2.16:1

Features
Keystone Correction Auto / Manual to Vertical: ± 30°
HDR Support No,
Digital Zoom 2.0x
Multi-Input Support (PIP/PBP) Not Specified by Manufacturer
Ceiling Mountable Yes
Built-In Speaker No

Input/Output Connectors
Inputs/Outputs
2x HDMI 1.4 Audio, Video Input
1x DE-15/DB-15 (VGA) Video Input
1x RCA (Composite) Video Input
1x 1/8″ / 3.5 mm Mini Audio Input
1x DE-15/DB-15 (VGA) Video Output
1x USB-A Power Output
1x 1/8″ / 3.5 mm Mini Audio Output
1x DE-9/DB-9 (RS-232) Control Input/Output
1x USB-A Service Input/Output
HDCP Support Not Specified by Manufacturer

Hardware
Mobile App Compatible No
Wireless LAN / Wi-Fi No
Bluetooth No

General
Light Source Laser Phosphor
Expected Lamp Life Full Brightness: 30,000 Hours
Fan Noise
Full Brightness: 30 dB
Low Brightness: 28 dB
Security
Cable Lock Slot
Password Protection
Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption
Full Brightness: 139 W
Low Brightness: 88 W
Standby Mode (Lamp Off): < 0.5 W
Certifications CE, EAC, RoHS, cTUVus, CCC, FCC, NOM
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature 14 to 140°F / -10 to 60°C
Operating Humidity 0 to 85%
Storage Humidity 0 to 85%
Dimensions (W x H x D) 8.5 x 4.6 x 10.9″ / 21.6 x 11.6 x 27.8 cm
Weight 6.4 lb / 2.9 kg

Packaging Info
Package Weight 9.67 lb
Box Dimensions (LxWxH) 15.7 x 11.1 x 6.3″

InFocus Quantum Laser Core II 4100-Lumen XGA Laser DLP Projector

Free Shipping on All Orders Warranty Included

Product Overview

For schools and offices that require high-quality, cost-effective, low-maintenance projection with flexible installation, then the InFocus Quantum Laser Core II 4100-Lumen XGA Laser DLP Projector can be an ideal solution. The Core II requires no lamp as it uses InFocus s Quantum Laser light source.
