Panel Technology

S-IPS

Viewable Image Size

55 “

Aspect Ratio

16:9

Native Resolution

1920×1080

Pixel Pitch

0.5 mm

Pixels Per Inch

45 @ native resolution

Backlight Type

LED Direct-lit

Brightness (maximum)

500 cd/m²

Contrast Ratio (typical)

1200:1 (without local dimming)

Viewing Angle (typical)

178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10

Response Time (Gray to Gray)

8 ms

Refresh Rate

60Hz

Active Screen Area

47.62 x 26.79 in. / 1209.6 x 680.4mm

Orientation

Landscape/Portrait

Displayable Colors

More than 1.07 billion

Horizontal (Analog/Digital)

Analog: 15.625/15.734/~31.5-~91.1 kHz, Digital: ~25.0 – ~91.1-~134.0KHz

Video

Analog RGB 0.7 Vp-p/75 Ohms , Digital TMDS / DisplayPort

Sync

Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)

Factory Calibration

Yes

Sensor Calibration (through USB)

Yes, External

Calibration with Software

NEC Display Wall Calibrator (KT-LFD-CC2)

Calibration Software

NEC Display Wall Calibrator (KT-LFD-CC2)

PC Signal Compatibility

Yes

Macintosh Signal Compatibility

Yes

Video

Analog RGB 0.7 Vp-p/75 Ohms , Digital TMDS / DisplayPort

Sync

Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)

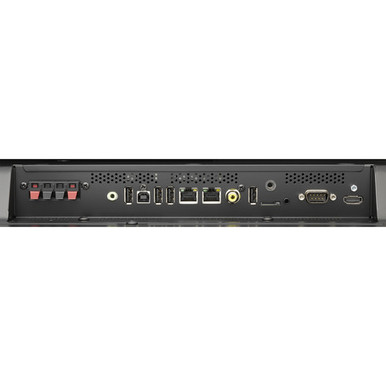

Input Terminals

Analog:

VGA 15-pin D-sub

Digital:

DisplayPort 1.1/1.2 x2, HDMI 1.4/2.0 x2, DVI-D

Audio:

Audio Mini-Jack x2, DisplayPort Audio, HDMI Audio

External Control:

RS-232C, LAN (100Mb), 3.5mm Mini-Jack (IR Remote)

Data:

microSD (Media Player), USB 2.0 (Media Player, USB (Service), USB Type-B (Upstream), USB x 2 (Both for Compute Module, 1 x 5V/2A Powered)

Output Terminals

Digital:

DisplayPort (Output DisplayPort1 and OPTION (DP)), HDMI (Outputs HDMI1, DVI and OPTION (TMDS))

Audio:

3.5mm Mini-Jack, External Speaker Jack (2)

External Control:

LAN (100Mb)

On

110W

ECO Mode Standby

<0.5W

Power Consumption (max)

165W (Brightness Max), 315W (All Functions Maxed)

Input Current

3.6A @ 100V, 1.4A @ 240V

Bezel Width (Left/Right, Top/Bottom)

0.09 in./0.05 in., 0.09 in./0.05 in. : 2.3 mm/1.2 mm, 2.3 mm/1.2 mm

Dimensions (WxHxD)

Without stand:

47.8 x 27 x 4.1 in. / 1213.4 x 684.2 x 103.8 mm

Shipping:

56.5 x 34.4 x 12.5 in. / 1436.0 x 873.0 x 317.0mm

Weight

Net Weight (with stand):

61.9 lbs. / 28.1kg

Net Weight (without stand):

61.9 lbs. / 28.1 kg.

Shipping:

83.8lbs. / 38.0kg

VESA Hole Configuration

400 x 400mm (4-hole, M6)

Operating Temperature

41-104°F / 5-40°C

Operating Humidity

20-80%

Operating Altitude

9843 ft. / 3000m

Storage Temperature

-4-140°F / -20-60°C

Storage Humidity

10-90%

Storage Altitude

40,000 ft. / 12,192m

3 years

• Advanced thermal capabilities
• Ethernet Control and Communication
• RS-232 Control and Communication
• Landscape/portrait capable
• Carbon footprint meter
• SpectraView Engine Capabilities
• Scheduler (w/ Real-Time Clock and Holiday mode)
• Self Calibration to external color sensor
• White Copy Function
• Screen saver function
• 4K UHD Daisy Chain capabilities
• Optional human sensor

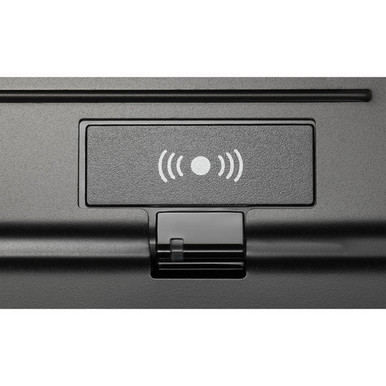

• Intelligent Wireless Data (Near Field Communications)
• Raspberry Pi Compute Module Slot
• Expanded daisy chain (DP 1.2/HDMI 2.0)
• 6-axis color adjustment
• Metal rear cabinet
• Handles
• Variable picture modes
• Advanced video settings (Noise Reduction, Adaptive Contrast)
• Input labeling
• Backlight adjust
• Frame Comp Capabilities
• Internal Media Player via microSD or USB
• HDR Emulation
• Aspect ratio control
• LED direct-lit backlighting

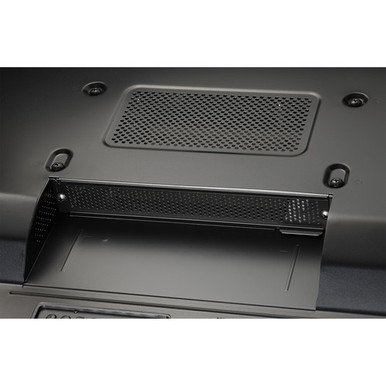

• OPS/Expansion slot

Optional

• Display Wall Calibrator Kit (KT-LFD-CC2)
• Human/IR Sensor Accessory (KT-RC3)
• Table Top Stand (ST-551)
• Overframe Bezel Kit (KT-55UN-OF5)
