Panel Technology S-IPS
Aspect Ratio 16:9
Supported Resolutions DisplayPort: Up to 4096 x 2160 (60Hz), HDCP 1.3/2.2 HDMI: Up to 4096 x 2160 (60Hz), HDCP 1.4/2.2
Pixels Per Inch 59 PPI
Contrast Ratio (typical) 1200:1, 10,000:1 Dynamic

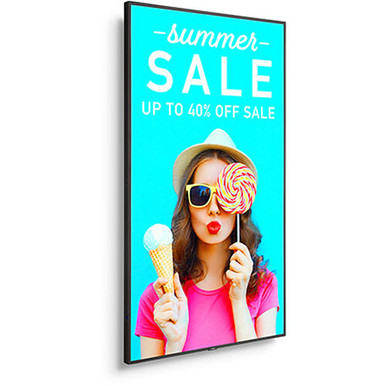

Orientation Landscape/Portrait
Displayable Colors 1.07 billion (dithered)
Horizontal (Analog/Digital) Digital: 15.0 – 136.0kHz
PC Signal Compatibility Yes
On 195W
Network Standby 2W
Input Current 4.4A @ 100V 1.9A @ 240V
Bezel Width (Left/Right, Top/Bottom) 0.58 in./0.58 in., 0.58 in./0.58 in. : 14.8 mm/14.8 mm, 14.8 mm/14.8 mm
Operating Temperature 32-104 F / 0-40 C
Operating Altitude 9843 ft. / 3000m
Storage Humidity 10-90%
Display Technology LCD w/ LED backlight
Optional Table Top Stand (ST-801)) Tilt Wall Mount (WMK-3298T) IR/Human Sensor (KT-RC3))
NEC C750Q Overview NaViSet Administrator 2 Software Solution
Integrated Ambient Light Sensor Input Detect Function Integrated Media Player Premium Grade Panel Flexible Orientation Option Anti-Glare Screen Product Specifications Display Panel Technology S-IPS Viewable Image Size 75 “
Integrated Ambient Light Sensor Aspect Ratio 16:9
Integrated Ambient Light Sensor Native Resolution 3840×2160 Supported Resolutions
Integrated Ambient Light Sensor DisplayPort Up to 4096 x 2160 (60Hz), HDCP 1.3/2.2
Integrated Ambient Light Sensor HDMI Up to 4096 x 2160 (60Hz), HDCP 1.4/2.2 Pixel Pitch 0.43 mm Pixels Per Inch 59 PPI
Integrated Ambient Light Sensor Brightness (maximum) 350 cd/m 2
Integrated Ambient Light Sensor Contrast Ratio (typical) 1200:1, 10,000:1 Dynamic Response Time (typical) 8 ms Orientation Landscape/Portrait Dimming Capability Local Dimming Capable Displayable Colors 1.07 billion (dithered) Synchronization Range Horizontal (Analog/Digital)
Integrated Ambient Light Sensor Digital 15.0 – 136.0kHz Vertical, 23.0Hz – 76.0Hz
Signal Compatibility/Connectivity PC Signal Compatibility Yes

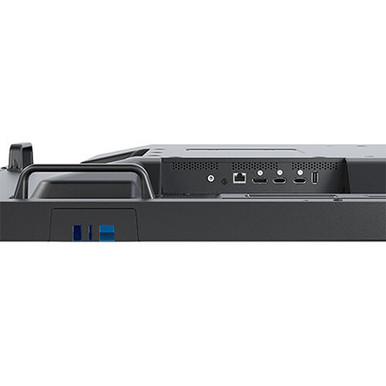

Input Terminals Digital HDMI (2.0 x 2 with HDCP 2.2), DisplayPort (1.2 with HDCP) Audio: DisplayPort Audio x1, HDMI Audio x2 External Control: RS-232C, LAN (100Mb), 3.5mm Mini-Jack (IR Remote) Data: USB 2.0 (Media Player, 5V/2A Power)
Output Terminals Audio 3.5mm Mini-Jack
Macintosh Signal Compatibility Yes Power Consumption (typical) On 195W ECO Mode Standby 0.5W Network Standby 2W, (max)
Macintosh Signal Compatibility Yes 250W (Brightness Max) / 375W (Volume/Brightness Max, OPS Active)
Macintosh Signal Compatibility Yes Input Current 4.4A @ 100V 1.9A @ 240V
Macintosh Signal Compatibility Yes Power Requirements 100-240V AC, 50/60 Hz Physical Specifications
Macintosh Signal Compatibility Yes Bezel Width (Left/Right, Top/Bottom)
Macintosh Signal Compatibility Yes Dimensions (WxHxD) With stand: 1681.2 x 996.8 x 606mm / 66.19 x 39.24 x 23.9 in. Without stand: 66.19 x 37.78 x 2.8 in. / 1681.2 x 959.6 x 71.1 mm Shipping: 1830.0 x 1190.0 x 280.0mm / 72.05 x 46.85 x 11.02 in. Weight
Net Weight (with stand) 126.1 lbs. / 57.20kg
Net Weight (without stand) 116 lbs. / 52.61 kg. Shipping: 144.4 lbs. / 65.5kg Environmental Conditions
Macintosh Signal Compatibility Yes Operating Temperature 32-104 F / 0-40 C
Macintosh Signal Compatibility Yes Operating Humidity 20-80%, Altitude 9843 ft. / 3000m Storage Temperature -4-140 F / -20-60 C Storage Humidity 10-90% Storage Altitude 40,000 ft. / 12,192m
Macintosh Signal Compatibility Yes Limited Warranty (parts & labor) 3 Years Advanced Exchange Additional Features AMX Support
Macintosh Signal Compatibility Yes Automated Email Alert Function CEC Support through HDMI Crestron Connected Support Display Browser Control
HDR Compatible Key Guide NaViSet Administrator 2 Compatible
HDR Compatible Key Guide Power USB Port (5V/2A)
HDR Compatible Key Guide Integrated ATSC/NTSC Tuner in OPS Slot Removeable Logo Ornament Real Time Clock Local Dimming TileMatrix SNMP
Integrated USB Media Player Integrated Temperature sensors Integrated Cooling Fans
Full Input Detect Functionality Integrated Ambient Light Sensor Programmable Gamma Scheduler Function Off Timer Vacation Switch Optical Display Technology LCD w/ LED backlight Accessories Optional Table Top Stand (ST-801)) Tilt Wall Mount (WMK-3298T) IR/Human Sensor (KT-RC3))
