Screen Size (Diagonal) 65″
Resolution 3840 x 2160
Panel Type VA LCD
Brightness 500 cd/m (Maximum)
Viewing Angle (H x V) 178 x 178
Screen Area 56.22 x 31.61″ / 142.8 x 80.3 cm
Aspect Ratio 16:9
Contrast Ratio 4000:1
Refresh Rate 60 Hz
Horizontal Frequency 26 to 135 kHz (Analog) 26 to 135 kHz (Digital)
Dot Pitch 0.37 x 0.37 mm
Pixels Per Inch (ppi) 68 ppi
Primary Connectivity Location Display

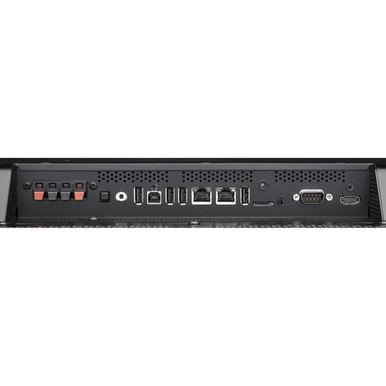

Input Ports 3 x HDMI 2.0 Audio, Video 2 x DisplayPort 1.2 Audio, Video 1 x 1/8″ / 3.5 mm Audio
Output Ports 1 x DisplayPort Audio, Video 1 x 1/8″ / 3.5 mm Audio 2 x Speaker Terminal Audio
USB Ports 1 x USB 2.0 1 x USB (Version Unspecified) – Service 1 x USB (Version Unspecified) Type-B 2 x USB (Version Unspecified)
Ethernet Ports 1
Control RS-232C via DE-9/DB-9 Input IP via RJ45 IR
Digital Media Slot microSD (Unspecified Type)
Number of OPS/Expansion Slots 2
TV Tuner Yes – ATSC

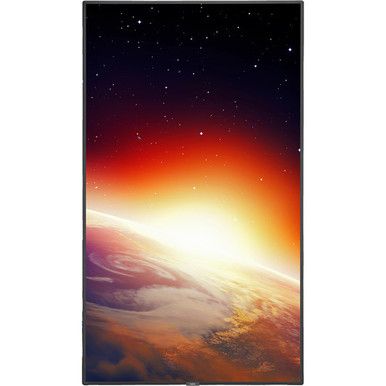

Display Orientation Landscape, Portrait
HDCP Support Yes
Haze Level 44%
Built-In Speakers Yes, 2 x 10 W
Power Consumption Typical: 230.0 W Network Standby: 2.0 W Economy Mode: 0.5 W Maximum: 410.0 W
AC Input Power 100 to 240 VAC, 50 / 60 Hz at 2.0 to 4.8 A
Operating Temperature 32 to 104 F / 0 to 40 C
Storage Temperature -4 to 140 F / -20 to 60 C
Operating Humidity 20 to 80%
Storage Humidity 10 to 90%
Operating Altitude 9843′ / 3000 m
Storage Altitude 40,000′ / 12,192 m

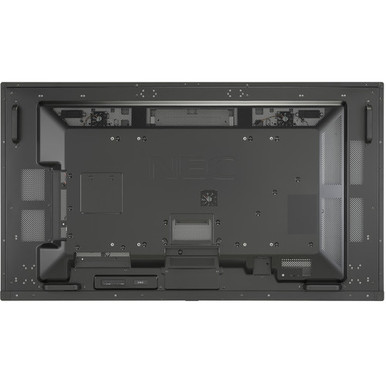

Wall Mounting 400 x 400 mm 600 x 400 mm
Bezel Thickness 12.9 mm (Right/Left) 13.1 mm (Bottom/Top)
Duty Cycle 24 Hours / 7 Days
Dimensions 57.4 x 32.7 x 3.1″ / 145.8 x 83.1 x 7.9 cm (without Stand)
Weight 89.9 lb / 40.78 kg (without Stand)

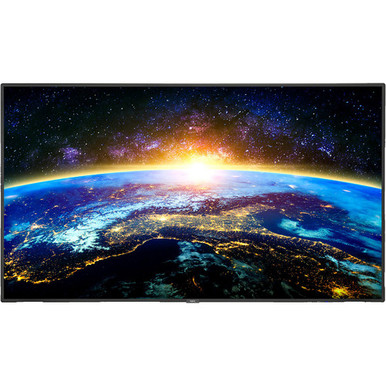

NEC V654Q-AVT2 Overview The 65″ 4K UHD Display with ATSC Tuner from NEC features clear, detailed imagery for unobtrusive digital signage. It has a slim design that allows for integration into any type of environment and a full metal chassis coupled with real-time temperature sensors and integrated cooling fans that maintain the professional quality necessary for commercial environments.
The 65″ display includes three HDMI 2.0 and two DisplayPort 1.2 video inputs. The monitor has a 500 cd/m brightness along with an anti-glare surface that allows for efficient readability when ambient light is present. It is also suitable for 24/7 signage in retail environments and for presentations in corporate or educational institutions. Brightness
500 cd/m brightness combined with UHD resolution and an anti-reflective screen surface will allow for clear visibility in higher ambient light conditions. SpectraView Engine
Allows for complete color, intensity, gamma, or uniformity control for imaging performance. Integrated Media Player
Allows for audio, video, or image playback via USB or SD card.
Thermal protection and internal temperature sensors with self-diagnostics and fan-based technology allows for 24/7 operation. Additional Features Localized dimming On-screen key guide
NEC V654Q-AVT2 Overview Ethernet control and communication
NEC V654Q-AVT2 Overview USB upstream/downstream
NEC V654Q-AVT2 Overview RS-232 control and communication CEC communication
NEC V654Q-AVT2 Overview HDCP 1.4 and 2.2 support through HDMI, 1.3 support through DisplayPort Firmware via USB/Network Image flip TileMatrix (10 x 10) Carbon footprint meter 24/7 scheduler with real time clock Holiday settings Screen saver function Multi-picture mode 44% haze panel Ambient light sensor Screen saver function Optional human sensor
NEC V654Q-AVT2 Overview Intelligent wireless data (near field communications) Metal rear cabinet Carrying handles Variable picture modes
NEC V654Q-AVT2 Overview Advanced video settings (noise reduction, adaptive contrast)
NEC V654Q-AVT2 Overview Input labeling Backlight adjust
NEC V654Q-AVT2 Overview Aspect ratio control Built-in 2 x 10W speakers
Powered USB NaViSet administrator compatible Auto ID/IP address control Crestron roomview support AMX beacon PJLink support
Powered USB HDMI and DisplayPort cables included NEC V654Q-AVT2 Specs Display
Powered USB Screen Size (Diagonal) 65″ Resolution 3840 x 2160 Panel Type VA LCD Brightness 500 cd/m (Maximum) Viewing Angle (H x V) 178 x 178 Screen Area 56.22 x 31.61″ / 142.8 x 80.3 cm
Powered USB Aspect Ratio 16:9
Powered USB Contrast Ratio 4000:1
Powered USB Refresh Rate 60 Hz Horizontal Frequency 26 to 135 kHz (Analog) 26 to 135 kHz (Digital) Dot Pitch 0.37 x 0.37 mm Pixels Per Inch (ppi) 68 ppi Connectivity
3 x HDMI 2.0 Audio, Video
1 x DisplayPort Audio, Video 1 x 1/8″ / 3.5 mm Audio 2 x Speaker Terminal Audio
1 x USB 2.0, (Version Unspecified) Type-B
1 x USB (Version Unspecified) Service
2 x USB (Version Unspecified)
USB Ports Ethernet Ports 1 Control RS-232C via DE-9/DB-9 Input IP via RJ45 IR Digital Media Slot microSD (Unspecified Type)
USB Ports Number of OPS/Expansion Slots 2 General TV Tuner
USB Ports Yes ATSC Display Orientation Landscape, Portrait HDCP Support Yes Surface Haze Level 44% Audio Built-In Speakers Yes, 2 x 10 W Electrical
Power Consumption Typical 230.0 W
Power Consumption Network Standby 2.0 W
Power Consumption Economy Mode 0.5 W
Power Consumption Maximum 410.0 W
Power Consumption AC Input Power 100 to 240 VAC, 50 / 60 Hz at 2.0 to 4.8 A Environmental
Power Consumption Operating Temperature 32 to 104 F / 0 to 40 C Storage Temperature -4 to 140 F / -20 to 60 C
Power Consumption Operating Humidity 20 to 80% Storage Humidity 10 to 90%, Altitude 9843′ / 3000 m Storage Altitude 40,000′ / 12,192 m Physical Wall Mounting 400 x 400 mm 600 x 400 mm Bezel Thickness 12.9 mm (Right/Left) 13.1 mm (Bottom/Top) Duty Cycle 24 Hours / 7 Days Dimensions 57.4 x 32.7 x 3.1″ / 145.8 x 83.1 x 7.9 cm (without Stand) Weight 89.9 lb / 40.78 kg (without Stand)
