Panasonic MZ20KL Overview

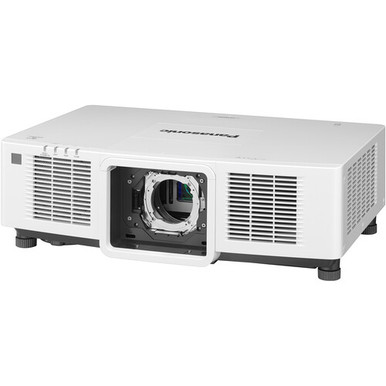

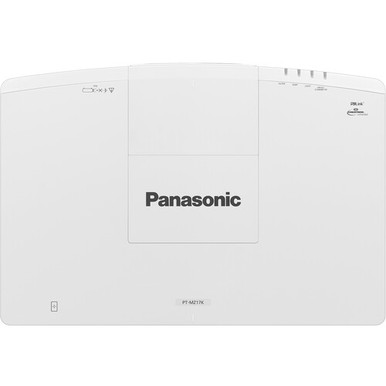

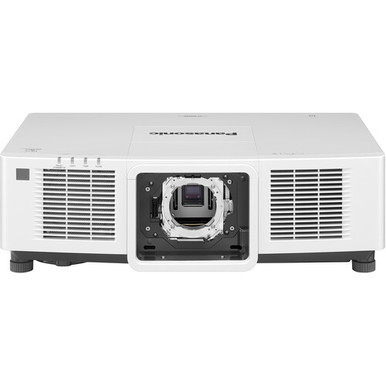

Bright, quiet, and accurate projections are possible when pairing the Panasonic PT-MZ20K 20,000-Lumen WUXGA Laser DLP Projector in white with an optional lens. The lightweight design offers quiet operation in normal mode, with an additional quiet mode to keep audiences focused on presentations. Projections that are made to look bright and realistic in any lighting condition with 20,000 lumens of output from the multi-laser drive engine. The Pure White Generator, Dynamic Contrast NX technology, and Clarity Processor 4 ensures optimal sharpness, rich contrast, and accurate color representation. Setup and extended operation of the PT-MZ20K is intuitive and convenient with app-based control, a built-in information monitor, HDMI backup, and a liquid-cooling system.

Pure White Generator

Bright and realistic projections enjoy accurate color representation thanks to a multi-reflection system that minimizes loss of light.

Dynamic Contrast NX

A video-scene analysis circuit recognizes differences between bright and dark areas of your content to deliver more precise, detailed, and rich contrast.

Project with Confidence

Important presentations require a projector you can count on, and the PT-MZ20K offers multiple features to give you peace of mind. The multi-laser drive engine uses multiple modules with many laser diodes in each. This hardware is used by failover circuitry to continue projecting with virtually no drop in brightness if laser failures occur. These lasers are also liquid-cooled to keep temperatures down, even during continuous high-brightness projections. Finally, dual HDMI inputs offer a backup in case of a failure, so presentations can continue with minimal disruption.

Information Monitor Built-In

Built into the control panel is an information monitor that displays temperature, voltage, operating hours, input signals, and more; helping you easily check and recover from almost any issue.

Data Cloning via LAN or USB

Setting up a multi-projector installation is easy with data cloning. This projector supports the copying and cloning of settings and adjustments via both a LAN connection and optional USB flash drive.

Smart Projector Control App

Control this and up to 63 other projectors using the Smart Projector Control app. Make lens and focus adjustments, switch test patterns, and more. You can even use NFC to read and write settings with just a tap of your phone.

Multi-Aspect Image Correction

To give you a perfectly-proportioned image, Panasonic offers geometric adjustment to let you correct both trapezoidal distortion and curved screen issues. You also have access to Free Grid, which lets you pinpoint local distortion via a 2×2 or 17×17-lined grid, or batch correct multiple projectors by specific horizontal or vertical grid lines. If you’d like to utilize advanced screen adjustment with your PC, the PT-MZ20K supports Geometry Manager Pro software.

Optimized Black Levels

Using up to 17 points, black borders can be shaped to achieve proper black levels when edge-blending on curved screens in a multi-projector setup.

Remote Preview LITE

Use Multi Monitoring & Control software or a web browser to preview projections on a PC when both the PC and projector are connected to the same network. This can be done regardless of whether the shutter is in use or the projector is in standby mode.

Additional Features

Eco-friendly with long-lasting laser light and no bulbs to replace
16:10 aspect ratio
4K/60 input support via HDMI or DIGITAL LINK
Dual voltage
NFC compatible

Panasonic MZ20KL Specs

Display System	DLP
Native Resolution	1920 x 1200
Maximum Brightness	20,000 Lumens
HDR Support	No
Inputs/Outputs	2x HDMI Audio, Video Input 1x DE-9/DB-9 (RS-232) Control Input 1x DE-9/DB-9 Remote Input 1x DE-9/DB-9 (RS-232) Control Output 1x M3 Remote Input 1x M3 Remote Output 1x RJ45 Video Input 1x RJ45 (Ethernet) LAN Input/Output 1x USB-A Power Output 1x USB-A Data Input
Light Source	Laser Phosphor

Image Display

Display System	DLP
Native Resolution	1920 x 1200
Supported Resolutions	Maximum: 3840 x 2160 @ 60 Hz
Maximum Brightness	20,000 Lumens
Aspect Ratio	Native: 16:10
Dynamic Contrast Ratio	3,000,000:1

Lens

Includes Lens

Features

Keystone Correction	Vertical: ± 45° Horizontal: ± 40°
HDR Support	No
Multi-Input Support (PIP/PBP)	Not Specified by Manufacturer
Ceiling Mountable	Yes

Input/Output Connectors

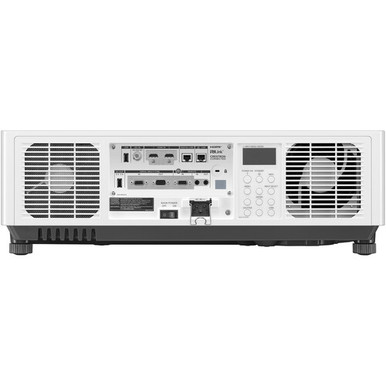

Inputs/Outputs	2x HDMI Audio, Video Input 1x DE-9/DB-9 (RS-232) Control Input 1x DE-9/DB-9 Remote Input 1x DE-9/DB-9 (RS-232) Control Output 1x M3 Remote Input 1x M3 Remote Output 1x RJ45 Video Input 1x RJ45 (Ethernet) LAN Input/Output 1x USB-A Power Output 1x USB-A Data Input
HDCP Support	Yes, Version 2.3
Media/Memory Card Slot	No

Hardware

Mobile App Compatible	Yes: Android & iOS App Name: Smart Projector Control Functionality: Adjust Settings, Remote Control
Bluetooth	No

General

Light Source	Laser Phosphor
Expected Lamp Life	Full Brightness: 20,000 Hours
Fan Noise	Full Brightness: 42 dB Low Brightness: 36 dB
Input Power	100 to 240 VAC, 50 / 60 Hz
Power Consumption	Full Brightness: 1100 W
Operating Conditions	32 to 113°F / 0 to 45°C at 10 to 80% Humidity
Dimensions (W x H x D)	25.6 x 7.3 x 17.3″ / 650.0 x 185.0 x 440.0 mm (Excluding Feet and Protrusions) 25.6 x 8.3 x 17.3″ / 650.0 x 211.0 x 440.0 mm (With Feet at Shortest Position and Excluding Protrusions)
Weight	50.7 lb / 23 kg
