Display System 3-Chip 0.76″ LCD
Native Resolution 1920 x 1200, 1920 x 1200 Maximum Brightness 7500 Lumens (ISO)
Maximum Brightness 7500 Lumens (ISO)
Throw Ratio 1.61 to 2.76:1 (150″ Screen Size @ 23′ / 7.0 m)
Projection Size 40 to 400″ / 1.0 to 10.2 m
HDR Support Yes
Inputs/Outputs 3x HDMI Audio, Video Input 1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Input 1x DE-15/DB-15 (VGA) Video Input 1x 1/8″ / 3.5 mm Mini Audio Input 1x DE-15/DB-15 (VGA) Video Output 1x 1/8″ / 3.5 mm Mini Audio Output 1x USB-A Power Output 1x 1/8″ / 3.5 mm Mini Remote Input 2x DE-9/DB-9 (RS-232) Control, Remote Input 1x DE-9/DB-9 (RS-232) Control, Remote Output 1x RJ45 (Ethernet) LAN Input
Light Source Laser Phosphor
Supported Resolutions Maximum: 4096 x 2160 @ 60 Hz
Aspect Ratio Native: 16:10 Supported: 16:9 Supported: 4:3
Dynamic Contrast Ratio 3,000,000:1, 3,000,000:1 Lens Includes Lens Yes Focus Manual Powered Aperture f/1.7 to 2.3
Includes Lens Yes
Focus Manual Powered
Aperture f/1.7 to 2.3
Focal Length 26.8 to 45.5mm
Lens Shift Vertical: 67% Horizontal: 35%
Optical Zoom Powered: 1.7x
Throw Distance 4.58 to 78′ / 1.4 to 23.8 m
Keystone Correction Manual to Vertical: 25 Manual to Horizontal: 30
Multi-Input Support (PIP/PBP) Not Specified by Manufacturer
Ceiling Mountable Yes
Rear Screen Projection Yes
Built-In Speaker No
Projection Tilt Option Yes
HDCP Support Yes, Version 2.3
Media/Memory Card Slot No
Mobile App Compatible Yes: Android & iOS App Name: Smart Projector Control Functionality: Adjust Settings, Setup
Wireless LAN / Wi-Fi No
Bluetooth No
Expected Lamp Life Full Brightness: 20,000 Hours
Fan Noise Full Brightness: 34 dB
Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Full Brightness:
Operating Conditions 32 to 113 F / 0 to 45 C at 20 to 80% Humidity
Dimensions (W x H x D) 22.0 x 8.8 x 17.3″ / 560.0 x 224.0 x 439.0 mm (Including Lens and Protruding Parts, with Legs at Shortest Position)
Weight 41 lb / 18.6 kg

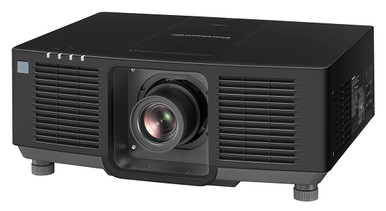

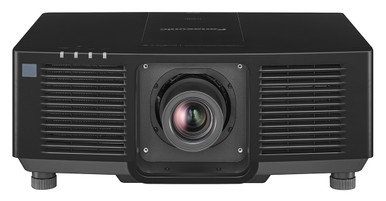

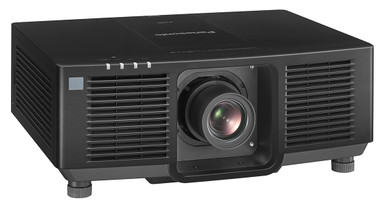

Panasonic PT-MZ782 Specs Display System 3-Chip 0.76″ LCD
Throw Ratio Projection Size 40 to 400″ / 1.0 to 10.2 m, Size 40 to 400″ / 1.0 to 10.2 m Features Keystone Correction
HDR Support Yes Inputs/Outputs 3x HDMI Audio, Video Input
1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Input
1x DE-15/DB-15 (VGA) Video Input 1x 1/8″ / 3.5 mm Mini Audio Input, Output 1x 1/8″ / 3.5 mm Mini Audio Output
1x USB-A Power Output 1x 1/8″ / 3.5 mm Mini Remote Input 2x DE-9/DB-9 (RS-232) Control, Remote Input 1x DE-9/DB-9 (RS-232) Control, Remote Output
1x RJ45 (Ethernet) LAN Input Light Source Laser Phosphor Image Display Display System 3-Chip 0.76″ LCD, LAN Input HDCP Support Yes, Version 2.3 Media/Memory Card Slot No Hardware Mobile App Compatible
HDR Support Yes Inputs/Outputs Native Resolution 1920 x 1200 Supported Resolutions
HDR Support Yes Inputs/Outputs Maximum 4096 x 2160 @ 60 Hz Maximum Brightness 7500 Lumens (ISO)
Aspect Ratio Native 16:10
Aspect Ratio Supported 16:9, 4:3
Aspect Ratio Focal Length 26.8 to 45.5mm
Lens Shift Vertical 67%
Lens Shift Horizontal 35% Optical Zoom
Lens Shift Powered 1.7x
Lens Shift Throw Distance 4.58 to 78′ / 1.4 to 23.8 m
Manual to Vertical 25
Manual to Horizontal 30
HDR Support Yes Multi-Input Support (PIP/PBP)
Input/Output Connectors Inputs/Outputs 3x HDMI Audio, Video Input
Input/Output Connectors Inputs/Outputs Yes Android & iOS
Input/Output Connectors Inputs/Outputs App Name Smart Projector Control
Input/Output Connectors Inputs/Outputs Functionality Adjust Settings, Setup
Input/Output Connectors Inputs/Outputs Wireless LAN / Wi-Fi No Bluetooth No General Light Source Laser Phosphor Expected Lamp Life
Input/Output Connectors Inputs/Outputs Full Brightness 20,000 Hours
Fan Noise Full Brightness 34 dB
Fan Noise Input Power 100 to 240 VAC, 50 / 60 Hz
Fan Noise Power Consumption Full Brightness: Operating Conditions 32 to 113 F / 0 to 45 C at 20 to 80% Humidity
Fan Noise Dimensions (W x H x D) 22.0 x 8.8 x 17.3″ / 560.0 x 224.0 x 439.0 mm (Including Lens and Protruding Parts, with Legs at Shortest Position) Weight 41 lb / 18.6 kg
