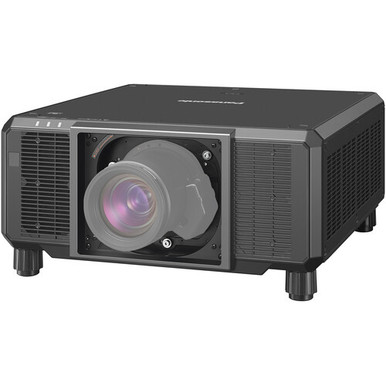

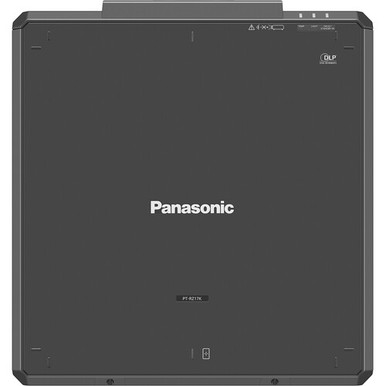

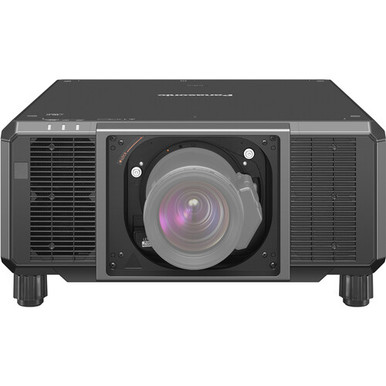

Name: Panasonic PT-RZ14KU 14,000-Lumen WUXGA 3DLP Laser Projector
SKU: PT-RZ14KU
Price: $55,999.99 USD
Availability: InStock

Panasonic RZ14KU Overview

Experience efficiency and high-quality imagery with the Panasonic PT-RZ14KU 14,000-Lumen WUXGA 3DLP Laser Projector. Boasting 14,000 lumens while being lighter and more compact than its 12K predecessor, the PT-RZ14KU is ideal for event production, rental, and staging. Panasonic offers a full suite of lens options (sold separately) to cover a wide range of usage scenarios. Connectivity is available via HDMI, DisplayPort, and customizable with a slot to accept Intel Smart Display Modules (SDM). A number of control ports and BNC multi-projector/3D sync make for easy integration into larger networked systems. With a network connection and Panasonic’s NFC functionality you can easily make settings adjustments by touch via smartphone. Additionally, Wi-Fi and screen mirroring are available with the AJ-WM50 Dual Band USB Wi-Fi Module (sold separately).

Compact and Efficient

Based on the groundbreaking RQ25K Series, RZ14KU weighs 20% less and is about 40% smaller than the previous RZ12K for efficient transport and installation. It supports existing 3-Chip DLP lenses and full-brightness projection on AC 100-240 V power. Intel Smart Display Module (Intel SDM)-ready slot integrates proprietary or third-party function boards that adapt and scale connectivity. Save time with the NFC function and user test-pattern registration. The projector also comes with a preactived upgrade kit for Panasonic’s Geometry Manager Pro software to assist with projector control, brightness control, geometry adjustments, edge-blending, and color matching.

3DLP Laser Projection

The RZ14KU combines high brightness, resolution, contrast, and color accuracy for an awe-inspiring visual experience. Dynamic Contrast is to 25,000:1 and includes new scene analysis circuitry that better recognizes light and dark areas of the image, enhancing realism. Gradation Smoother provides easy correction of color banding, while the black level function offers control-point border adjustment for curved screens.

Reliable Long Life with Low Maintenance

The projector’s optical engine and laser light source module comply with the IP5X Dust Protected (IEC 60529) standard, and together with a filterless liquid cooling system, enable 20,000 plus hours of maintenance-free projection. Backup Input and Multi-Laser Drive Engine enhance reliability and add insurance against interruptions that impact the guest experience.

Panasonic RZ14KU Specs

Display System	3-Chip 0.80″ DLP
Native Resolution	1920 x 1200
Maximum Brightness	14,000 Lumens 14,700 Lumens (Center)
HDR Support	No
Inputs/Outputs	2x HDMI Audio, Video Input 1x DisplayPort Audio, Video Input 1x BNC (VESA 3D Sync) Control, Data Input 1x BNC (VESA 3D Sync) Control, Data Output 1x DE-9/DB-9 (RS-232) Control Input 1x DE-9/DB-9 (RS-232) Control Output 1x 1/8″ / 3.5 mm Mini Remote Input 1x 1/8″ / 3.5 mm Mini Remote Output 1x DE-9/DB-9 Remote Input 1x USB-A Data, LAN Input 1x USB-A Power Output 1x RJ45 (Ethernet) LAN Input
Light Source	Laser Phosphor

Image Display

Display System	3-Chip 0.80″ DLP
Native Resolution	1920 x 1200
Supported Resolutions	Maximum: 1920 x 1200 @ 120 Hz
Maximum Brightness	14,000 Lumens 14,700 Lumens (Center)
Aspect Ratio	Native: 16:10
Dynamic Contrast Ratio	25,000:1
DLP Link 3D	Yes
Supported 3D Formats	Frame Sequential Frame Packing Side by Side Top Bottom
Includes Lens	No

Features

Keystone Correction	Vertical: ± 45° Horizontal: ± 40°
HDR Support	No
Multi-Input Support (PIP/PBP)	Not Specified by Manufacturer
Ceiling Mountable	Yes
Rear Screen Projection	Yes
Built-In Speaker	No
Projection Tilt Option	Yes

Input/Output Connectors

Inputs/Outputs	2x HDMI Audio, Video Input 1x DisplayPort Audio, Video Input 1x BNC (VESA 3D Sync) Control, Data Input 1x BNC (VESA 3D Sync) Control, Data Output 1x DE-9/DB-9 (RS-232) Control Input 1x DE-9/DB-9 (RS-232) Control Output 1x 1/8″ / 3.5 mm Mini Remote Input 1x 1/8″ / 3.5 mm Mini Remote Output 1x DE-9/DB-9 Remote Input 1x USB-A Data, LAN Input 1x USB-A Power Output 1x RJ45 (Ethernet) LAN Input
HDCP Support	Yes, Version 2.3
Number of Expansion Slots	1

Hardware

Mobile App Compatible	Yes, Adapter Required (Not Included): Android & iOS
Wireless LAN / Wi-Fi	No, Optional Adapter Available
Bluetooth	No

General

Light Source	Laser Phosphor
Expected Lamp Life	Full Brightness: 20,000 Hours
Fan Noise	Full Brightness: 40 dB
Input Power	100 to 240 VAC, 50 / 60 Hz
Power Consumption	Full Brightness: 970 W Low Brightness: 760 W
Operating Conditions	32 to 113°F / 0 to 45°C at 10 to 80% Humidity
Dimensions (W x H x D)	21.7 x 8.7 x 22.4″ / 550.0 x 220.0 x 570.0 mm (excluding protrusions) 21.7 x 10.6 x 22.4″ / 550.0 x 269.0 x 570.0 mm (with the feet at the shortest position)
Weight	77.2 lb / 35 kg
