Display System 0.67″ DLP

Native Chip Resolution 1920 x 1200 (WUXGA)

Maximum Brightness 9400 Lumens (ISO) 10,000 Lumens (Center)

Uniformity 90%

Aspect Ratio Native: 16:10

Dynamic Contrast Ratio 10,000:1, 10,000:1 Features

Supported HDR Input Formats None

Multi-Input Support (PIP/PBP) Not Specified by Manufacturer

Ceiling Mountable Yes

Remote None

Inputs/Outputs 1 x HDBaseT (RJ45) Audio, Control, Data, Power, Video 1 x HDMI (HDMI Type-A) Audio, Video Input 1 x DVI-D Video Input 1 x SDI (BNC) Video Input 1 x SDI (5BNC) Video Input 1 x VGA (DE-15/DB-15) Video Input 1 x Ethernet (RJ45) LAN 1 x 1/8″ / 3.5 mm Mini Remote Input 1 x 1/8″ / 3.5 mm Mini Remote Output 1 x DE-9/DB-9 Remote Input 1 x RS-232 (DE-9/DB-9) Control Input 1 x RS-232 (DE-9/DB-9) Control Output

HDCP Support Version 2.2

Light Source Laser Phosphor

Expected Lamp Life Full Brightness: 20,000 Hours Low Brightness: 24,000 Hours

Fan Noise Full Brightness: 40 dB Medium Brightness: 36 dB Low Brightness: 35 dB

Security Cable Lock Slot

AC Input Power 100 to 240 VAC, 50 / 60 Hz

Power Consumption Full Brightness: 735 W Medium Brightness: 490 W Low Brightness: 205 W

Operating Temperature 32 to 113 F / 0 to 45 C

Operating Humidity 10 to 80%

Dimensions (W x H x D) 19.6 x 7.9 x 21.2″ / 498.0 x 200.0 x 538.0 mm

Weight 48.9 lb / 22.2 kg

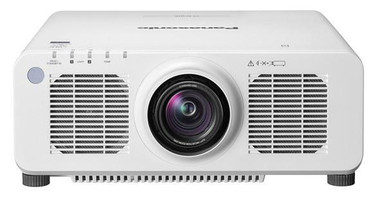

Panasonic RZ990 Overview This projector is engineered for up to 20,000 hours of maintenance-free reliability with lasting brightness and color uniformity from a dust-resistant optical engine. Key Features

Brightness of 9400 ISO Lumens WUXGA (1920 x 1200) Native Resolution Uses Interchangeable Lenses

Brightness of 9400 ISO Lumens HDMI, DVI-D, DIGITAL LINK HDBaseT Inputs

The Quartet Color Harmonizer is a color wheel technology featuring an optimized optical design. It is designed to precisely modulate light output to color requirements for pure white. With the color uniformity of DLP devices supporting seamless edge blends, an immersive single- or multi-screen projection experience is assured.

The PT-RZ990 supports 4K input signals and fits seamlessly into 4K-ready infrastructure. A separate LAN terminal for control frees the DIGITAL LINK port for high-bandwidth video over long cable runs up to 492′.

4K Signal Input Support Flexible, Convenient Installation

4K Signal Input Support Select from a family of 11 optional lenses, including the ET-DLE020 ultra-short throw zoom lens. The Free Grid function corrects screen distortion without a computer, while the Smart Projector Control app expedites setup. Up to 20,000 Hours Maintenance-Free

4K Signal Input Support Dust resistance, an airtight optical block, and filter-less cooling team with the failover-protected dual-laser drive to extend maintenance-free projection up to 20,000 hours. Backup input switching adds extra insurance. Panasonic RZ990 Specs Image Display Display System 0.67″ DLP

4K Signal Input Support Native Chip Resolution 1920 x 1200 (WUXGA) Maximum Brightness 9400 Lumens (ISO) 10,000 Lumens (Center) Uniformity 90%

Aspect Ratio Native 16:10

Supported HDR Input Formats None Multi-Input Support (PIP/PBP)

1 x HDBaseT (RJ45) Audio, Control, Data, Power, Video

1 x HDMI (HDMI Type-A) Audio, Video Input

Input/Output Connectors Inputs/Outputs 1 x DVI-D Video Input, x SDI (BNC) Video Input, x SDI (5BNC) Video Input, x VGA (DE-15/DB-15) Video Input

1 x Ethernet (RJ45) LAN 1 x 1/8″ / 3.5 mm Mini Remote Input 1 x 1/8″ / 3.5 mm Mini Remote Output 1 x DE-9/DB-9 Remote Input 1 x RS-232 (DE-9/DB-9) Control Input 1 x RS-232 (DE-9/DB-9) Control Output HDCP Support Version 2.2 General Light Source Laser Phosphor Expected Lamp Life

Input/Output Connectors Inputs/Outputs Full Brightness 20,000 Hours

Input/Output Connectors Inputs/Outputs Low Brightness 24,000 Hours

Fan Noise Full Brightness 40 dB

Fan Noise Medium Brightness 36 dB

Fan Noise Low Brightness 35 dB Security Cable Lock Slot

Fan Noise AC Input Power 100 to 240 VAC, 50 / 60 Hz

Power Consumption Full Brightness 735 W

Power Consumption Medium Brightness 490 W

Power Consumption Low Brightness 205 W

Power Consumption Operating Temperature 32 to 113 F / 0 to 45 C

Power Consumption Operating Humidity 10 to 80%

Power Consumption Dimensions (W x H x D) 19.6 x 7.9 x 21.2″ / 498.0 x 200.0 x 538.0 mm Weight 48.9 lb / 22.2 kg

Supported HDR Input Formats	None
Multi-Input Support (PIP/PBP)	Not Specified by Manufacturer
Ceiling Mountable	Yes
Remote	None

Light Source	Laser Phosphor
Expected Lamp Life	Full Brightness: 20,000 Hours Low Brightness: 24,000 Hours
Fan Noise	Full Brightness: 40 dB Medium Brightness: 36 dB Low Brightness: 35 dB
Security	Cable Lock Slot
AC Input Power	100 to 240 VAC, 50 / 60 Hz
Power Consumption	Full Brightness: 735 W Medium Brightness: 490 W Low Brightness: 205 W
Operating Temperature	32 to 113°F / 0 to 45°C
Operating Humidity	10 to 80%
Dimensions (W x H x D)	19.6 x 7.9 x 21.2″ / 498.0 x 200.0 x 538.0 mm
Weight	48.9 lb / 22.2 kg

Display System	0.67″ DLP
Native Chip Resolution	1920 x 1200 (WUXGA)
Maximum Brightness	9400 Lumens (ISO) 10,000 Lumens (Center)
Uniformity	90%
Aspect Ratio	Native: 16:10
Dynamic Contrast Ratio	10,000:1

Panasonic RZ990 Overview

Key Features

Accurate Color Reproduction

4K Signal Input Support

Flexible, Convenient Installation

Up to 20,000 Hours Maintenance-Free

Panasonic RZ990 Specs

Image Display

Features

Input/Output Connectors

General
