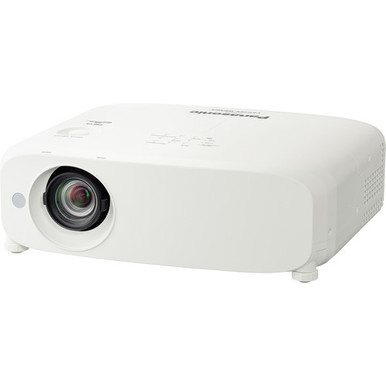

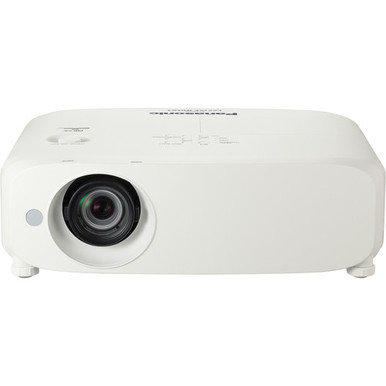

The Panasonic PT-VW535NU WXGA LCD Projector provides 5000 lumens of brightness and a 5000:1 contrast ratio for clear, bright presentations – even in rooms with lots of ambient light. It features WXGA 1280 x 800 native resolution, a three-chip transparent RGB LCD projection system, and an Eco-Mode that supports a long lamp life of up to 7000 hours. This ensures a lower overall total cost of ownership. The PT-VW535NU features DIGITAL LINK single cable connectivity and Panasonic’s Daylight View Basic technology as well.
For added convenience, the PT-VW535NU features wireless connectivity for wirelessly projecting from a PC or from your iPad/iPhone mobile device. It’s equipped with USB connectivity that supports USB display functionality and USB memory viewing for PC-less projecting.

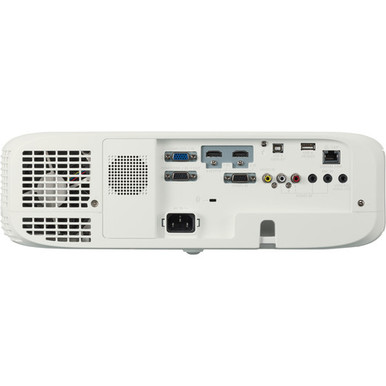

The projector also provides a variety of other connectivity options including HDMI, dual VGA computer ports, a microphone input, and more. There’s also an Ethernet jack for network connectivity, which supports PJLink compatibility and remote control of the projector from a network-connected PC. The projector has an audio output jack for exporting audio to external speakers. Other features include a built-in 10W mono speaker, a serial RS-232C terminal for external control, and a powerful 1.6x zoom lens. The unit is compatible with NTSC, PAL, and SECAM video systems as well.
- Features WXGA 1280 x 800 native resolution, 5000:1 contrast ratio and a brightness of 5000 lumens
- Lamp replacement cycle of 7000 hours and a max filter life of 7000 hours
- Developed using HDBaseT technology, DIGITAL LINK connectivity routes uncompressed Full HD video and Ethernet/RS-232C control commands through a single cable for distances of up to 328′ (100m)
- DIGITAL LINK connectivity simplifies installation – especially when a projector is added to existing network or control system (also saves money on cable costs)
- Supports Panasonic’s Daylight View Basic technology
- Quiet 29 dB noise level when using Eco-Mode
- Standby Eco-Mode power consumption of only 0.48W
- Supports IEEE802.11b/g/n Wi-Fi for wireless projection from multiple PCs
- Wireless projection from iPad and iPhone
- USB display function
- USB memory viewer for projection without a PC
- Powerful 1.6x zoom lens
- Built-in 10W mono 1.57″ (4cm) speaker and microphone input jack
- Projector features an HDMI input and various other analog interfaces
- HDMI input supports linear PCM audio signal with support for 48, 44.1, and 32 kHz sampling frequencies
- LAN-enabled remote control monitoring with support for PJ Link
- Auto input signal search and on-screen guide
- Easy top panel lamp replacement
- Color-board and blackboard color adjustment modes
- Direct power off
- Vertical 48° optical axis lens shift
- Anti-theft and security functions with customizable start up logo
- Projector identification system for remote control of up to six projectors
Key Features
- Brightness of 5000 Lumens
- WXGA 1280 x 800 Native Resolution
- Multiple Input Options Including HDMI
- DIGITAL LINK Single Cable Connectivity
- USB Memory Viewer & USB Display Function
- Long Lamp & Filter Life up to 7000 Hours
- Wireless Projection from iPad/iPhone/PCs
- Supports Daylight View Basic Technology
- Monaural 10W Speaker & Microphone Input
- LAN Enabled Remote Control Monitoring
Panasonic PT-VW535NU Specs
Image Display
| Display System | -Chip 0.59″ RGB Liquid Crystal Shutter Projection System LCD |
| Native Chip Resolution | 1280 x 800 (WXGA) |
| Supported Resolutions | VGA – 640 x 480 WUXGA – 1920 x 1200 |
| Maximum Brightness | 5000 Lumens |
| Uniformity | 85% |
| Aspect Ratio | Native: 16:10 |
| Scan | Horizontal: 15 to 91 kHz Vertical: 24 to 100 Hz |
Lens
| Focus | Manual |
| Lens | f/1.6 – 1.9 (f = 15.31 – 24.64 mm) |
| Throw Ratio | 1.2 to 1.9:1 |
| Projection Size | 30 – 300″ / 76.20 – 762.00 cm |
Features
| Keystone Correction | Vertical: ± 35° Horizontal: ± 35° |
| Ceiling Mountable | Yes |
| Rear Screen Projection | Yes |
Input/Output Connectors
| Wireless LAN / Wi-Fi | Yes, Built-in |
General
| Lamp Power | 270 W |
| Expected Lamp Life | Medium Brightness: 5000 Hours Low Brightness: 7000 Hours |
| Fan Noise | Medium Brightness: 37 dB Low Brightness: 29 dB |
| Security | Cable Lock Slot Password Protection |
| Power Consumption | Standby Mode (Lamp Off): 27.5 W Medium Brightness: 19.7 W Standby Mode (Lamp Off): 14 W Standby Mode (Lamp Off): 0.48 W |
| Dimensions (W x H x D) | 15.3 x 4.9 x 13.1″ / 389.0 x 125.0 x 332.0 mm |
Packaging Info
| Package Weight | 19.35 lb |
| Box Dimensions (LxWxH) | 17.5 x 12.5 x 11″ |
