Display System 1-Chip 0.67″ DLP
Native Chip Resolution 1920 x 1200 (WUXGA)
Supported Resolutions Maximum: WUXGA – 1920 x 1200
Maximum Brightness 8800 Lumens (Center)
Uniformity 90%
Aspect Ratio Supported: 16:10
Dynamic Contrast Ratio 10,000:1, 10,000:1 Features Ceiling Mountable Yes Rear Screen Projection Yes
Ceiling Mountable Yes
Rear Screen Projection Yes
Inputs/Outputs 1 x 3G-SDI (BNC) Video Input 1 x HDMI (HDMI Type-A) Video Input 1 x DVI-D Video Input 1 x 5BNC Video Input 1 x VGA (DE-15/DB-15) Video Input 1 x RS-232 (DE-9/DB-9) Control Input 1 x RS-232 (DE-9/DB-9) Control Output 1 x M3 Remote Input 1 x M3 Remote Output 1 x DE-9/DB-9 Control Input 1 x Ethernet (RJ45) LAN
Light Source Laser Phosphor
Fan Noise Full Brightness: 41 dB Medium Brightness: 37 dB Low Brightness: 35 dB
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Full Brightness: 950 W
Operating Altitude 13,779′ / 4200 m
Dimensions (W x H x D) 19.6 x 7.9 x 21.2″ / 498.0 x 200.0 x 538.0 mm
Weight 49.38 lb / 22.4 kg
10,000 1 Dynamic Contrast Ratio

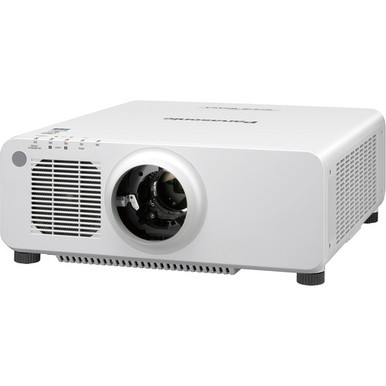

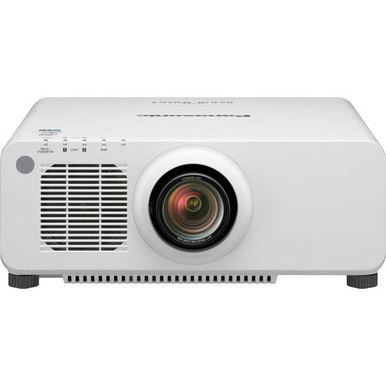

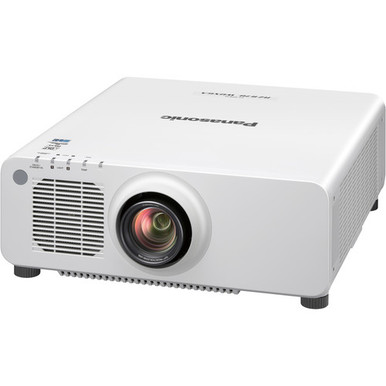

The PT-RZ870LWU SOLID SHINE 8800-Lumen WUXGA Laser DLP Projector from Panasonic supports a resolution of up to 1920 x 1200 with a brightness of up to 8800 lumens. It features a dynamic contrast ratio of 10,000:1. This projector is compatible with select powered zoom/focus lenses (available separately).
Panasonic PT-RZ870LWU Overview Detail Clarity Processor 3 clarifies and enhances the finest details
Panasonic PT-RZ870LWU Overview System Daylight View 3 optimization for sharp and vivid images in bright environments
Dust-resistant projector structure with airtight optical block
Panasonic PT-RZ870LWU Overview Dual-drive laser optical engine with dual phosphor wheels for 24/7 operation with light-source failover protection Up to 20,000 hours of continuous maintenance-free operation
Efficient cooling system for stable operation in ambient temperatures of up to 113 F
Seamless backup signal input switching if primary signal transmission is interrupted
Shares optional lenses with Panasonic 1-Chip DLP projector family
Panasonic PT-RZ870LWU Overview Compact body and free 360 installation (vertical and horizontal)
Supports Geometry Manager Pro Direct power off function allows projector shutdown from mains In the Box
Supports Geometry Manager Pro Panasonic PT-RZ870LWU SOLID SHINE 8800-Lumen WUXGA Laser DLP Projector (No Lens, White) Limited 3-Year Warranty Key Features 1920 x 1200 (WUXGA) Resolution
10,000:1 Dynamic Contrast Ratio
3G-SDI, HDMI & DVI-D Inputs Serial & Remote Input/Output
Center Brightness of 8800 Lumens RJ45 Ethernet Port DIGITAL LINK Connectivity Panasonic PT-RZ870LWU Specs Image Display Display System 1-Chip 0.67″ DLP
Center Brightness of 8800 Lumens Native Chip Resolution 1920 x 1200 (WUXGA) Supported Resolutions
Center Brightness of 8800 Lumens Maximum WUXGA – 1920 x 1200 Maximum Brightness 8800 Lumens (Center) Uniformity 90%
Aspect Ratio Supported 16:10
Input/Output Connectors Inputs/Outputs 1 x 3G-SDI (BNC) Video Input, x DVI-D Video Input, x 5BNC Video Input
1 x HDMI (HDMI Type-A) Video Input
1 x VGA (DE-15/DB-15) Video Input 1 x RS-232 (DE-9/DB-9) Control Input 1 x RS-232 (DE-9/DB-9) Control Output 1 x M3 Remote Input 1 x M3 Remote Output 1 x DE-9/DB-9 Control Input
1 x Ethernet (RJ45) LAN General Light Source Laser Phosphor
Fan Noise Full Brightness 41 dB
Fan Noise Medium Brightness 37 dB
Fan Noise Low Brightness 35 dB
Fan Noise AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Full Brightness 950 W
Power Consumption Operating Altitude 13,779′ / 4200 m
Power Consumption Dimensions (W x H x D) 19.6 x 7.9 x 21.2″ / 498.0 x 200.0 x 538.0 mm Weight 49.38 lb / 22.4 kg
