Time to upscale your display

Samsung’s new QBR series displays cut through the clutter to deliver best-in-class UHD resolution as well as intelligent UHD upscaling and rich flawless colors with Dynamic Crystal Color all in a slim design.

Incredible 4K picture quality

Samsung’s new QBR series provides ultra high-definition 4K resolution, creating lifelike images with sharper picture quality than ever before.

Key Features

4K UHD (3840 x 2160) Native Resolution
HDR10 & HDR10+ Compatibility
8 ms Response Time
350 cd/m² Brightness
4000:1 Typical Contrast Ratio
Built-In Wi-Fi, Ethernet, and Bluetooth
DVI-D, 2 x HDMI, 2 x USB Inputs
Dual 10W Speakers
Digital Signage-Capable
Supports up to 1 Billion Colors

Crystal Processor 4K

Intelligent UHD upscaling technology, made possibly by Samsung’s Crystal Processor 4K, allows content developed at a lower resolution to be elevated to UHD-level quality. It also performs edge restoration and noise reduction to optimize on-screen text and imagery.

Dynamic Crystal Display

The QBR series features Dynamic Crystal Display, using 10 bit processing for flawless color expression, allowing viewers to enjoy a wider spectrum of colors up to one billion shades. HDR+ compatibility converts standard definition content to HDR quality for sharper contrast and more vivid colors.

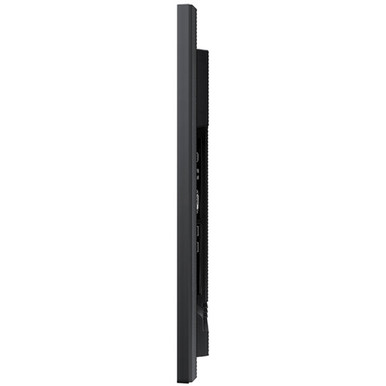

Slim and symmetrical design

The QBR series features an all-new symmetric design simplifying wall mounting and ensuring installation is seamless. The flat back and slim depth will ensure a display that will stand the test of time.

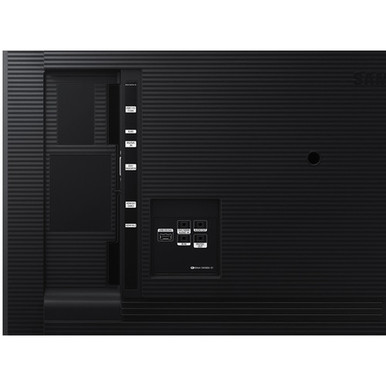

Clean cable management

With QBR’s new cable guide feature, retailers are able to tuck away messy cables from view. This allows for a clean and visually-appealing shopping expeience for customers, even when the back of the display is visible.

Powerful, all-in-one solution

SSSP is an all-in-one solution that simplifies installation and maintenance. With Tizen 4.0, businesses can enjoy easy development, reinforced capability with multiple web formats and standards and secured protection.

Samsung Workspace secured by Knox

With security provided by Knox, the displays feature Samsung Workspace which supports wireless cloud service access and control of a PC without needing a physical connection. Samsung Workspace simplifies meeting spaces while also improving security.

WiFi and Bluetooth built-in

Built-in WiFi and Bluetooth allow for more personalized and interactive services as well as simplifying how businesses showcase content. Whether it’s to make networking simpler or enabling interactive beacon technology in-store, QBR series displays help businesses move into the future of retail.

Specifications:

Panel

Diagonal Size49″
TypeEdge LED BLU
Resolution3840*2160 (4K UHD)
Pixel Pitch(mm)0.093 x 0.279
Active Display Area(mm)1073.78(H) x 604.00(V)
Brightness(Typ.)350 nit
Contrast Ratio4000:1
Viewing Angle(H/V)178/178
Response Time(G-to-G)8ms(Typ.)
Display Colors16.7M(True Display) 1.07B(Ditherd 10bit)
Color Gamut92% (DCI-P3, CIE 1976)
Operation Hour16/7
Haze2%

Display

Dynamic C/RMEGA
H-Scanning Frequency30 ~ 81kHZ
V-Scanning Frequency48 ~ 75HZ
Maximum Pixel Frequency594MHz

Sound

Speaker TypeBuilt in Speaker(10W + 10W)

Connectivity

Input

RGBDVI-D
VideoHDMI 2.0 (2)
HDCPHDCP 2.2
AudioStereo Mini Jack, DVI/HDMI/Audio(Common)
USBUSB 2.0 x 2

Output

AudioStereo Mini Jack

External ControlRS232C(in/out) thru stereo jack, RJ45
External SensorIR

Power

TypeInternal
Power SupplyAC 100 – 240 V~ (+/- 10 %), 50/60 Hz

Power Consumption

Max[W/h]138
Typical[W/h]103
Rating[W/h]125
BTU(Max)470.5
Sleep mode0.5

Mechanical Specification

Dimension (mm)

Set1099.2 x 631.5 x 46.3
Package1247 x 772 x 152

Weight (kg)

Set13.5
Package18

VESA Mount (mm)200 X 200
Stand TypeFoot Stand (Optional)
Bezel Width (mm)9.2mm(U/L/R), 11.2mm(B)

Operation

Operating Temperature 0 ~ 40
Humidity 10 % ~ 80 %

Feature

Key FeaturesUHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0
OrientationN/A
Remote ControlN/A

Special Features H/W: Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), IP5x, Wi-Fi/BT S/W: Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting)

Internal Player

ProcessorCoretex A72 1.7GHz Quad-Core CPU
On-Chip Cache MemoryL1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB
Clock Speed1.7GHz
Main Memory Interface2.5GB LPDDR4 1.5GHz 64bit

GraphicsGraphic resolution : 1920×1080 Output resolution : 3840×2160 (Scale up from graphic processing result.)
Storage (FDM)8GB (3.88GB Occupied by O/S, 4.12GB Available)
Multimedia*Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG
IO PortsUSB 2.0

Operating SystemTizen 4.0 (VDLinux)

Certification

Safety60950-1
EMCClass B
Security802.1x(WPA2 Enterprise): EAP-TLS, EAP-TTLS, EAP-PEAP

Accessory

IncludedQuick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries

Optional

StandSTN-L4355F
Mount WMN4070SE
SpecialtyCML400XK
