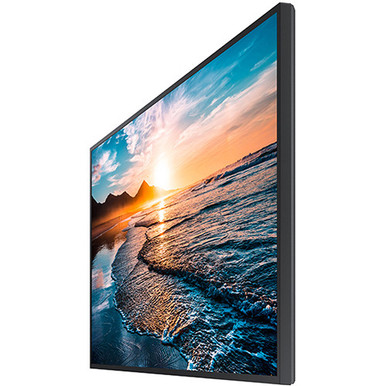

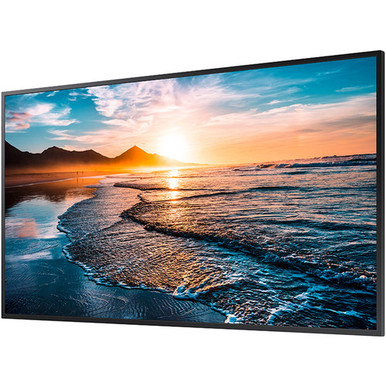

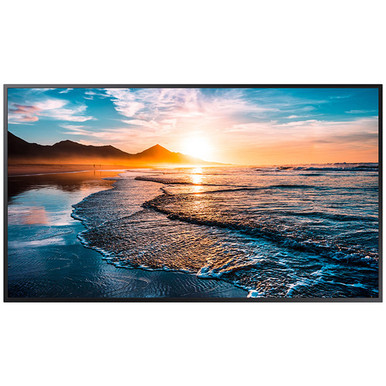

Advertise your product or business digitally with the Samsung QH49R 49″ Class 4K UHD Commercial Smart LED Display. It features 700 cd/m² of brightness with a 4000:1 typical contrast ratio to help enhance visibility in bright environments. The QH49R is IP5X certified, making it suitable for a variety of installation types. It has a DVI-D, two HDMI, and two USB ports, plus Wi-Fi and Bluetooth connectivity to provide a variety of interface options. For added convenience, the QH49R includes a remote control.
Key Features
- 4K UHD (3840 x 2160) Native Resolution
- 8 ms Response Time
- 700 cd/m² Brightness
- 4000:1 Typical Contrast Ratio
- Built-In Wi-Fi, Ethernet, and Bluetooth
- DVI-D, 2 x HDMI, 2 x USB Inputs
- Dual 10W Speakers
- Digital Signage-Capable
- IP5X Rating
Bright, Clear Images
4K UHD resolution, coupled with 700 cd/m² brightness, provide augmented color and clarity, allowing your business to deliver clear information 24/7. The non-glare panel helps provide visibility even in ambient light.
Intelligent UHD Upscaling
UHD upscaling is a four-step process that enables the clarity and detail of standard- and high-definition content to be enhanced as much as possible.

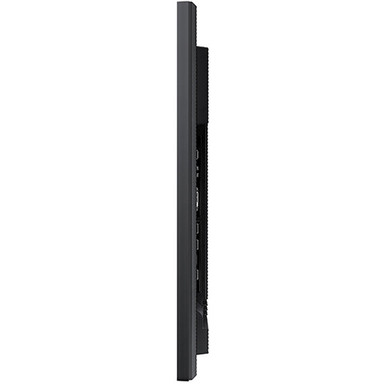

Slim, Symmetrical Design
Narrow bezels and a symmetrical design help provide seamless integration into nearly any environment with seamless mounting and installation.

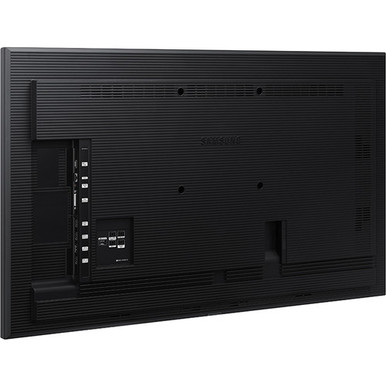

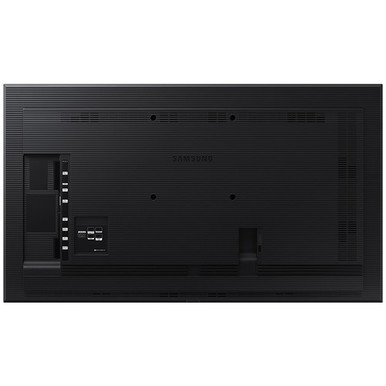

Integrated Cable Management
The back of the QHR series has grooves that allow for cables to be threaded through, helping to keep them out of sight.
MagicINFO Player S6
The embedded MagicINFO Player S6, backed by the Tizen operating system, helps provide easy content management and playback without an external set-back box or computer.
Samsung Workspace
With Samsung Workspace, you get wireless connectivity from your display to any compatible computer, plus access to web-based cloud services, including Microsoft Office 365 and VMware Horizon. Without a physical connection, you can remotely access a computer or files from a cloud server by connecting a keyboard.
Built-In Wi-Fi and Bluetooth
Enjoy convenient connectivity to mobile devices for easy media sharing, screen control, and content mirroring from your compatible smartphone or tablet.
Cisco WebEx Room Kit Compatibility
The QHR series is compatible with Cisco WebEx Room Kit products, allowing you to simply integrate it into pre-existing installations.
Additional Features
- MEGA dynamic contrast ratio
- SSSP 6.0
- Temperature sensor
- Clock battery (up to 168 hours of clock keeping)
- Video wall daisy chaining
- Auto Source Switching & Recovery software
- LFD Home UI
- Button lock
- Hot Key option
- Plug & play (initial setting)
- 48 kB L1 instruction cache, 32 kB L1 data cache, 2 MB L2 cache
Samsung QH49R Specs
Display
| Screen Size (Diagonal) | 49″ |
| Resolution | 3840 x 2160 |
| Panel Type | LCD |
| Brightness | 700 cd/m² |
| Viewing Angle (H x V) | 178 x 178° |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 4000:1 |
| Response Time | 8 ms |
| Backlighting Technology | Edge LED |

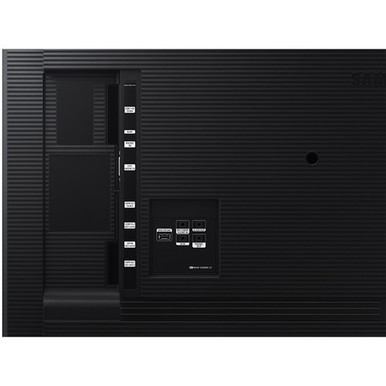

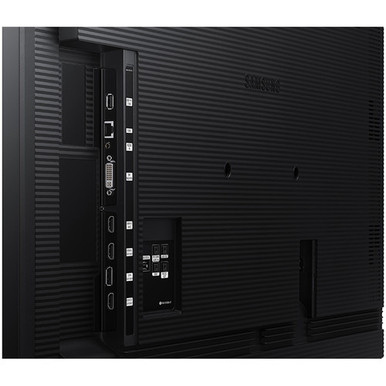

Connectivity
| Primary Connectivity Location | Display |
| Input Ports | 2 x HDMI 2.0 – Audio, Video (Side) 1 x DisplayPort 1.2 – Audio, Video (Side) 1 x DVI-D – Video (Side) 1 x 1/8″ / 3.5 mm – Audio (Rear) |
| Output Ports | 1 x HDMI 2.0 – Audio, Video (Side) 1 x 1/8″ / 3.5 mm – Audio (Rear) |
| USB Ports | 1 x USB 2.0 Type-A – Audio/Video (Rear) 1 x USB 2.0 Type-A – Audio/Video (Side) |
| Ethernet Ports | Side: 1 |
| Control | RS-232C via 1/8″ / 3.5 mm Input/Output |
| Wi-Fi | Built-in |
| Bluetooth | Yes |
General
| Display Orientation | Landscape |
| HDCP Support | Yes, Version 2.2 |
Surface
| Surface Treatment | Anti-Glare |
Audio
| Built-In Speakers | Yes, 2 x 10 W |
| Speaker Configuration | 2-Channel |
Hardware
| Operating System | Tizen 4.0 |
| Processor | 1.7 GHz ARM Cortex A72 Quad-Core |
| Storage | 8 GB |
| RAM | 2.5 GB LPDDR4 1500 MHz |
Convenience
| Supported Video File Types | H.263, H.264/AVC, MPEG2, MPEG4, VC-1, VP8, VP9 |
| Supported Audio File Types | AC3 |
| Supported Photo File Types | JPEG, PNG |
Electrical
| Power Consumption | Typical: 99.0 W Maximum: 143.0 W Standby: 0.5 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 10 to 80% |
Physical
| Wall Mounting | 200 x 200 mm |
| IP Rating | IP5X |
| Bezel Thickness | 9.2 mm (Right/Top/Left) 11.2 mm (Bottom) |
| Duty Cycle | 24 Hours / 7 Days |
| Dimensions | 43.3 x 24.9 x 1.8″ / 1099.2 x 631.5 x 46.3 mm |
| Weight | 29.76 lb / 13.5 kg |
Packaging Info
| Package Weight | 41 lb |
| Box Dimensions (LxWxH) | 48.2 x 30 x 6″ |
