Screen Size (Diagonal) 64.5″
Resolution 3840 x 2160
Panel Type LCD
Bit Depth / Color Support 8-Bit+FRC (1.07 Billion Colors)
Color Gamut 92% DCI-P3 92% CIE1976
HDR Compatibility HDR10, HDR10+
Brightness 500 cd/m
Viewing Angle (H x V) 178 x 178
Aspect Ratio 16:9
Contrast Ratio 4000:1
Response Time 8 ms
Backlighting Technology Edge LED
Primary Connectivity Location Display
Input Ports 2 x HDMI 2.0 Audio, Video 1 x DisplayPort 1.2 Audio, Video 1 x DVI-D Video 1 x 1/8″ / 3.5 mm Audio
Output Ports 1 x HDMI 2.0 Audio, Video 1 x 1/8″ / 3.5 mm Audio
USB Ports 2 x USB 2.0 Type-A
Ethernet Ports 1
Control IR via 1/8″ / 3.5 mm Input RS-232C via 1/8″ / 3.5 mm Input
Wi-Fi Built-in
Bluetooth Yes
Display Orientation Landscape, Portrait
HDCP Support Yes, Version 2.2
Surface Treatment Anti-Glare
Built-In Speakers Yes, 2 x 10 W
Speaker Configuration 2-Channel
Operating System Tizen 4
CPU 1.7 GHz Cortex A72 Quad-Core
Storage 8 GB
RAM 2.5 GB LPDDR4 1500 MHz
Supported Video File Types H.263, H.264/AVC, H.265/HEVC, MPEG, MPEG2, MPEG4, VC-1, VP8, VP9
Supported Audio File Types AC3
Supported Photo File Types JPEG, PNG
Power Consumption Typical: 131.0 W Maximum: 181.5 W Standby: 0.5 W
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Operating Temperature 32 to 104 F / 0 to 40 C
Operating Humidity 10 to 80%
Certifications ENERGY STAR, as per Manufacturer
Wall Mounting 400 x 400 mm
IP Rating IP5X
Bezel Thickness 9.2 mm (Right/Top/Left) 11.2 mm (Bottom)
Duty Cycle 24 Hours / 7 Days
Dimensions 57.2 x 32.7 x 1.8″ / 1453.9 x 831.0 x 46.3 mm
Weight 54.89 lb / 24.9 kg
Package Weight 72 lb
Box Dimensions (LxWxH) 63 x 38 x 7″
4000 1 Typical Contrast Ratio
4000:1 Typical Contrast Ratio
Samsung QM65R Overview HDR10 & HDR10+ Compatibility Built-In Wi-Fi Connectivity Integrated Media Player DVI-D, DisplayPort, & HDMI IP5X- and 24/7-Rated Dual Built-In 10W Speakers Slim and Symmetrical Design

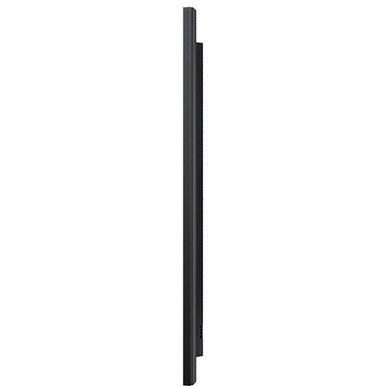

Samsung QM65R Overview Narrow bezels and a symmetrical design allow for a seamless integration in to any environment with simplified mounting and installation.
Experience crystal clear, lifelike color with up to a billion shades of color. QMR series displays deliver picture-perfect results virtually every time, so you can see every color in a rainbow or every shade in a spectacular sunset.
Cisco Certified Compatible Display The QMR series is fully compatible with Cisco WebEx Room Kit products. The Cisco WebEx Room Kit is a powerful video collaboration tool that integrates a camera, codec, speakers, and microphones into a single device. Combined with Samsung’s QMR displays, you get a powerful conferencing solution for your business.
Cisco Certified Compatible Display Incredible 4K UHD Non-Glare Picture Quality 4K UHD coupled with 500 cd/m brightness allows for true color and clarity without glare. Experience the pure colors, sharp contrast, and high brightness you expect. Intelligent UHD Upscaling
Cisco Certified Compatible Display Enhance the clarity and detail of standard and high definition content to the best possible picture quality with the UHD upscaling picture improvement process.
Cisco Certified Compatible Display HDR powered by HDR 10+
Experience superior brightness, greater detail in blacks, and authentic color with HDR powered by HDR 10+.
Cisco Certified Compatible Display Powerful, All-in-One Digital Signage Solution
Cisco Certified Compatible Display Samsung’s SMART Signage Platform 6.0 and the embedded MagicINFO Player S6, backed by the powerful Tizen operating system, boosts your display’s overall performance through system-on-chip (SoC) technology and allows for easy content management and playback, without the need for an external set-back box or computer. Built-In Wi-Fi and Bluetooth
Cisco Certified Compatible Display Enjoy the versatility of expanded connectivity to mobile devices, from easy media sharing and screen control to simple content mirroring from a tablet or mobile phone to your display.
Elevate the Power of Your Displays
Cisco Certified Compatible Display Streamline signage management with optional Samsung MagicINFO software. The all-in-one platform delivers seamless authoring, deployment, and playback on remote digital signage. Your content teams can update message designs and schedules from any location at any time. Clean Cable Management

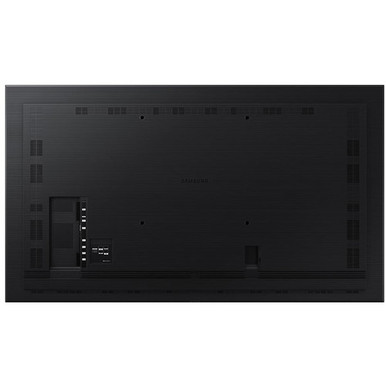

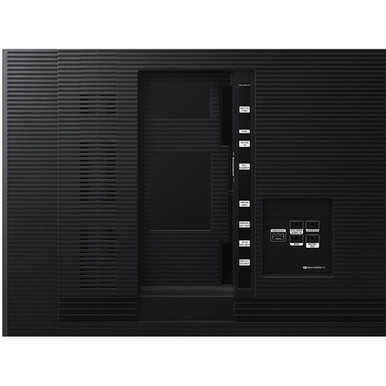

Cisco Certified Compatible Display The back of the QMR series features stylish grooves that cables can be threaded through, keeping connections out of sight. Additional Features
Cisco Certified Compatible Display Temperature sensor Pivot Display
Cisco Certified Compatible Display Clock Battery (up to 168 hours clock keeping)
Video Wall Daisy Chain Auto Source Switching and Recovery LFD Home UI Button Lock Hot Key Option
Video Wall Daisy Chain Plug and Play (initial setting) Samsung QM65R Specs Display
Video Wall Daisy Chain Screen Size (Diagonal) 64.5″ Resolution 3840 x 2160 Panel Type LCD
Bit Depth / Color Support 8-Bit+FRC (1.07 Billion Colors)
Video Wall Daisy Chain Color Gamut 92% DCI-P3 92% CIE1976
HDR Compatibility HDR10, HDR10+ Brightness 500 cd/m Viewing Angle (H x V) 178 x 178
HDR Compatibility Aspect Ratio 16:9
HDR Compatibility Contrast Ratio 4000:1 Response Time 8 ms Backlighting Technology Edge LED Connectivity
2 x HDMI 2.0 Audio, Video
1 x HDMI 2.0 Audio, Video 1 x 1/8″ / 3.5 mm Audio
2 x USB 2.0 Type-A
USB Ports Ethernet Ports 1 Control IR via 1/8″ / 3.5 mm Input
USB Ports RS-232C via 1/8″ / 3.5 mm Input Wi-Fi Built-in Bluetooth Yes General Display Orientation Landscape, Portrait HDCP Support Yes, Version 2.2 Surface Surface Treatment Anti-Glare Audio Built-In Speakers Yes, 2 x 10 W Speaker Configuration 2-Channel Hardware
USB Ports Operating System Tizen 4 CPU 1.7 GHz Cortex A72 Quad-Core Storage 8 GB RAM 2.5 GB LPDDR4 1500 MHz Convenience
Supported Video File Types Supported Audio File Types AC3 Supported Photo File Types JPEG, PNG Electrical
Power Consumption Typical 131.0 W
Power Consumption Maximum 181.5 W
Power Consumption Standby 0.5 W
Power Consumption AC Input Power 100 to 240 VAC, 50 / 60 Hz Environmental
Power Consumption Operating Temperature 32 to 104 F / 0 to 40 C
Power Consumption Operating Humidity 10 to 80% Certifications
Power Consumption ENERGY STAR, as per Manufacturer Physical Wall Mounting 400 x 400 mm IP Rating IP5X Bezel Thickness 9.2 mm (Right/Top/Left) 11.2 mm (Bottom) Duty Cycle 24 Hours / 7 Days Dimensions 57.2 x 32.7 x 1.8″ / 1453.9 x 831.0 x 46.3 mm Weight 54.89 lb / 24.9 kg Packaging Info Package Weight 72 lb
Power Consumption Box Dimensions (LxWxH) 63 x 38 x 7″
