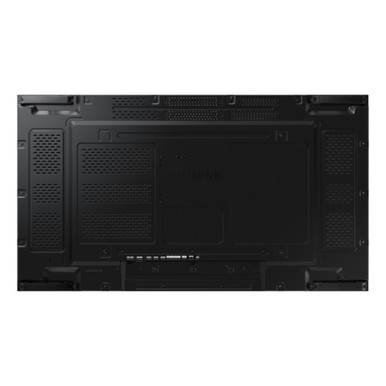

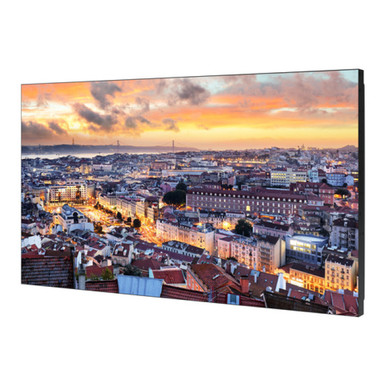

The Samsung VH55C-E is an LED-backlit LCD flat panel display designed to meet the demands of modern digital signage. With its 55-inch screen and 1080p resolution, it delivers crisp, clear images that capture the viewer’s attention. The display features an Extreme Narrow Bezel design, making it perfect for seamless multi-screen setups. Its Picture Enhancer mode and dynamic contrast ratio of 140,000:1 ensure that images are vivid and detailed, enhancing the overall viewing experience.
Equipped with the SMART Signage Platform, this display offers a powerful and integrated solution for content management, making it easier than ever to create and deploy engaging digital signage. The Samsung VH55C-E is also designed for durability and reliability, with compliance to several industry standards including EMC Class B and IP5X. Whether it’s for retail, public spaces, or corporate environments, the Samsung VH55C-E is an excellent choice for creating impactful and efficient digital signage.

SPECIFICATIONS

Technical details
DisplayPort version 1.2
Panel type IPS

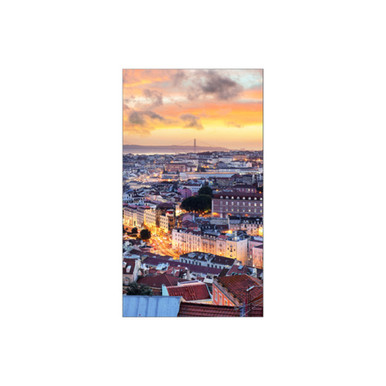

Orientation Landscape/Portrait
Wall mountable Yes
DisplayPorts in 1
RS-232 output ports 1
HDCP Yes

Display
Pixel frequency 78 MHz
Display diagonal 55 “
Display resolution 1920 x 1080 pixels
Display brightness 700 cd/m²
HD type Full HD
Contrast ratio (typical) 1000:1
Contrast ratio (dynamic) 140000:1
Viewing angle, horizontal 178.00 °
Viewing angle, vertical 178.00 °
Pixel pitch 0.63 x 0.63 mm
Display diagonal (metric) 138.000 cm
Display technology LCD
Colour gamut 72.0 %
Aspect ratio 16:9

Ports & interfaces
IR input ports quantity 1
HDMI ports quantity 2
HDMI version 2.0
DVI-D ports quantity 1
Ethernet LAN (RJ-45) ports 1
USB port Yes
Audio input Yes
Audio output Yes
RS-232 input ports 1
DisplayPorts quantity 1
HDMI ports 2
Total number of outputs 4
DVI ports 1
Displayport ports 1

Weight & dimensions
Width 1212.20 mm
Depth 70.40 mm
Height 683.00 mm
Weight 19500.000 g
Package width 1398 mm
Package depth 257 mm
Package height 844 mm
Package weight 27100 g

Power
Power consumption (typical) 250.00 W
AC input voltage 100 – 240 V
AC input frequency 50/60 Hz
Power consumption (sleep) 0.50 W
Operational conditions
Operating temperature (T-T) 0 – 40 °C
Operating relative humidity (H-H) 10 – 90 %

Network
Ethernet LAN Yes

Ergonomics
VESA mounting Yes
Panel mounting interface 600 x 400 mm

Other features
DVI port Yes
Video out Yes
Placement supported Indoor

Design
Product colour Black

Performance
Operating hours (hours/days) 24/7
Vertical scan range 47 – 63 Hz
Horizontal scan range 57.3 – 70 kHz
HDMI input ports quantity 1
Haze rate 28 %
Energy efficiency class (SDR) G
Energy efficiency scale A to G
Energy consumption (SDR) per 1000 hours 145 kWh
Sustainability compliance Yes
Sustainability certificates CB,Federal Communications Commission (FCC)
Response time 0.01 s
HDCP version 2.2
