Audio I/O 1x HDMI Female Output 2x XLR 3-Pin Male Balanced Line Output 2x RCA Female Unbalanced Line Output 8x RCA Female Balanced/Unbalanced Speaker/Subwoofer Output 1x RCA Female S/PDIF OutpuT
Video I/O 1x HDMI Output
Network I/O 1x RJ45 (Control) Input
Supported Disc Types BD-R, BD-RE, BD-ROM, BD25, BD50, CD-DA, CD-R, CD-RW, DVD-R, DVD-ROM, DVD-RW
Audio File Formats AAC, APE, FLAC, MP3, WAV, WMA
Max Supported Storage Capacity SD: 512 GB
Digital Media Slot SD, SDHC, SDXC
Power Consumption 30 W
Frequency Response 20 Hz to 20 kHz 0.5 dB
Dynamic Range 96 dB
Max Output Level 20 dBu (Balanced) 6 dBV (Unbalanced)
I/O Impedance XLR Line Output: 200 Ohms (Balanced) RCA Output: 75 Ohms (Stereo) 210 Ohms (Mono)
Signal to Noise Ratio 96 dB
Maximum Sampling Rate 192 kHz / 24-Bit (PCM)
Total Harmonic Distortion (THD) 0.03%
Bit Depth 16 / 24-Bit
Bit Rates 112 to 320 kb/s (MP3)
Broadcast System NTSC/PAL
USB I/O 1x USB-A (External Memory)
Control I/O 1x DE-9/DB-9RS-232C (Remote)
Bluetooth No
Supported File Systems FAT16, FAT32, NTFS, exFAT
Multi-Channel Audio Decoding Dolby Digital, DTS
Input Power 100 to 240 VAC, 50 / 60 Hz
Operating Conditions 41 to 95 F / 5 to 35 C
Dimensions 19.0 x 1.7 x 11.1″ / 48.3 x 4.4 x 28.1 cm
Weight 5.82 lb / 2.64 kg
Package Weight 9.675 lb
Box Dimensions (LxWxH) 20.9 x 16.1 x 4.6″
The BP-MP1MKII from Tascam is a compact multi-format Blu-ray, DVD, and CD player with SD and USB flash support up to 512GB. Sporting a plethora of analog audio outputs as well as a fully featured HDMI port that supports Dolby Atmos, this player is ideal in wide ranging commercial, home theatre, public, entertainment, and educational applications.
TASCAM BD-MP1 MK II Overview Supports a Wide Range of Disc Formats
The BD-MP1MKII eliminates the need for discrete audio/video playback devices in an installation, offering single-source playback for a wide range of media and file formats, including: Blu-ray (BD25, BD50, BD-ROM, BD-R, and BD-RE), is the ideal single-source playback solution for commercial and residential installations, supporting an extensive range of file formats, including: Video (ASF, MPEG, AV1, 3GP, DAT, MKV, MOV, M2TS, OGM, TP, TS, MP4, and WMV) Image (JPEG, GIF, and PNG)
TASCAM BD-MP1 MK II Overview DVD (DVD-ROM, DVD-R, DVD-RW, DVD+R, and DBD+RW) CD (CD-DA, CD-R, and CD-RW)
Versatile File Format Playback Support Audio (WAV, MP3, WMA, AAC, FLAC, and APE)
The unique Power-on Play feature allows the BD-MP1MKII to start playing desired content immediately on power up, without having to engage the Play feature first. With Repeat Mode set to on, content will automatically start, loop, and play continuously until power is turned off.
Panel Lock for Secure Operation Panel lock, IR, and tray lock functions prevent accidental or user-error operation or alteration of pre-set controls in commercial installations, helping ensure consistent and reliable performance in any installation.
Panel Lock for Secure Operation Hide Menu Function for Elegant Power Up Display Sequence
Panel Lock for Secure Operation The monitor display can be set to show a black screen during start up rather than the manufacturer’s standard factory setup and source select menus, creating an elegant and non-distracting visual start-up environment each time the system is turned on.
Dual USB Memory Ports Two USB Memory Ports, one front panel and one back panel, allow fixed or interchangeable access to USB memory data for playback versatility.
A standard rear panel HDMI output connection provides easy, reliable plug-and-play connection to any HDMI-compatible monitor display or television. In addition to HD video, Dolby Atmos audio can also be output. Versatile I/O
HDMI Output IP and RS-232C Ports for External Remote Control

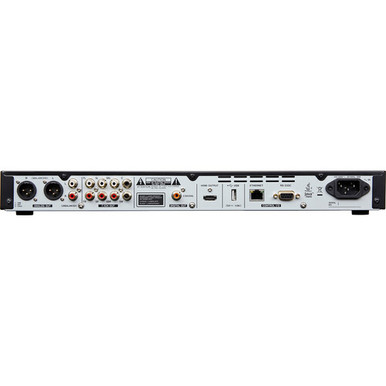

HDMI Output Seamless, reliable two-way device status feedback and control is offered for professional installations via back panel RS-232C and Ethernet connections, enabling the BD-MP1MKII to be integrated into more sophisticated AV setups. Key Specs
Audio I/O 1x HDMI Female Output 2x XLR 3-Pin Male Balanced Line Output 2x RCA Female Unbalanced Line Output 8x RCA Female Balanced/Unbalanced Speaker/Subwoofer Output 1x RCA Female S/PDIF OutpuT
Video I/O 1x HDMI Output Network I/O 1x RJ45 (Control) Input Supported Disc Types
Video I/O BD-R, BD-RE, BD-ROM, BD25, BD50, CD-DA, CD-R, CD-RW, DVD-R, DVD-ROM, DVD-RW
Audio File Formats AAC, APE, FLAC, MP3, WAV, WMA
Max Supported Storage Capacity SD 512 GB Digital Media Slot SD, SDHC, SDXC, 512 GB Supported File Systems FAT16, FAT32, NTFS, exFAT
Power Consumption 30 W Performance Frequency Response 20 Hz to 20 kHz 0.5 dB
Power Consumption 30 W Performance Dynamic Range 96 dB
Power Consumption 30 W Performance Max Output Level 20 dBu (Balanced) 6 dBV (Unbalanced) I/O Impedance XLR Line Output: 200 Ohms (Balanced) RCA Output: 75 Ohms (Stereo) 210 Ohms (Mono)
Signal to Noise Ratio 96 dB Maximum Sampling Rate 192 kHz / 24-Bit (PCM)
Power Consumption 30 W Performance Total Harmonic Distortion (THD) 0.03% Bit Depth 16 / 24-Bit Bit Rates 112 to 320 kb/s (MP3) Broadcast System NTSC/PAL Connectivity
1x USB-A (External Memory) Network I/O 1x RJ45 (Control) Input Control I/O 1x DE-9/DB-9RS-232C (Remote) Bluetooth No Compatibility Supported Disc Types
USB I/O BD-R, BD-RE, BD-ROM, BD25, BD50, CD-DA, CD-R, CD-RW, DVD-R, DVD-ROM, DVD-RW
Multi-Channel Audio Decoding Dolby Digital, DTS Digital Media Slot SD, SDHC, SDXC General
Power Consumption 30 W Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption 30 W Operating Conditions 41 to 95 F / 5 to 35 C Dimensions 19.0 x 1.7 x 11.1″ / 48.3 x 4.4 x 28.1 cm Weight 5.82 lb / 2.64 kg Packaging Info Package Weight 9.675 lb
Power Consumption 30 W Box Dimensions (LxWxH) 20.9 x 16.1 x 4.6″
